DXM700-B1-PTL Banner Sensor Accessories
Part#:DXM700-B1-PTL
Manufacturer:Banner
Alt. Part#:808442
Product Lifecycle:Active
Get a quick Quote!

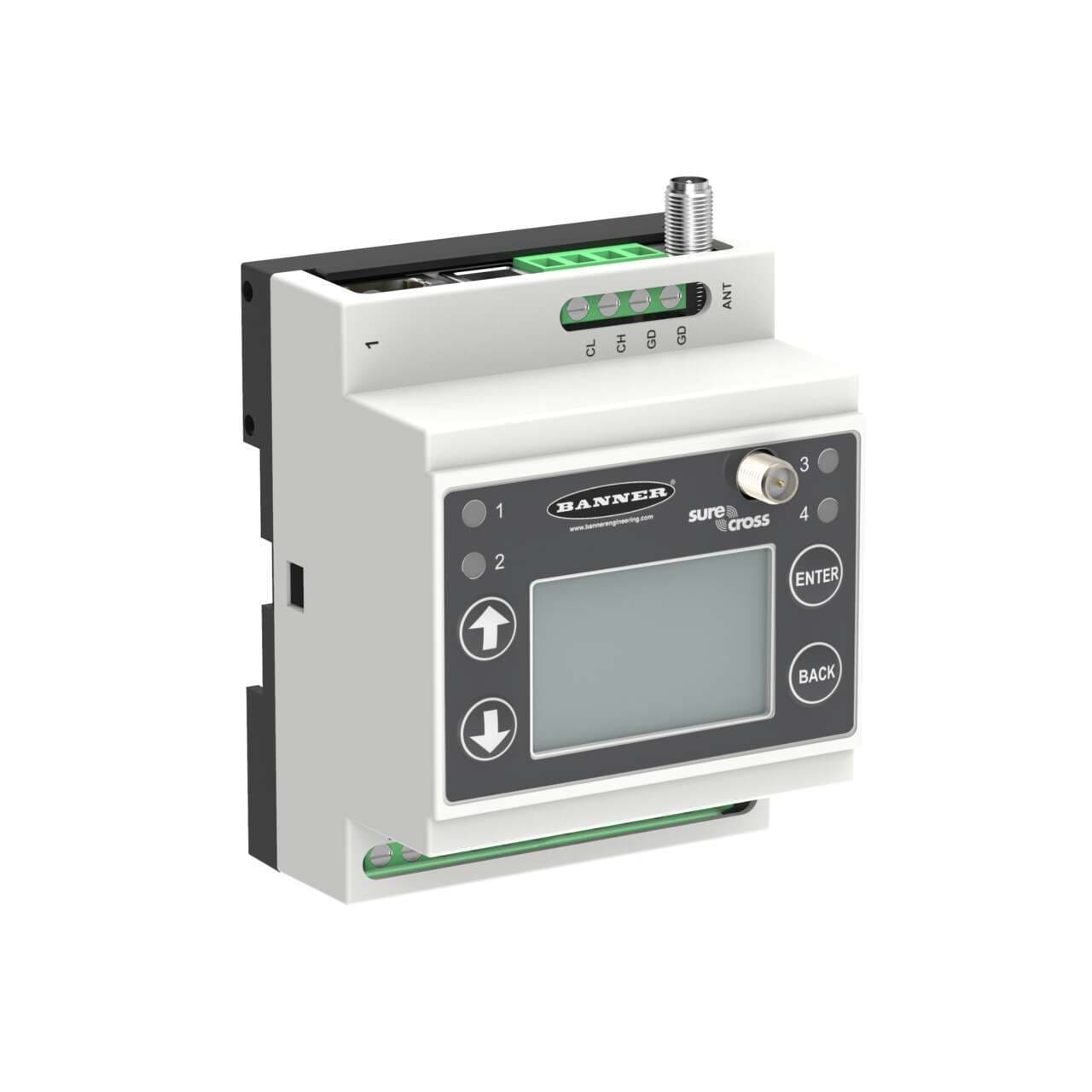

DXM700 Controller; I/O Base Board Only; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB; Preloaded with PTL Script Basic & PTL XML File
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM700-B1-PTL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight317.5144 g
- Country Of OriginUS
- Power Supply 12-30 V dc
- LCD Display Yes
- Power DC
- Output Details 4 PNP
- Star Topology No
- Application: Indicator Light Yes
- Wireless No
- Housing Style External Terminals
- Point-to-Point Topology No
- EtherNet/IP Yes
- RS-232 No
- Environmental Rating (IP) IP20
- On-Board Memory (MB) 16
- Modbus RTU Yes
- Max Temp Operating Conditions 60
- Tree Topology No
- Modbus/TCP Yes
- Relative Humidity 95%
- Feature: Hazardous Area No
- Device Type Controller
- Point-to-Multipoint Topology No
- Input/Output Analog & Discrete
- Min Temp Operating Conditions -20
- Dimension Length (mm) 70
- RS-485 Yes
- Discrete Outputs Yes
- Processing Speed (MHz) 300
- PROFINET Yes
- Application: Pick-to-Light Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM700-B1-PTL Description
Banner Engineering DXM700-B1-PTL is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this part are H58.1mm x W70mm x D94.5mm. It features 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and is equipped with a 300MHz I/O base board only, specifically designed for data aggregation of sensor and wireless networks. This model utilizes Frequency Hopping Spread Spectrum (FHSS) technology and is powered by an M7 processor, pre-programmed for Pick-to-Light integration. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity includes 16MB of on-board memory and an 8GB SD card.
Related documents DXM700-B1-PTL Specs
