2CCP844001R1829 ABB Control Industrial Automation Components

Name: 2CCP844001R1829
Brand: ABB Control

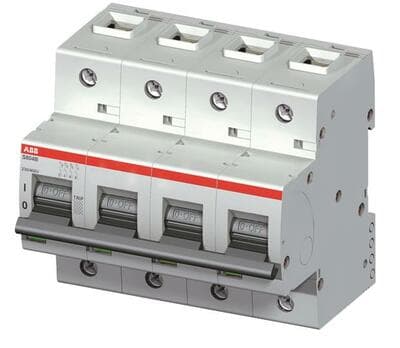

ABB Control 2CCP844001R1829 ABB 2CCP844001R1829 is a Miniature Circuit Breaker (MCB) designed specifically for photovoltaic (PV) or solar DC applications. It features screw-clamp connections for secure installation and is rated for a current of 100A with a maximum DC voltage of 1200Vdc. The device has a net height of 106 mm, a net width accommodating 4-poles (4P), and a rated impulse voltage (Uimp) of 8 kV, ensuring it can handle high-voltage spikes. Its rated insulation voltage (Ui) is 1500 V, with a control voltage for DIN rail mounting. The MCB is designed for 10,000 operations, indicating its durability and longevity in solar energy systems.

Part#:2CCP844001R1829

Manufacturer:ABB Control

Product Lifecycle:Active

Get a quick Quote!

ABB 2CCP844001R1829 is a Miniature Circuit Breaker (MCB) designed specifically for photovoltaic (PV) or solar DC applications. It features screw-clamp connections for secure installation and is rated for a current of 100A with a maximum DC voltage of 1200Vdc. The device has a net height of 106 mm, a net width accommodating 4-poles (4P), and a rated impulse voltage (Uimp) of 8 kV, ensuring it can handle high-voltage spikes. Its rated insulation voltage (Ui) is 1500 V, with a control voltage for DIN rail mounting. The MCB is designed for 10,000 operations, indicating its durability and longevity in solar energy systems.

About the manufacturer: ABB Control is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. ABB's Industrial Automation division offers a variety of solutions designed for process and hybrid industries, including industry-specific integrated automation, electrification, and digital solutions, control technologies, software, and advanced services.

Check out the 2CCP844001R1829 ABB Control price in the box on the right side or send a quick quote.

Product Details

Secondary brand
Stotz
Main function
Miniature Circuit Breaker (MCB)
Ultimate short circuit current breaking capacity (Icu)
5kA (1200Vdc)
Size in modules (1 module = 18mm)
6 Module(s)
Rated impulse voltage (Uimp)
8 kV
Net Height (mm)
95 mm
Primary brand
ABB
Poles
4-poles (4P)
Connection type
Screw-clamp connections
Rated insulation voltage (Ui)
1500 V
Net Width (mm)
106 mm
Functions
Miniature Circuit Breaker (MCB) for photovoltaic (PV) / solar DC applications
Rated current
100A
Mounting mode
DIN rail
Degree of pollution
2
Product series / family name
S800PV series
Service short circuit current breaking capacity (Ics)
5kA (1200Vdc)
Mechanical durability (at no load)
10 000 operations
Net Depth (mm)
82.5 mm
Tripping curve
S

Rated Voltage (DC)

1200Vdc

Compliant with standard(s)

IEC60947-2 EN60947-2

Electrical durability (with load)

10 000 operations

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

1-year warranty
