2CCP842001R1209 ABB Control Industrial Automation Components

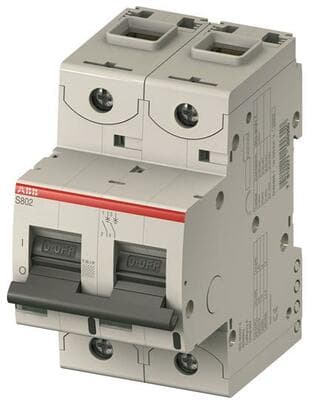

Name: 2CCP842001R1209
Brand: ABB Control

ABB Control 2CCP842001R1209 ABB 2CCP842001R1209 is a Miniature Circuit Breaker (MCB) designed specifically for photovoltaic (PV) or solar DC applications. It features screw-clamp connections for secure installation and is rated for a current of 20A with a maximum DC voltage of 800Vdc. This MCB has a net height of 8 kV and a rated impulse voltage (Uimp) of 54 mm, indicating its robustness against voltage spikes. It is designed with 2 poles (2P) and has a net width of 82.5 mm, making it suitable for standard DIN rail mounting. The protection functions are rated for 1500 V, with a rated insulation voltage (Ui) that supports efficient operation. The control voltage is AC, and it is built to withstand up to 10,000 operations, showcasing its durability. This part does not feature analog outputs or specify a secondary current, focusing solely on its primary function as a circuit breaker for solar DC circuits.

Part#:2CCP842001R1209

Manufacturer:ABB Control

Product Lifecycle:Active

Get a quick Quote!

ABB 2CCP842001R1209 is a Miniature Circuit Breaker (MCB) designed specifically for photovoltaic (PV) or solar DC applications. It features screw-clamp connections for secure installation and is rated for a current of 20A with a maximum DC voltage of 800Vdc. This MCB has a net height of 8 kV and a rated impulse voltage (Uimp) of 54 mm, indicating its robustness against voltage spikes. It is designed with 2 poles (2P) and has a net width of 82.5 mm, making it suitable for standard DIN rail mounting. The protection functions are rated for 1500 V, with a rated insulation voltage (Ui) that supports efficient operation. The control voltage is AC, and it is built to withstand up to 10,000 operations, showcasing its durability. This part does not feature analog outputs or specify a secondary current, focusing solely on its primary function as a circuit breaker for solar DC circuits.

About the manufacturer: ABB Control is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. ABB's Industrial Automation division offers a variety of solutions designed for process and hybrid industries, including industry-specific integrated automation, electrification, and digital solutions, control technologies, software, and advanced services.

Check out the 2CCP842001R1209 ABB Control price in the box on the right side or send a quick quote.

Product Details

Rated current
20A
Primary brand
ABB
Connection type
Screw-clamp connections
Ultimate short circuit current breaking capacity (Icu)
5kA (800Vdc)
Main function
Miniature Circuit Breaker (MCB)
Secondary brand
Stotz
Poles
2-poles (2P)
Product series / family name
S800PV series
Rated Voltage (DC)
800Vdc
Size in modules (1 module = 18mm)
3 Module(s)
Electrical durability (with load)
10 000 operations
Net Width (mm)
54 mm
Functions
Miniature Circuit Breaker (MCB) for photovoltaic (PV) / solar DC applications
Tripping curve
S
Compliant with standard(s)
IEC60947-2 EN60947-2
Degree of pollution
2
Service short circuit current breaking capacity (Ics)
5kA (800Vdc)
Mechanical durability (at no load)
10 000 operations
Mounting mode
DIN rail
Rated impulse voltage (Uimp)
8 kV

Rated insulation voltage (Ui)

1500 V

Net Height (mm)

95 mm

Net Depth (mm)

82.5 mm

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of ABB Control

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ
