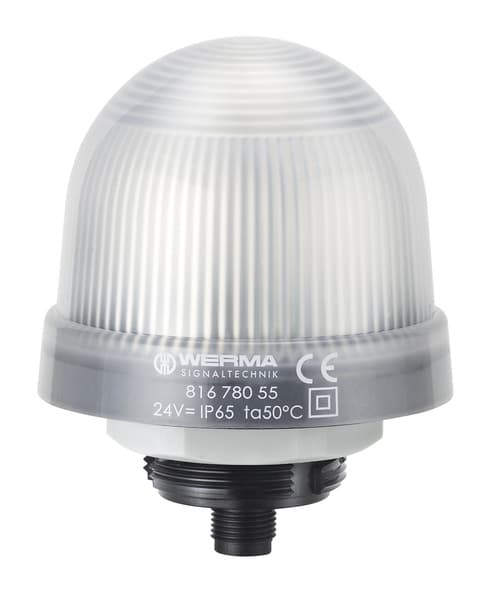

816.780.55 Werma Signal Beacons
Part#:816.780.55
Manufacturer:Werma
Product Lifecycle:Active
Get a quick Quote!
LED Perm. Beacon EM 24VDC MC
About the manufacturer: Werma is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. WERMA's products and solutions ensure process safety and efficiency. This allows you to continuously optimize operations, saving both time and money. For years, customers across various industries worldwide have benefited from our expertise. Simply put, we provide smart solutions that deliver results.
Check out the 816.780.55 Werma price in the box on the right side or send a quick quote.
Product Details
- Materials PC
- Operating voltage type DC
- Light source In the connection area: 2
- UL Type Rating cULus
- Working temperature maximum +50°C
- Product weight 110 g
- Optical signal image MC 7 colours
- Conforms with AS-I Yes
- Type of fixing Built-in mounting
- Operating voltage 24V
- Light colour LED
- Conforms with IC No
- Diameter 75 mm
- Rated operational voltage 24 VDC
- Conforms with CE 50,000 h maximum
- Conforms with CCC No
- Working temperature minimum -20°C
- Weight with packaging 132 g
- Rated operational current 120 mA
- Service life optical Permanent
- Conforms with FCC Type 12
- ICAO Certification No
- Connection M12 plug 4-pole
- Operating voltage tolerance +/- 10%
- Protection class Protection class 2
- Conform with ATEX-directive Yes
- EAC certificate available No
- Tension relief Present (conforms to VDE)
- Height 97 mm
- Rated inrush current 500 mA
- WEEE Yes
- Conforms with GL No
- Protection category IP65
- Dome colour Clear
- Pollution degree 3
- Conforms with UL No
- Conforms with RoHS CN No
- Conforms with VdS No
