656.000.55 Werma Buzzers
Part#:656.000.55
Manufacturer:Werma
Product Lifecycle:Active
Get a quick Quote!

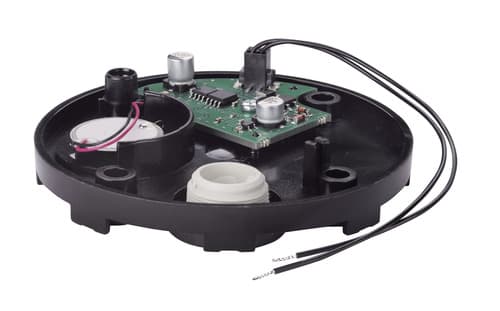

Buzzer module BM Contin. tone 24VDC
About the manufacturer: Werma is one of the manufacturers that offers Buzzers that you can order at marketplace.quotebeam.com. WERMA's products and solutions ensure process safety and efficiency. This allows you to continuously optimize operations, saving both time and money. For years, customers across various industries worldwide have benefited from our expertise. Simply put, we provide smart solutions that deliver results.
Check out the 656.000.55 Werma price in the box on the right side or send a quick quote.
Product Details
- Materials PC/ABS
- cross-sectional area minimum 0,14mm² / 26AWG
- cross-sectional area maximum 0,50mm² / 20AWG
- Type of fixing Base mounting
- Rated operational voltage 24 VDC
- Pollution degree 3
- Acoustic service life 5,000 h minimum
- Conforms with CCC No
- Conforms with AS-I No
- Protection category IP66
- Diameter 85 mm
- Weight with packaging 56 g
- Operating voltage 24V
- Protection class Protection class 2
- Conforms with CE Yes
- Conforms with FCC No
- Conforms with RoHS CN No
- Housing colour Black
- Connection Cable
- Cable entry minimum d = 1 mm
- Product weight 30 g
- Operating voltage tolerance +/- 10%
- Rated inrush current 500 mA
- Audio frequency 4400 Hz
- Conform with ATEX-directive No
- EAC certificate available Yes
- Conforms with GL No
- Height 19 mm
- Cable entry Membrane grommet
- Working temperature maximum +50°C
- Operating voltage type DC
- Acoustic signal image Continuous tone
- WEEE Yes
- Conforms with UL No
- ICAO Certification No
- Cable entry maximum d = 9 mm
- Working temperature minimum -20°C
- Rated operational current 40 mA
- Volume (max) at 1m distance 85,0 dB (A)
- Conforms with RED directive No
- Conforms with IC No
- Conforms with VdS No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
