E01836EP3YAX160LF3-W WEG AC Motors
Part#:E01836EP3YAX160LF3-W
Manufacturer:WEG
Alt. Part#:7909018368443
Product Lifecycle:Active
Get a quick Quote!

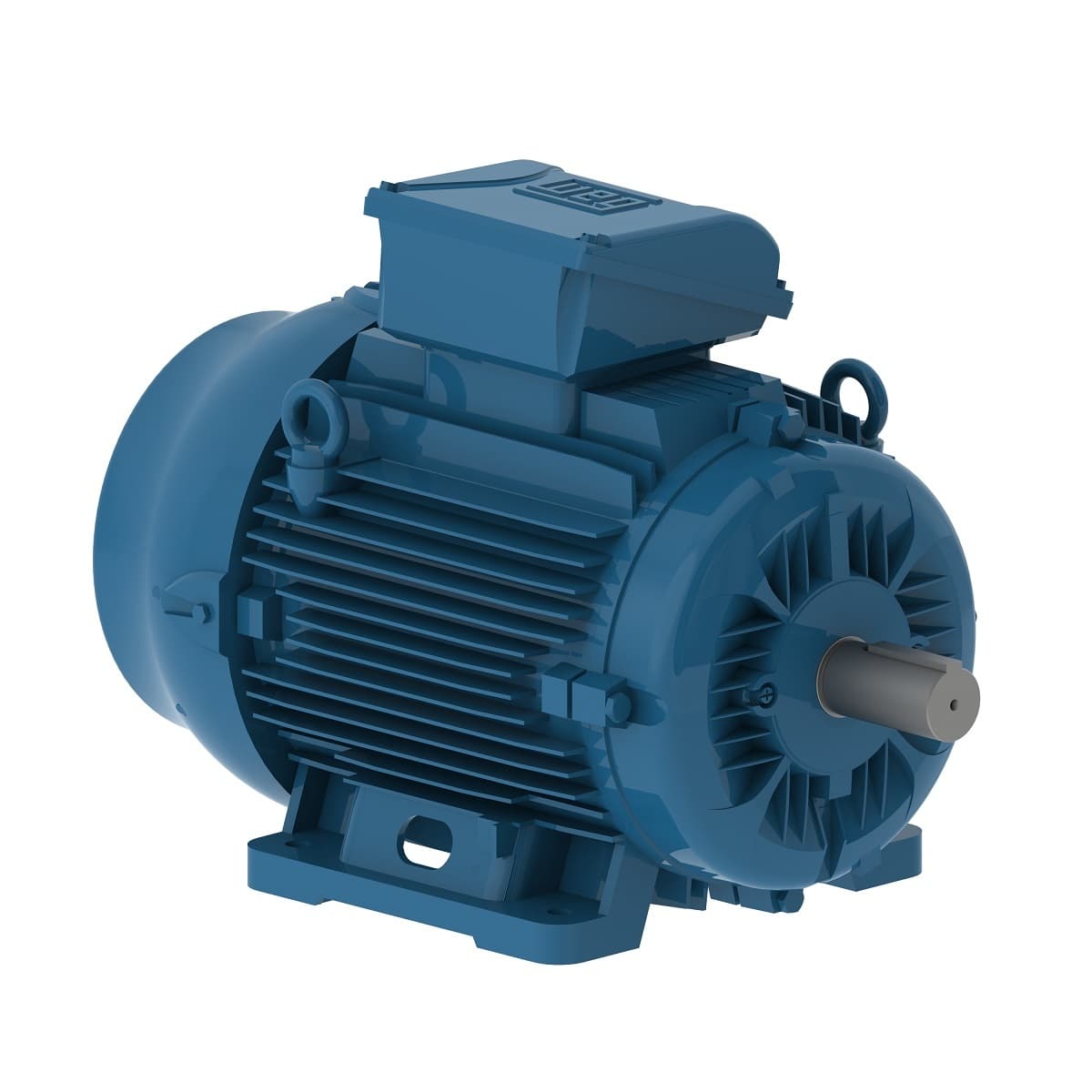

W22 IE3 18.5 kW 2P 160L 3Ph 380-415/660//440-460 V 50 Hz IC411 - TEFC - B3T
Check out the E01836EP3YAX160LF3-W WEG price in the box on the right side or send a quick quote.
Product Details
- Rated Speed2945 rpm
- Number of Poles2 Pole
- Voltage380/660 V
- Flange TypeWithout
- Output Rating18.5 KW
- Frequency 50 Hz
- Design N
- Starting Method Direct On Line
- Number of Poles 2
- Rated torque 44.3 ft.lb
- Duty Cycle S1
- Noise level² 67.0 dB(A)
- LRC 8.4
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 288/166 A
- Locked rotor time 14s (cold) 8s (hot)
- Standard IEC 60034-1
- Synchronous speed 3000 rpm
- No load current 13.5/7.77 A
- Temperature rise 80 K
- Voltage 380-415/660//440-460 V
- Rated speed 2945 rpm
- Locked rotor torque 250 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Slip 1.83 %
- Moment of inertia (J) 1.32 sq.ft.lb
- Degree of Protection IP55
- Output 18.5 kW (25 HP)
- Breakdown torque 320 %
- Enclosure IC411 - TEFC
- Terminal box¹ Top
- Rated voltage 380/660 V
- Service factor 1.00
- Mounting B3T
- Frame 160L
- Rated current 34.3/19.8 A
- Ambient temperature -20°C to +40°C
- Approx. weight³ 315 lb
- Output rating 18.5 kW
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents E01836EP3YAX160LF3-W Specs
