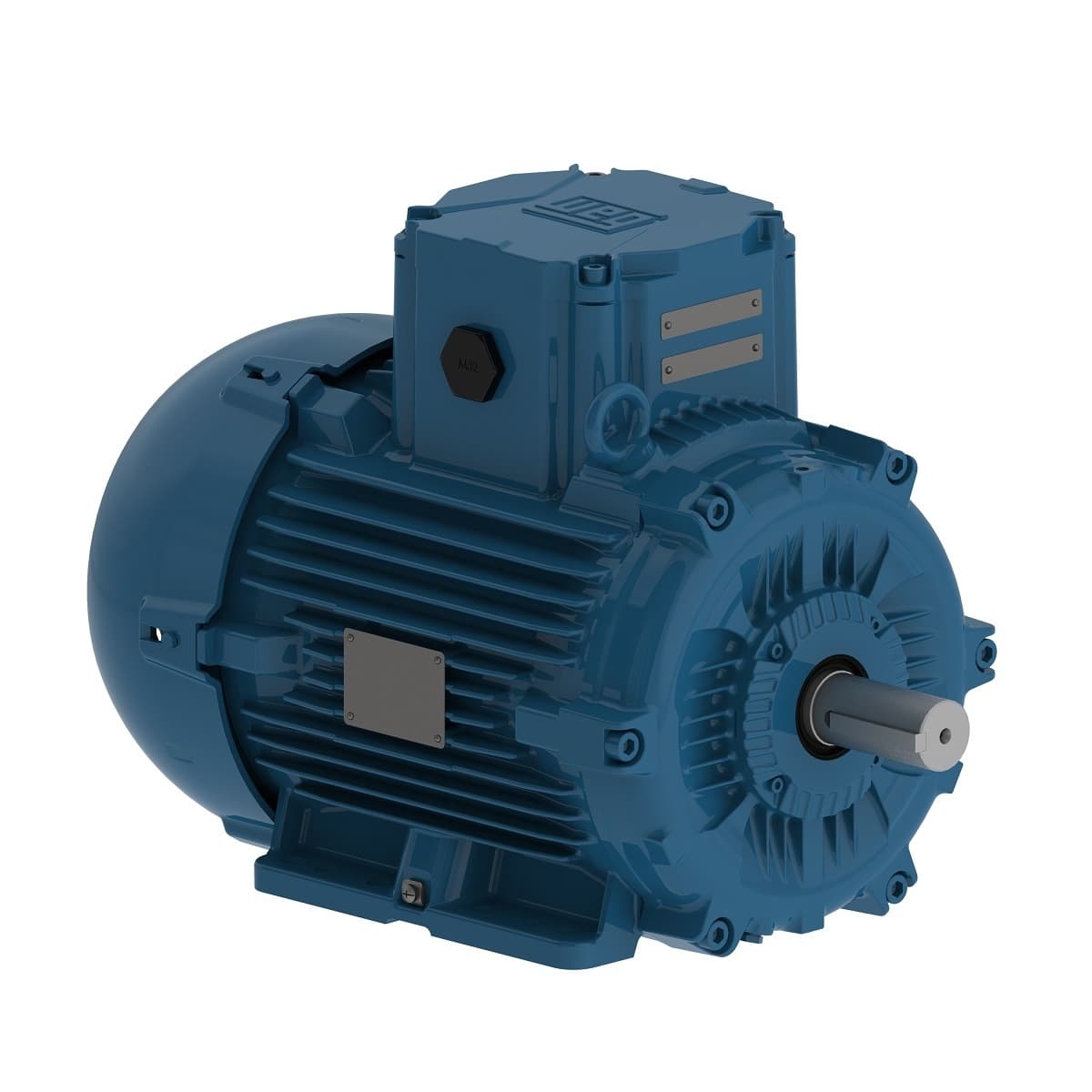

E00512XT3YAX132MF3-W WEG AC Motors
Part#:E00512XT3YAX132MF3-W
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22Xdb IE3 5.5 kW 6P 132S/M 3Ph 380-400-415/660-690 V 50 Hz IC411 - TEFC - B3T
Check out the E00512XT3YAX132MF3-W WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 380-400-415/660-690 V
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Standard IEC 60034-1
- L. R. Amperes 99.1-94.2-90.8/57.1-54.6 A
- Locked rotor time 46s (cold) 26s (hot)
- Noise level² 53.0 dB(A)
- Number of Poles 6
- Design N
- Mounting B3T
- Synchronous speed 1000 rpm
- Frequency 50 Hz
- Breakdown torque 280 %
- Enclosure IC411 - TEFC
- Frame 132S/M
- LRC 7.3
- Starting Method Direct On Line
- Flange Without
- Rated speed 970 rpm
- Rated torque 40.0 ft.lb
- Approx. weight³ 261 lb
- Terminal box¹ Top
- No load current 8.00-7.60-7.33/4.61-4.41 A
- Insulation Class F
- Degree of Protection IP56
- Output 5.5 kW (7.5 HP)
- Duty Cycle S1
- Output rating 5.5 kW
- Slip 3.00 %
- Locked rotor torque 260 %
- Ambient temperature -20°C to +40°C
- Voltage 380-400-415/660-690 V
- Rated current 13.6-12.9-12.4/7.82-7.48 A
- Moment of inertia (J) 1.79 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents E00512XT3YAX132MF3-W Specs
