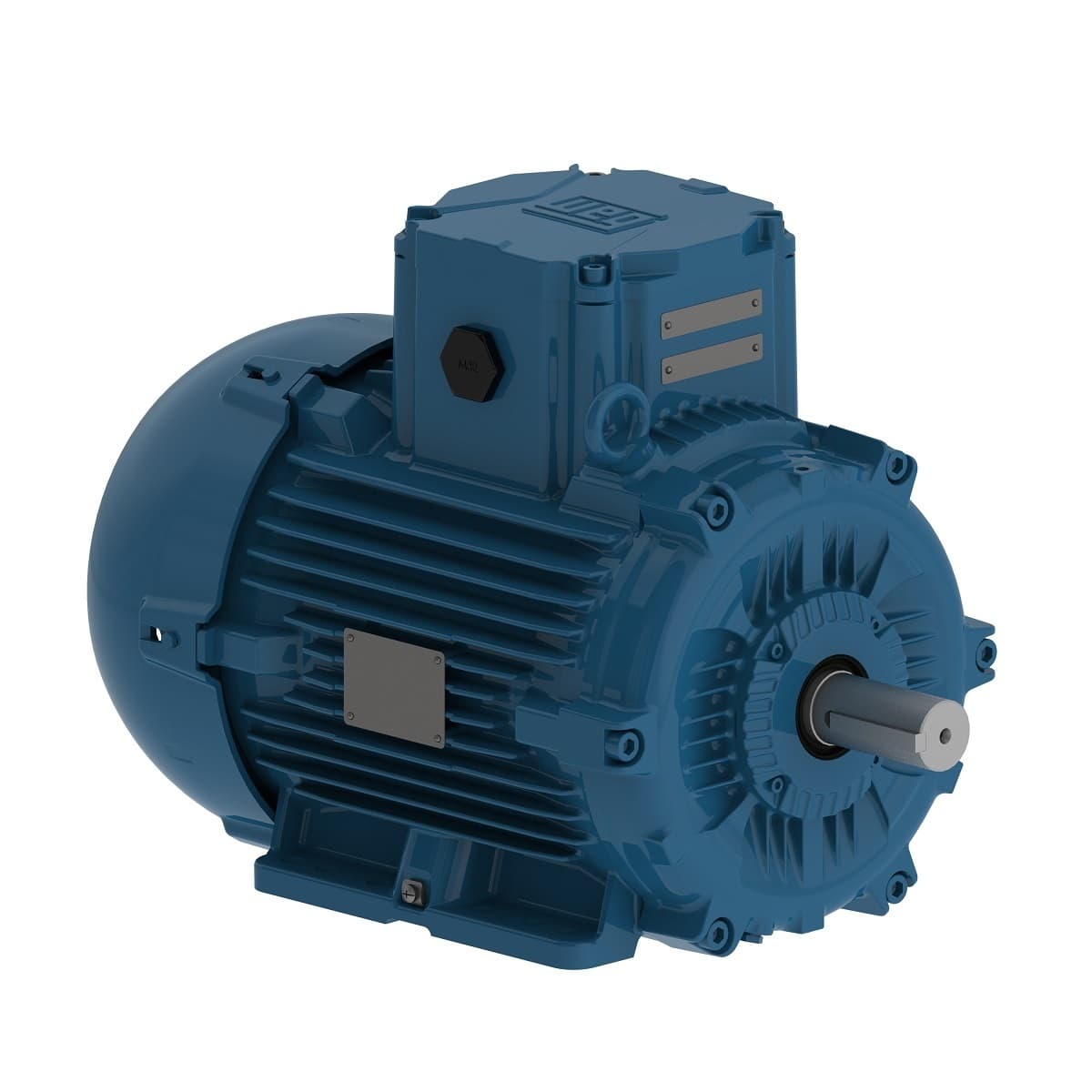

E00436XP3YAX112MF3-W WEG AC Motors
Part#:E00436XP3YAX112MF3-W
Manufacturer:WEG
Alt. Part#:7909322476599
Product Lifecycle:Active
Get a quick Quote!
W22Xdb IE2 4 kW 2P 112M 3Ph 380-415/660//460 V 50 Hz IC411 - TEFC - B3T
Check out the E00436XP3YAX112MF3-W WEG price in the box on the right side or send a quick quote.
Product Details
- Rated Speed2875 rpm
- Number of Poles2 Pole
- Voltage380/660 V
- Flange TypeWithout
- Output Rating4 KW
- Rated speed 2875 rpm
- No load current 2.60/1.50 A
- Mounting B3T
- Voltage 380-415/660//460 V
- Moment of inertia (J) 0.2079 sq.ft.lb
- Number of poles 2
- L. R. Amperes 52.7/30.4 A
- Noise level² 64.0 dB(A)
- Temperature rise 80 K
- Flange Without
- Frame 112M
- Number of Poles 2
- Degree of Protection IP56
- Enclosure IC411 - TEFC
- Synchronous speed 3000 rpm
- Slip 4.17 %
- Breakdown torque 250 %
- Insulation Class F
- Terminal box¹ Top
- Output 4 kW (5.5 HP)
- Design N
- Approx. weight³ 157 lb
- Rotation¹ Both (CW and CCW)
- Frequency 50 Hz
- Duty Cycle S1
- Standard IEC 60034-1
- Rated current 7.87/4.53 A
- LRC 6.7
- Locked rotor time 18s (cold) 10s (hot)
- Altitude 1000 m.a.s.l.
- Rated torque 9.81 ft.lb
- Starting Method Direct On Line
- Rated voltage 380/660 V
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Output rating 4 kW
