35018OP3GFP447/9TSW4 WEG AC Motors
Part#:35018OP3GFP447/9TSW4
Manufacturer:WEG
Alt. Part#:7909492116622
Product Lifecycle:Active
Get a quick Quote!

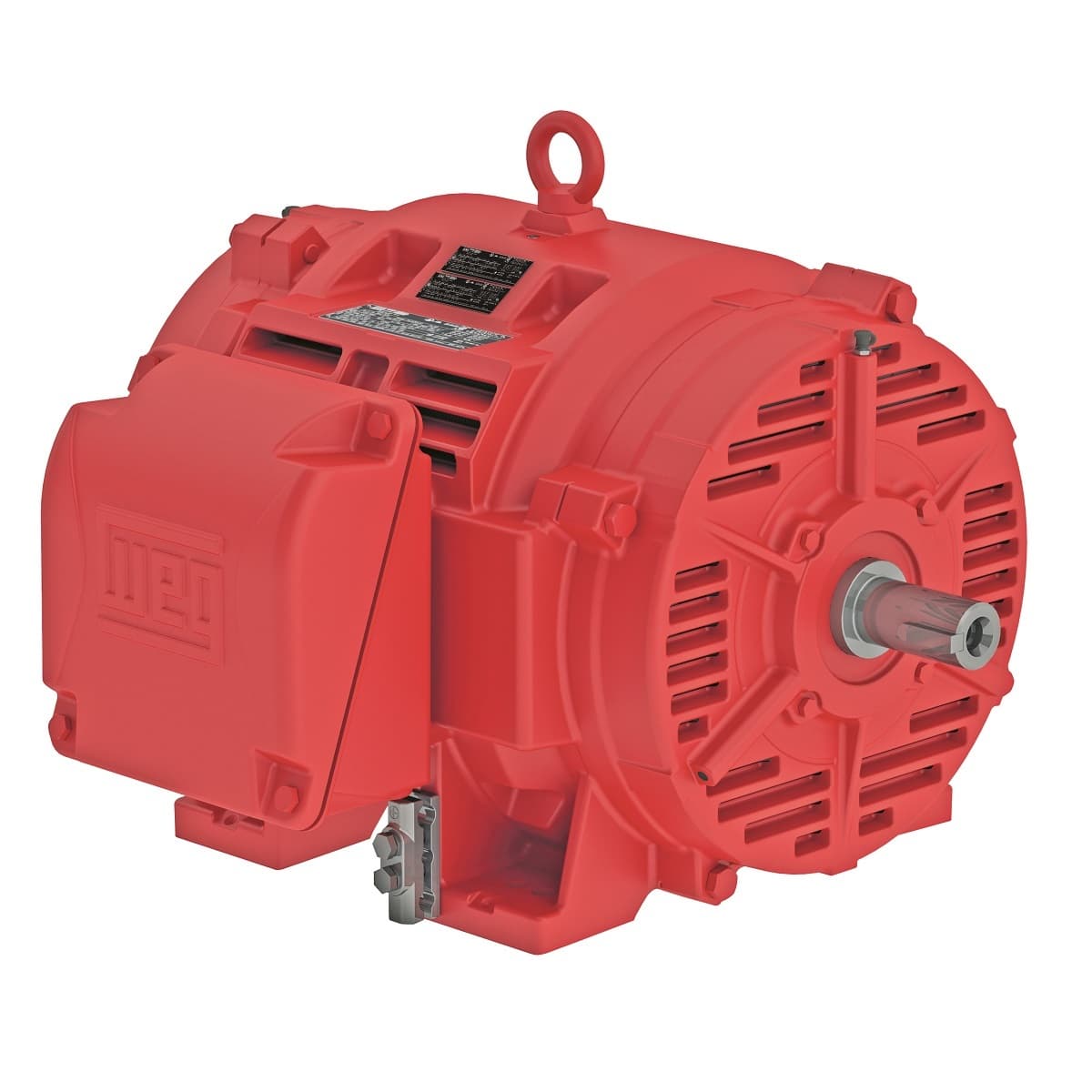

W40 High Efficiency 350 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 35018OP3GFP447/9TSW4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating350 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 1780 rpm
- Breakdown torque 260 %
- Voltage 460 V
- Rated current 393 A
- Service factor 1.15
- Standard NEMA MG-1
- Slip 1.11 %
- Locked rotor torque 240 %
- Degree of Protection IP23
- Terminal box¹ Left position
- Number of Poles 4
- Altitude 1000 m.a.s.l.
- Approx. weight³ 2111 lb
- Frequency 60 Hz
- Rated torque 1030 ft.lb
- Ambient temperature -20°C to +40°C
- Noise level² 77.0 dB(A)
- L. R. Amperes 2358 A
- No load current 102 A
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Frame 447/9TS
- Design B
- Rotation¹ Both (CW and CCW)
- Output 350 HP (260 kW)
- Locked rotor time 18s (cold) 10s (hot)
- Temperature rise 80 K
- Enclosure IC01 - ODP
- Flange Without
- LRC 6.0x(Code F)
- Moment of inertia (J) 66.1 sq.ft.lb
- Number of poles 4
- Rated voltage 460 V
- Insulation Class F
- Duty Cycle Cont.(S1)
- Mounting F-1
- Output rating 350 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 35018OP3GFP447/9TSW4 Specs
