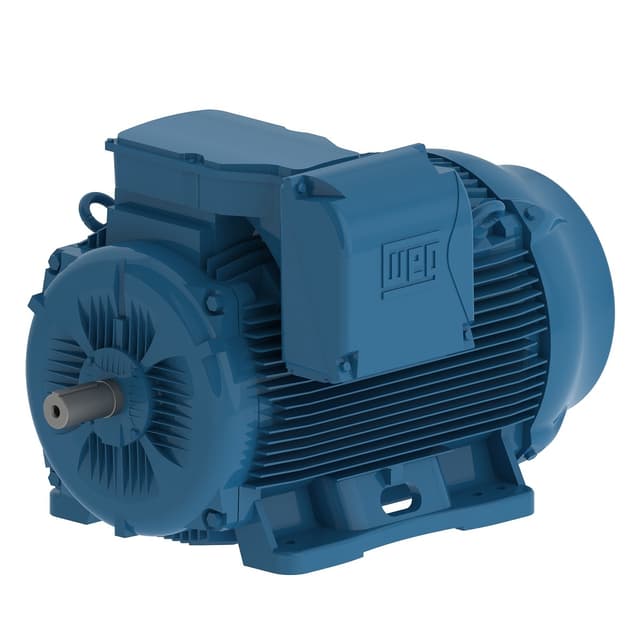

18518EG3Y315L-W22 WEG AC Motors
Part#:18518EG3Y315L-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 Tru-Metric IE4 250 HP 4P 315L 3Ph 460//380-400-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 18518EG3Y315L-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 250 HP (185 kW)
- LRC 7.1
- Starting Method Direct On Line
- Output rating 250 HP
- Frequency 50 Hz
- Service factor 1.00
- Approx. weight³ 2723 lb
- Voltage 460//380-400-415 V
- Rated current 338 A
- Insulation Class F
- Noise level² 73.0 dB(A)
- Slip 0.87 %
- Moment of inertia (J) 110 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- Number of Poles 4
- Rated torque 883 ft.lb
- Duty Cycle S1
- Standard NEMA MG-1
- Rated speed 1487 rpm
- Breakdown torque 250 %
- Enclosure IC411 - TEFC
- Flange Without
- Frame 315L
- No load current 108 A
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Rated voltage 380 V
- Design NE
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 2400 A
- Locked rotor time 66s (cold) 37s (hot)
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Locked rotor torque 260 %
- Temperature rise 80 K
- Mounting B3L(E)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 18518EG3Y315L-W22 Specs
1-year warranty
