13202801 WEG AC Motors
Part#:13202801
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

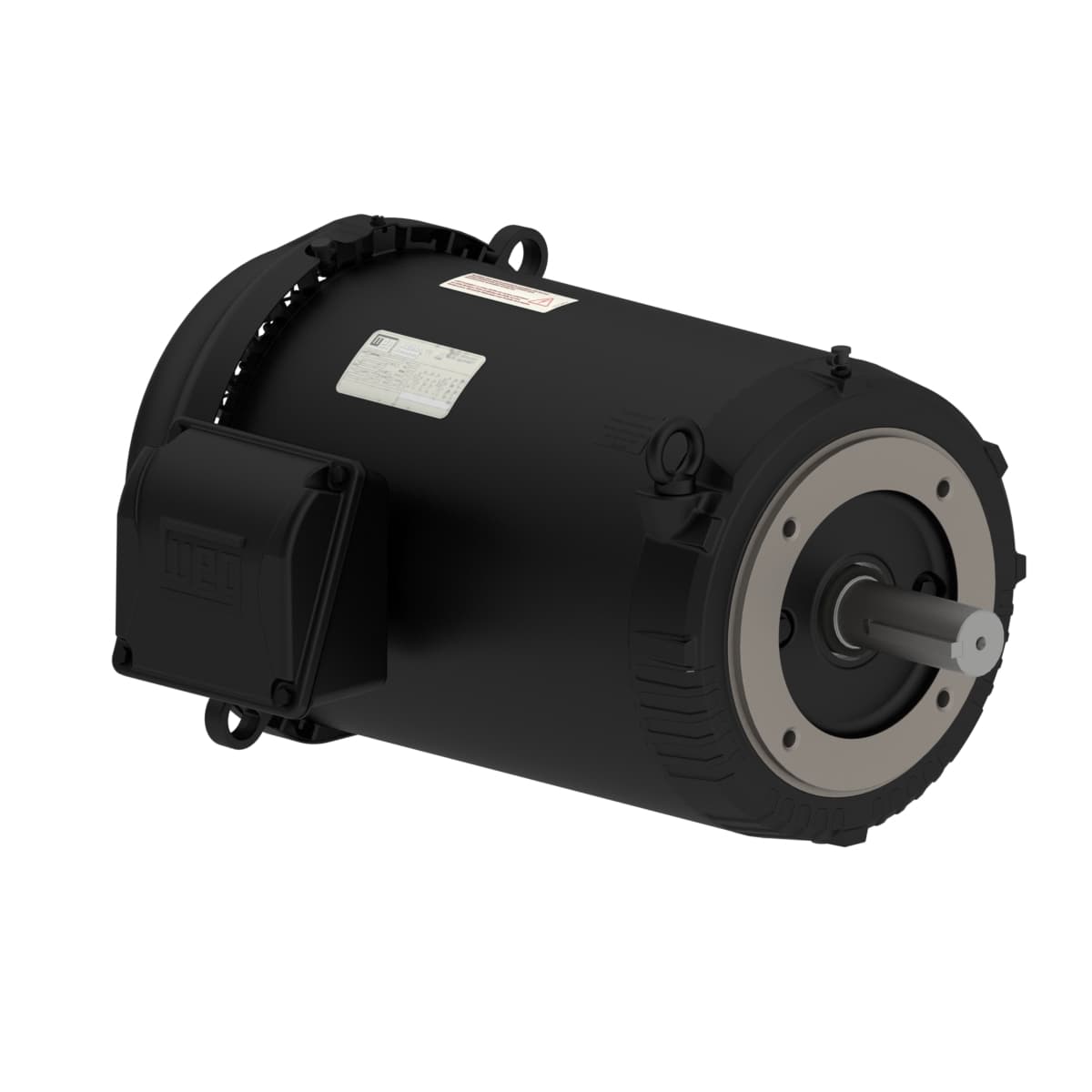

Rolled Steel High Efficiency 10 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 13202801 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1175 rpm
- Rated torque 44.7 ft.lb
- Enclosure IC411 - TEFC
- Slip 2.08 %
- Breakdown torque 240 %
- Mounting F-1
- Rated voltage 230/460 V
- Design B
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- No load current 15.0/7.50 A
- Starting Method Direct On Line
- Approx. weight³ 208 lb
- Terminal box¹ Left position
- Rated current 28.0/14.0 A
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Output rating 10 HP
- L. R. Amperes 154/77.0 A
- LRC 5.5x(Code G)
- Noise level² 59.0 dB(A)
- Frame 254/6TC
- Insulation Class F
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Locked rotor time 36s (cold) 20s (hot)
- Temperature rise 80 K
- Number of poles 6
- Flange C
- Number of Poles 6
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Output 10 HP (7.5 kW)
- Moment of inertia (J) 2.17 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 13202801 Specs
