12894737 WEG AC Motors
Part#:12894737
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

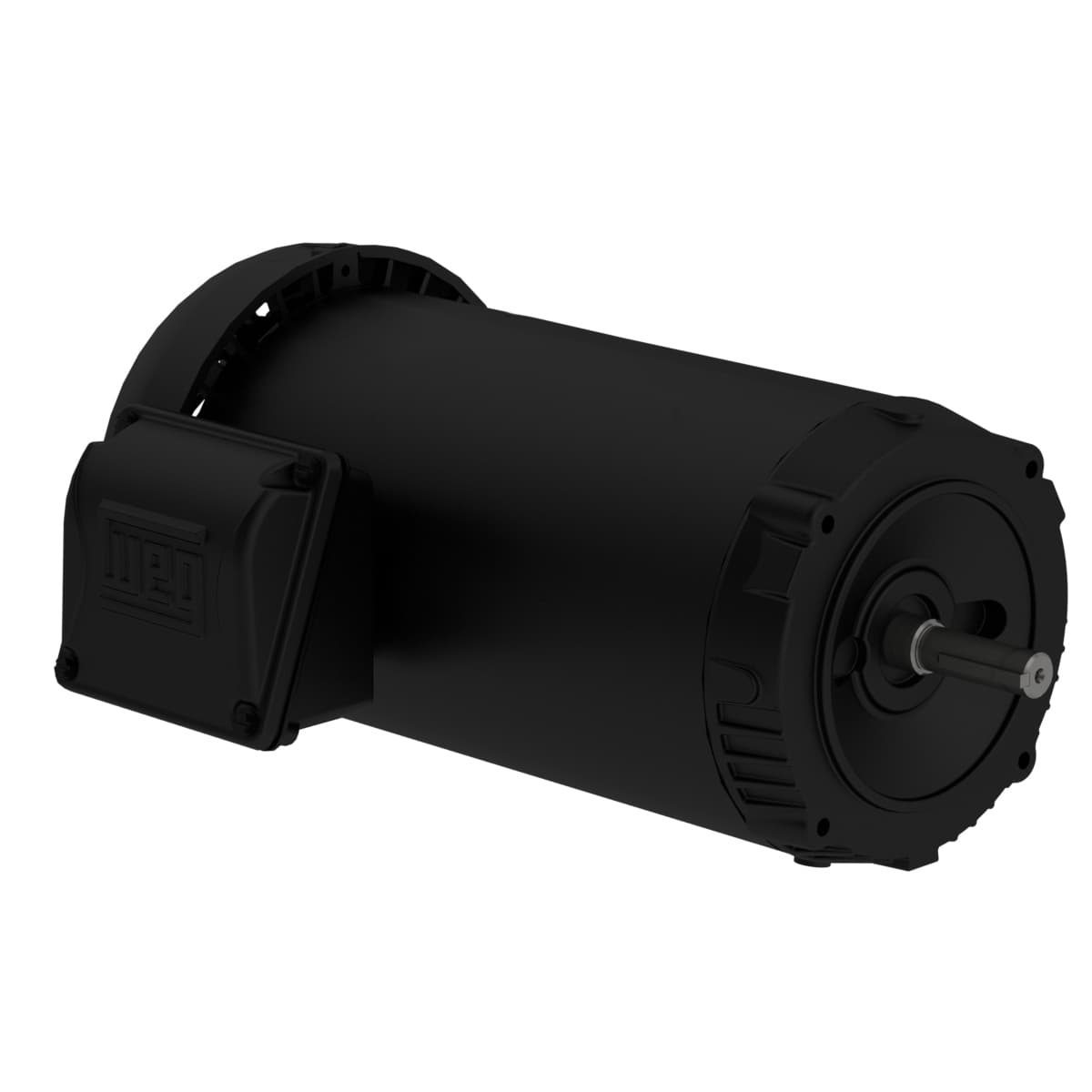

Rolled Steel Standard Efficiency 3 HP 2P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 12894737 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 230/460 V
- L. R. Amperes 63.9/32.0 A
- No load current 2.80/1.40 A
- Slip 3.33 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Frequency 60 Hz
- Design A
- Noise level² 68.0 dB(A)
- Frame 56C
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- LRC 8.5x(Code K)
- Rated torque 4.53 ft.lb
- Enclosure IC411 - TEFC
- Flange C
- Rated speed 3480 rpm
- Locked rotor time 10s (cold) 6s (hot)
- Duty Cycle Cont.(S1)
- Voltage 230/460//190-220/380-415 V
- Rated current 7.52/3.76 A
- Insulation Class F
- Mounting F-1
- Number of poles 2
- Output 3 HP (2.2 kW)
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 38.9 lb
- Locked rotor torque 270 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Moment of inertia (J) 0.1279 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 3 HP
- Degree of Protection IP55
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12894737 Specs
1-year warranty
