12382815 WEG AC Motors
Part#:12382815
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

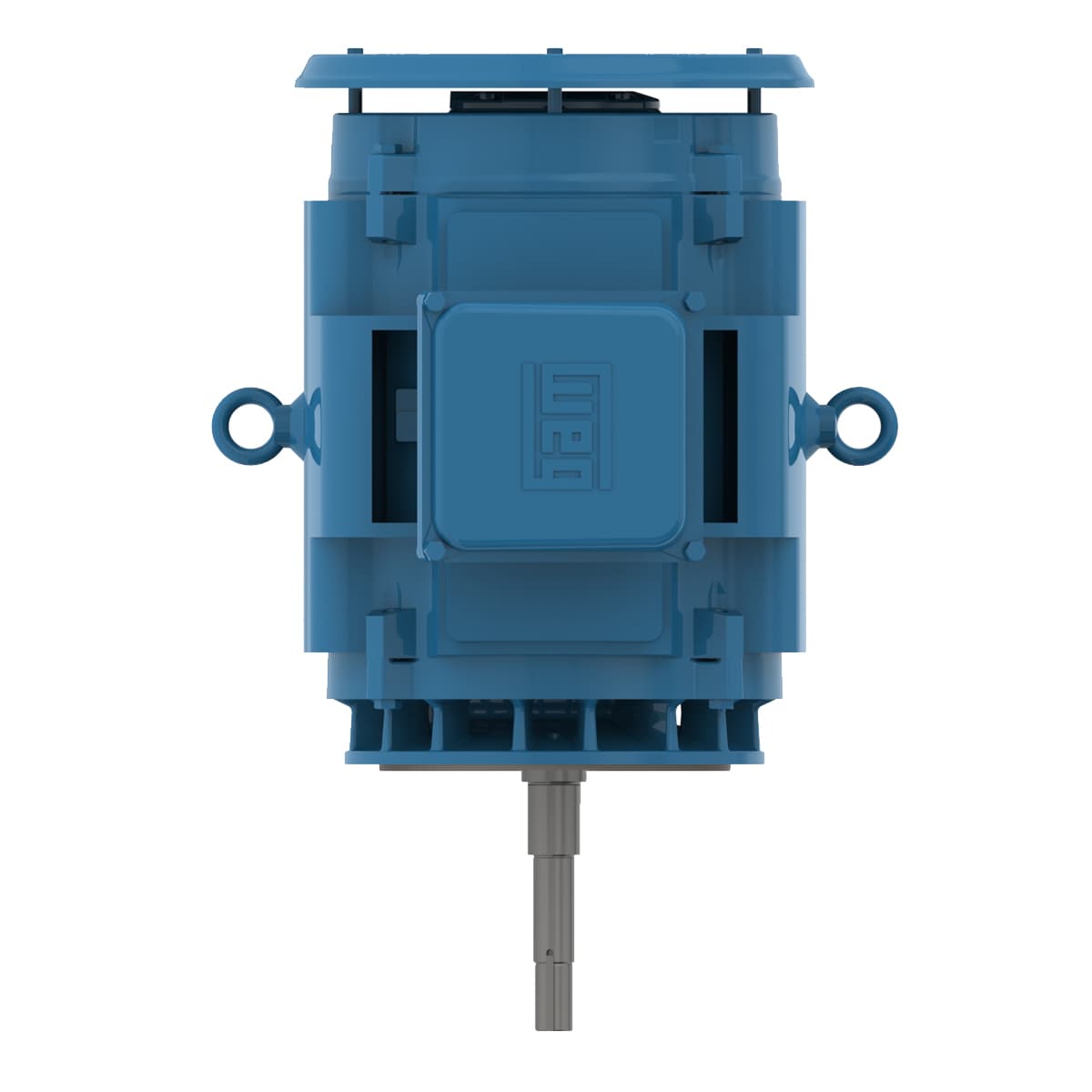

Close Coupled Pump High Efficiency 100 HP 4P 404/5JP 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 12382815 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 200/400 V
- Moment of inertia (J) 18.3 sq.ft.lb
- Temperature rise 105 K
- Number of poles 4
- L. R. Amperes 1628/814 A
- Breakdown torque 250 %
- Noise level² 69.0 dB(A)
- Terminal box¹ Left position
- Number of Poles 4
- Design B
- Enclosure IC01 - ODP
- Slip 1.39 %
- LRC 6.0x(Code G)
- Duty Cycle Cont.(S1)
- Output 100 HP (75 kW)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Frame 404/5JP
- Service factor 1.15
- Degree of Protection IP23
- Flange C
- No load current 82.8/41.4 A
- Mounting W-6
- Approx. weight³ 869 lb
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Output rating 100 HP
- Rated speed 1775 rpm
- Rated torque 296 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 271/136 A
- Locked rotor time 18s (cold) 10s (hot)
- Starting Method Direct On Line
- Voltage 200/400 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12382815 Specs
1-year warranty
