12324563 WEG AC Motors
Part#:12324563
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

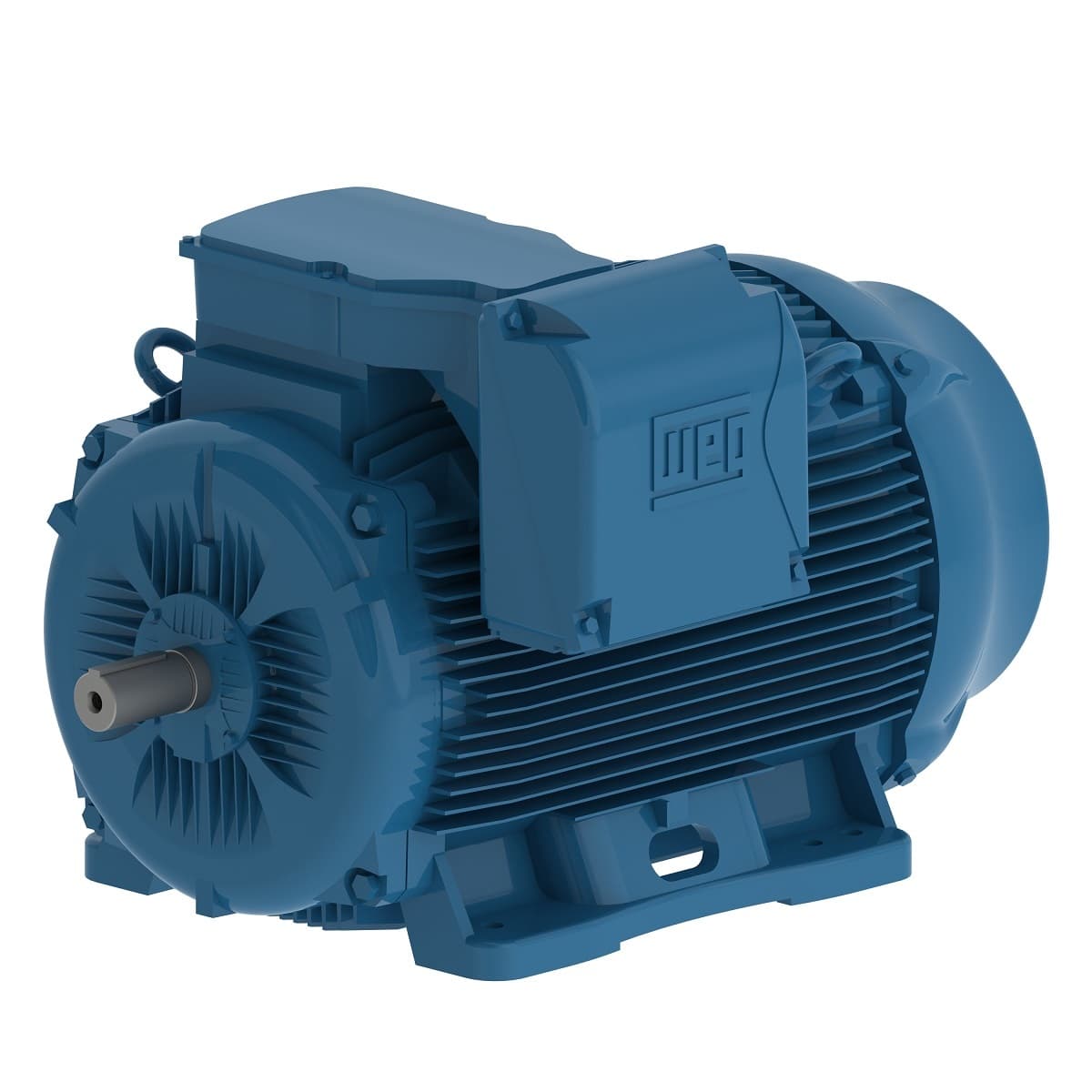

W22 Tru-Metric IE2 250 HP 4P 315S/M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 12324563 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1485 rpm
- Frequency 50 Hz
- Locked rotor time 32s (cold) 18s (hot)
- Rated current 338 A
- Ambient temperature -20°C to +40°C
- Rated voltage 380 V
- Locked rotor torque 210 %
- Standard NEMA MG-1
- Slip 1.00 %
- No load current 102 A
- Altitude 1000 m.a.s.l.
- Voltage 460//380-415 V
- Output 250 HP (185 kW)
- Breakdown torque 220 %
- Mounting B3L(E)
- Flange Without
- Number of Poles 4
- Insulation Class F
- Approx. weight³ 2569 lb
- LRC 6.8
- Design N
- Temperature rise 80 K
- Output rating 250 HP
- Moment of inertia (J) 65.9 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Frame 315S/M
- Starting Method Direct On Line
- Degree of Protection IP55
- Noise level² 71.0 dB(A)
- Terminal box¹ Right position
- L. R. Amperes 2298 A
- Rated torque 884 ft.lb
- Duty Cycle S1
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12324563 Specs
1-year warranty
