11523575 WEG AC Motors
Part#:11523575
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

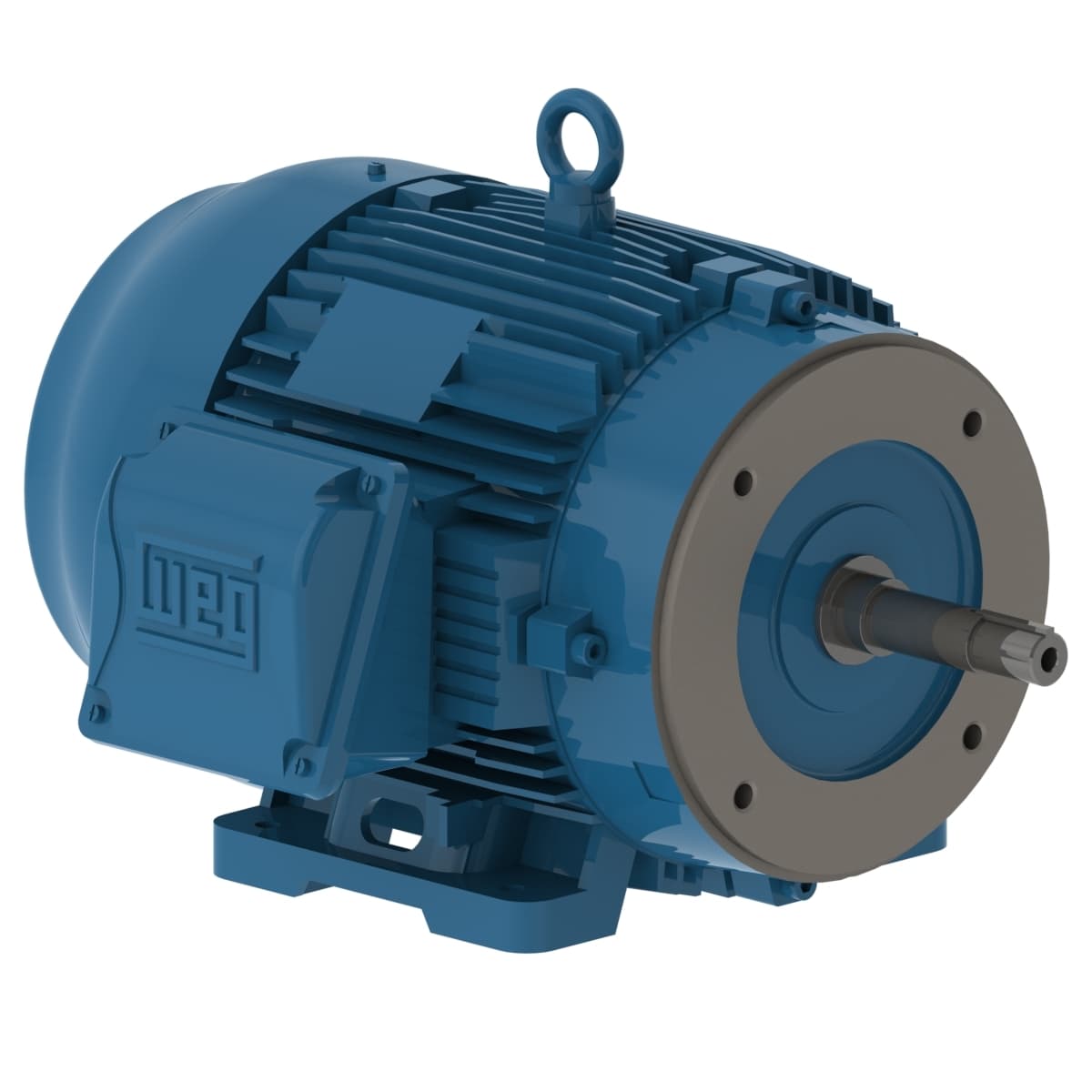

W22 Close Coupled Pump JM High Efficiency 10 HP 4P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 11523575 WEG price in the box on the right side or send a quick quote.
Product Details
- Temperature rise 80 K
- Frequency 60 Hz
- Design B
- Rated voltage 230/460 V
- Moment of inertia (J) 1.16 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.5x(Code H)
- Breakdown torque 250 %
- Approx. weight³ 174 lb
- Output rating 10 HP
- Flange C
- L. R. Amperes 163/81.2 A
- Insulation Class F
- Degree of Protection IP55
- Rated current 25.0/12.5 A
- Rated torque 29.8 ft.lb
- Service factor 1.25
- Noise level² 58.0 dB(A)
- Number of Poles 4
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Output 10 HP (7.5 kW)
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Slip 2.22 %
- No load current 11.4/5.70 A
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Frame 213/5JM
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Rated speed 1760 rpm
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11523575 Specs
1-year warranty
