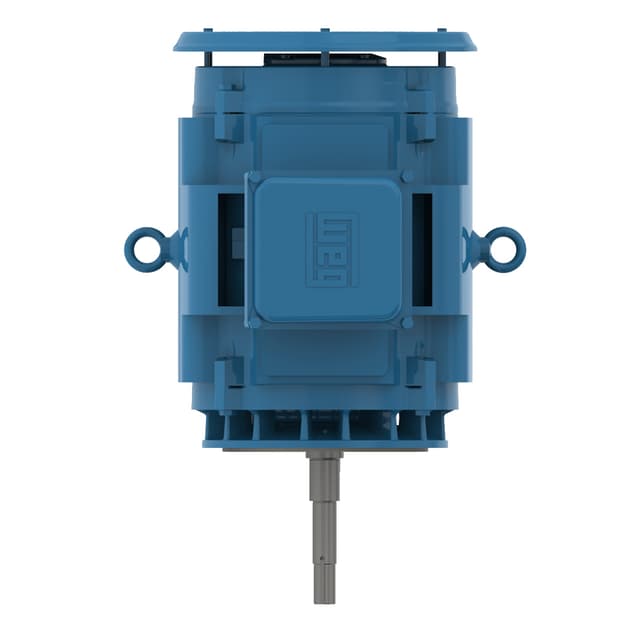

11518741 WEG AC Motors
Part#:11518741
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Close Coupled Pump High Efficiency 100 HP 2P 364/5JP 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 11518741 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Moment of inertia (J) 7.88 sq.ft.lb
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor torque 190 %
- Starting Method Direct On Line
- Voltage 200/400 V
- L. R. Amperes 1613/807 A
- Design B
- Standard NEMA MG-1
- Frame 364/5JP
- Breakdown torque 270 %
- Enclosure IC01 - ODP
- Number of poles 2
- Rated current 265/132 A
- Temperature rise 80 K
- Mounting W-6
- Terminal box¹ Left position
- Rated voltage 200/400 V
- No load current 69.0/34.5 A
- Duty Cycle Cont.(S1)
- Output rating 100 HP
- Output 100 HP (75 kW)
- Locked rotor time 23s (cold) 13s (hot)
- Ambient temperature -20°C to +40°C
- Flange C
- Slip 1.11 %
- Insulation Class F
- Approx. weight³ 806 lb
- Rated speed 3560 rpm
- Rated torque 148 ft.lb
- Altitude 1000 m.a.s.l.
- Noise level² 83.0 dB(A)
- LRC 6.1x(Code F)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11518741 Specs
1-year warranty
