11403204 WEG AC Motors
Part#:11403204
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

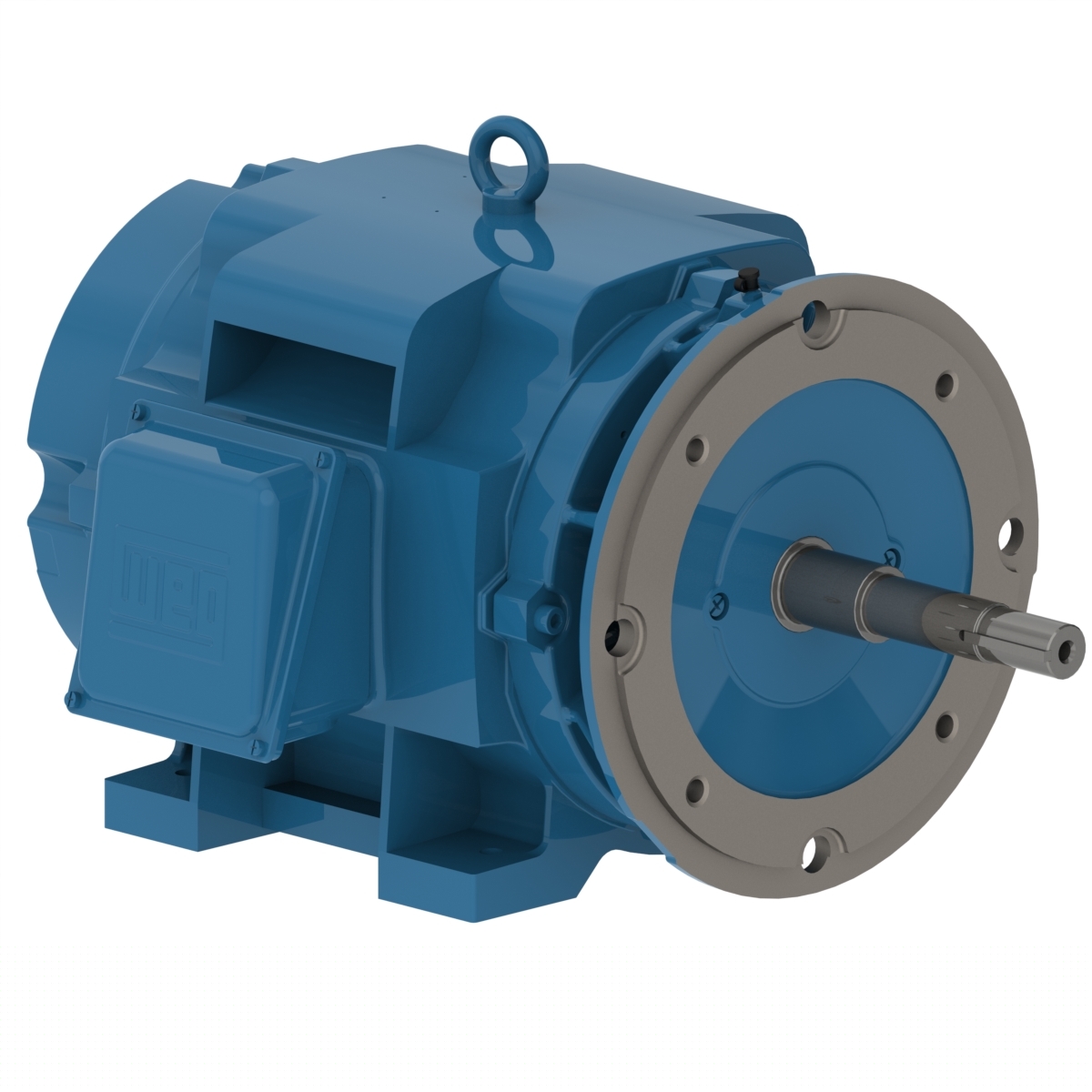

Close Coupled Pump High Efficiency 30 HP 2P 284JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11403204 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Service factor 1.15
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Moment of inertia (J) 1.68 sq.ft.lb
- Noise level² 72.0 dB(A)
- Rated speed 3540 rpm
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Flange C
- Frequency 60 Hz
- Rated torque 44.5 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 30 HP (22 kW)
- Breakdown torque 270 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 171 A
- LRC 6.2x(Code G)
- Insulation Class F
- Degree of Protection IP23
- Voltage 575 V
- Rated current 27.6 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 327 lb
- Slip 1.67 %
- Locked rotor time 21s (cold) 12s (hot)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Frame 284JP
- Design B
- Output rating 30 HP
- No load current 7.28 A
- Mounting F-1
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
