10794701 WEG AC Motors
Part#:10794701
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

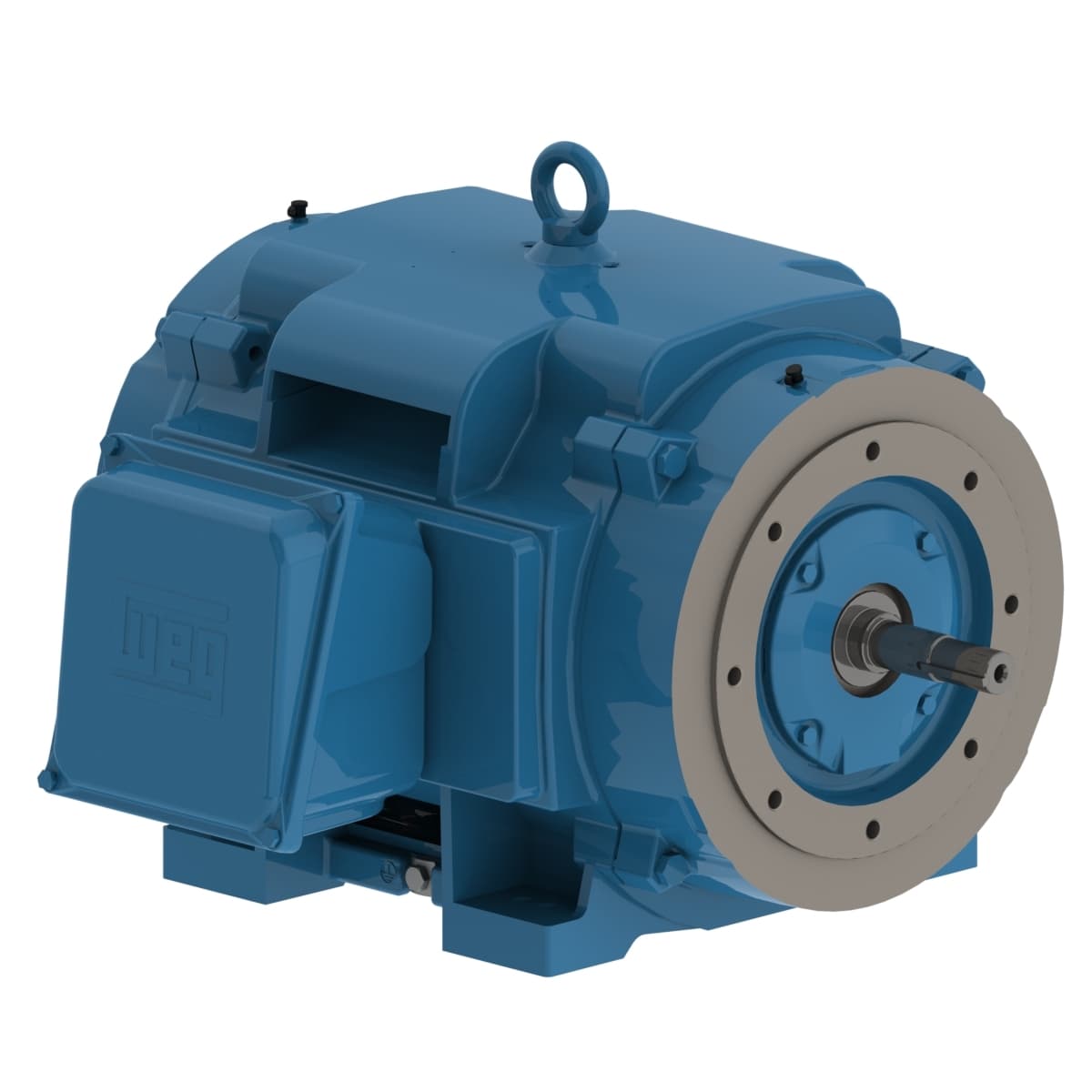

Close Coupled Pump High Efficiency 25 HP 2P 256JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10794701 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 25 HP (18.5 kW)
- Degree of Protection IP23
- Flange C
- Number of Poles 2
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- L. R. Amperes 141 A
- No load current 7.52 A
- Temperature rise 105 K
- Output rating 25 HP
- Frame 256JM
- Insulation Class F
- Starting Method Direct On Line
- Voltage 575 V
- Slip 1.94 %
- Mounting F-1
- LRC 6.0x(Code G)
- Service factor 1.15
- Noise level² 67.0 dB(A)
- Frequency 60 Hz
- Moment of inertia (J) 0.9774 sq.ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated voltage 575 V
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 231 lb
- Rated speed 3530 rpm
- Locked rotor time 18s (cold) 10s (hot)
- Design B
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Rated current 23.4 A
- Rated torque 37.2 ft.lb
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10794701 Specs
