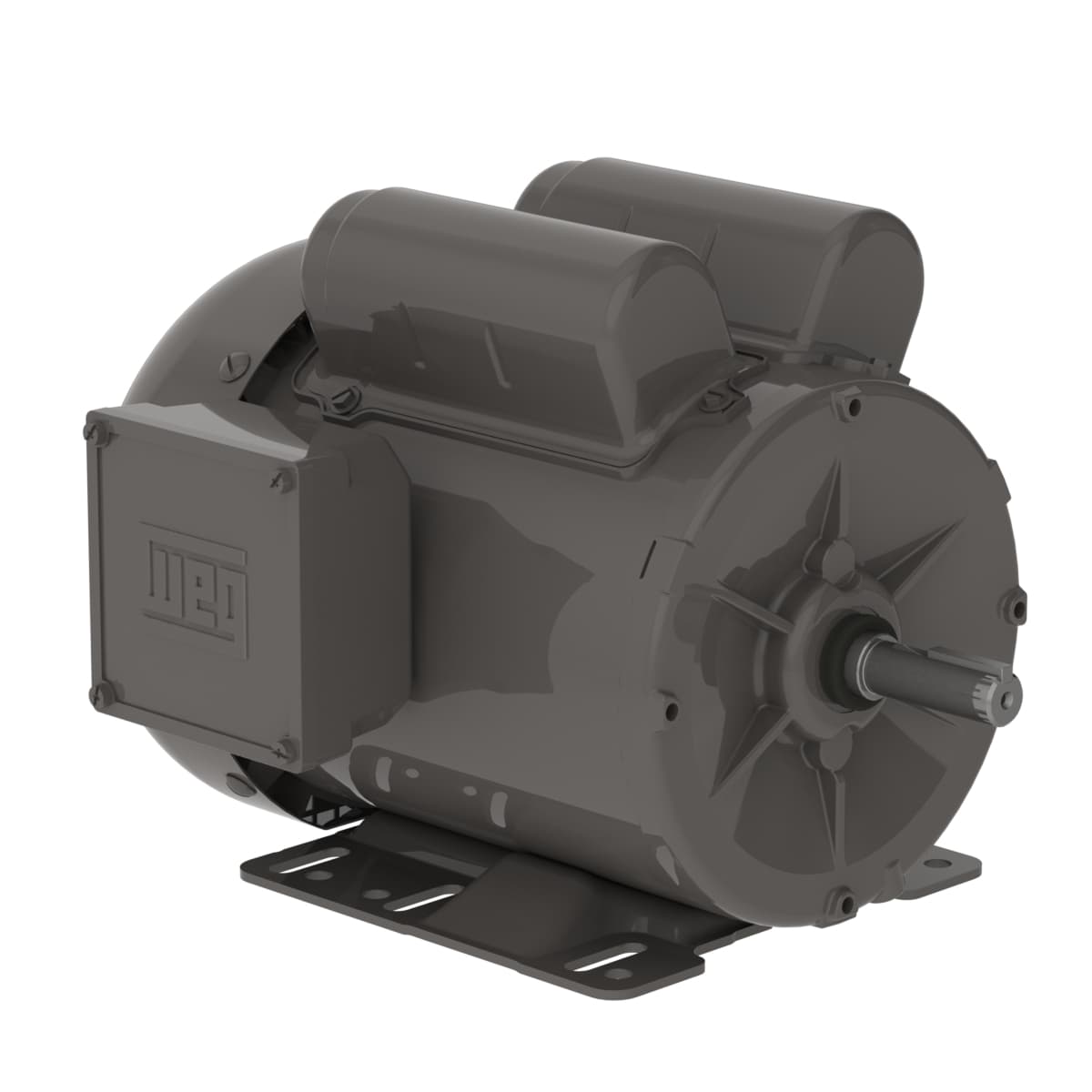

10386182 WEG AC Motors
Part#:10386182
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General 2 HP 2P F56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 10386182 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Temperature rise 80 K
- Mounting F-1
- Output 2 HP (1.5 kW)
- Locked rotor time 10s (cold) 6s (hot)
- Noise level² 55.0 dB(A)
- Terminal box¹ Left position
- Slip 3.61 %
- Locked rotor torque 250 %
- Starting Method Direct On Line
- LRC 7.0x(Code K)
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 45.1 lb
- Rated speed 3470 rpm
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Frame F56H
- Rated voltage 115/208-230 V
- Rated torque 3.03 ft.lb
- No load current 9.00/3.88-4.50 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- L. R. Amperes 140/74.2-70.0 A
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output rating 2 HP
- Number of Poles 2
- Moment of inertia (J) 0.0790 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated current 20.0/10.6-10.0 A
- Insulation Class B
- Degree of Protection IP55
- Voltage 115/208-230 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
