10345381 WEG AC Motors
Part#:10345381
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

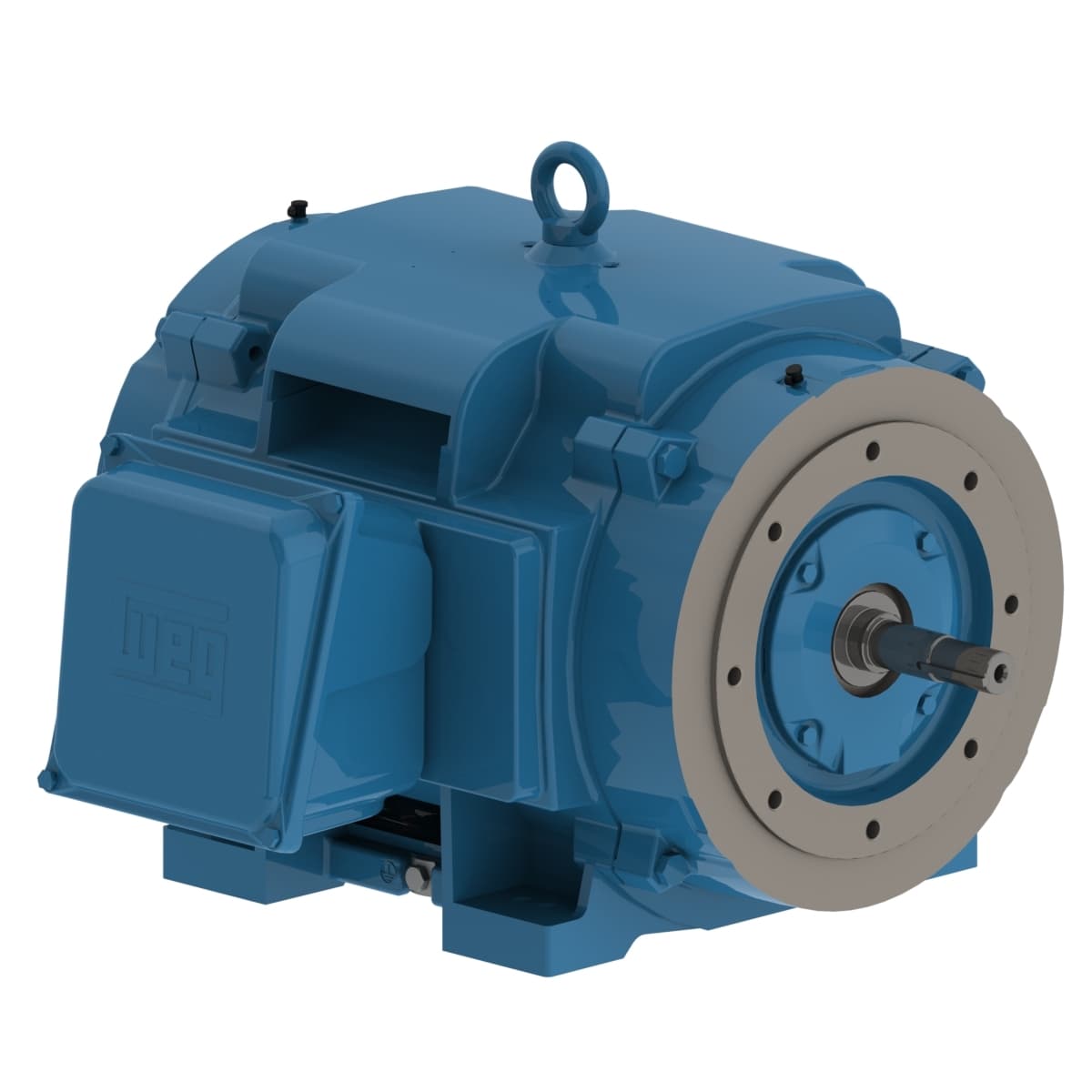

Close Coupled Pump High Efficiency 40 HP 4P 324JM 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10345381 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Service factor 1.15
- Mounting F-1
- Flange C
- Slip 1.39 %
- Design B
- Degree of Protection IP23
- Voltage 230/460 V
- Frame 324JM
- Insulation Class F
- Starting Method Direct On Line
- Output rating 40 HP
- L. R. Amperes 573/287 A
- No load current 42.0/21.0 A
- Locked rotor torque 210 %
- Duty Cycle Cont.(S1)
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Synchronous speed 1800 rpm
- Rated voltage 230/460 V
- Locked rotor time 43s (cold) 24s (hot)
- Rotation¹ Both (CW and CCW)
- Rated speed 1775 rpm
- Moment of inertia (J) 5.40 sq.ft.lb
- Approx. weight³ 464 lb
- Number of Poles 4
- LRC 5.8x(Code G)
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Rated current 98.8/49.4 A
- Rated torque 118 ft.lb
- Temperature rise 80 K
- Noise level² 64.0 dB(A)
- Output 40 HP (30 kW)
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
