05089EP3QCT365V2F1-W WEG AC Motors
Part#:05089EP3QCT365V2F1-W
Manufacturer:WEG
Alt. Part#:7909018682082
Product Lifecycle:Active
Get a quick Quote!

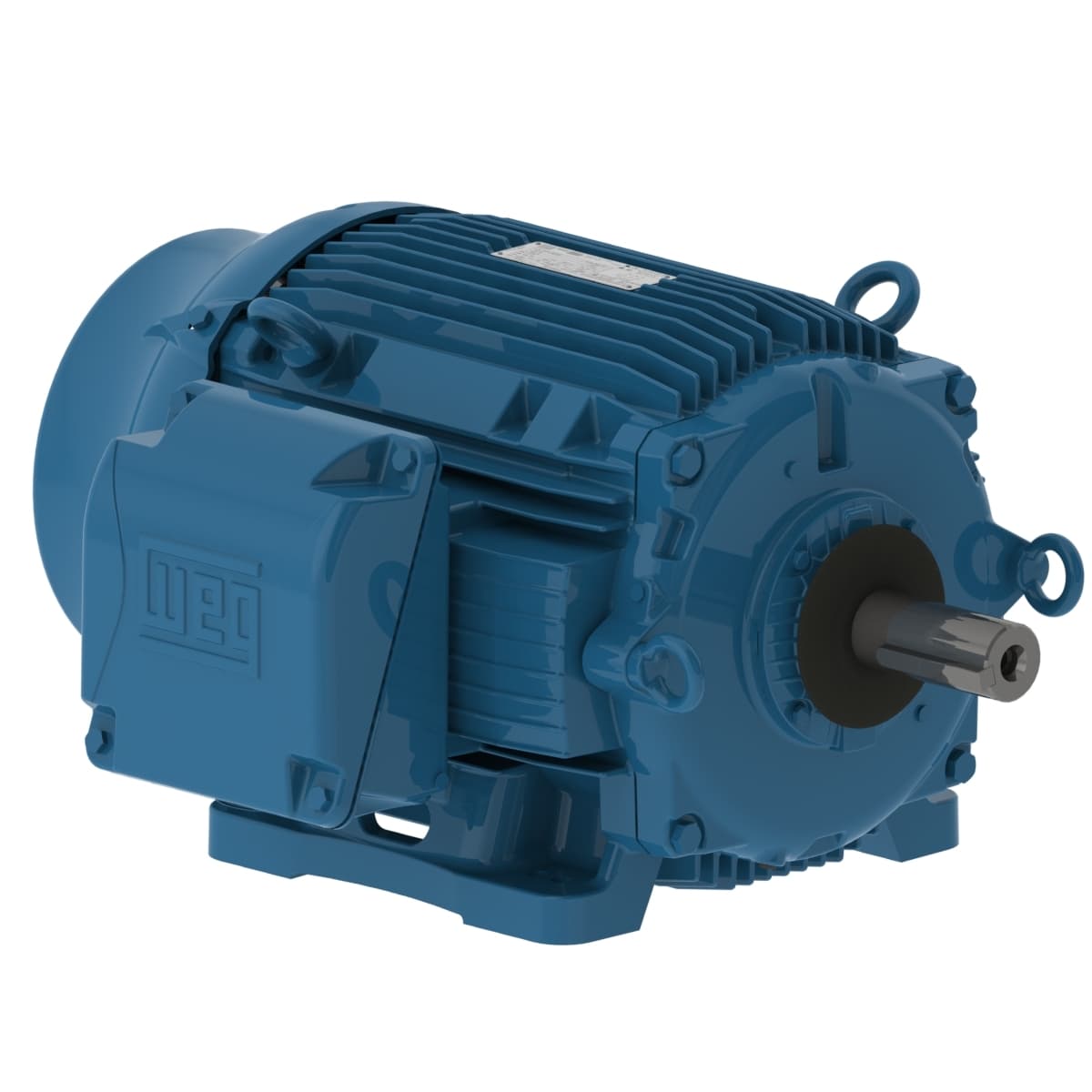

W22 Cooling Tower High Efficiency 12.5/50 HP 8/4P 364/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 05089EP3QCT365V2F1-W WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating12.5/50 HP
- Rated Speed1785 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- Frame 364/5T
- Number of Poles 8/4
- No load current 22.5 A
- Insulation Class F
- Locked rotor time 14s (cold) 8s (hot)
- Output 50 HP (37 kW)
- LRC 8.0x(Code J)
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Slip 0.83 %
- Locked rotor torque 210 %
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Rated voltage 460 V
- Moment of inertia (J) 23.3 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 12.5/50 HP
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- Voltage 460 V
- Breakdown torque 290 %
- Rated torque 147 ft.lb
- Noise level² 71.0 dB(A)
- Flange Without
- Rated speed 1785 rpm
- Service factor 1.15
- Terminal box¹ Left position
- Standard NEMA MG-1
- Number of poles 8/4
- Rated current 60.0 A
- Mounting F-1
- L. R. Amperes 480 A
- Approx. weight³ 857 lb
- Synchronous speed 900/1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05089EP3QCT365V2F1-W Specs
