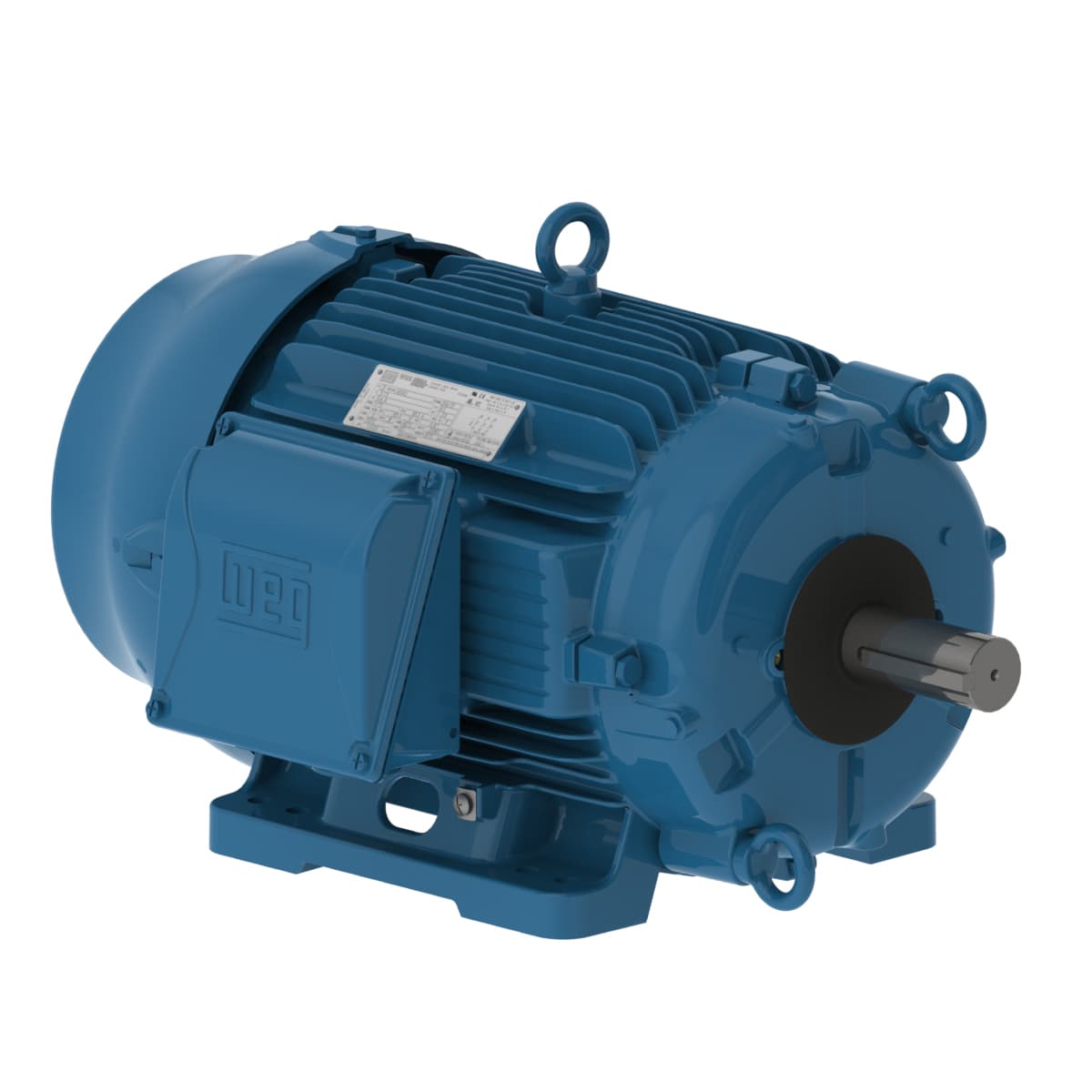

03089EP3PCT324VF1-W2 WEG AC Motors
Part#:03089EP3PCT324VF1-W2
Manufacturer:WEG
Alt. Part#:7909018677873
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 7.5/30 HP 8/4P 324T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03089EP3PCT324VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5/30 HP
- Rated Speed1780 rpm
- Number of Poles45508 Pole
- Voltage200 V
- Flange TypeWithout
- Frame 324T
- Locked rotor torque 270 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- LRC 8.1x(Code J)
- Service factor 1.15
- Voltage 200 V
- Flange Without
- Rated voltage 200 V
- Locked rotor time 19s (cold) 11s (hot)
- Mounting F-1
- Number of poles 8/4
- Rated speed 1780 rpm
- L. R. Amperes 693 A
- Temperature rise 80 K
- Approx. weight³ 542 lb
- Slip 1.11 %
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Output rating 7.5/30 HP
- No load current 39.1 A
- Insulation Class F
- Standard NEMA MG-1
- Frequency 60 Hz
- Breakdown torque 280 %
- Degree of Protection IP55
- Synchronous speed 900/1800 rpm
- Number of Poles 8/4
- Moment of inertia (J) 7.85 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Rated current 85.5 A
- Starting Method Direct On Line
- Output 30 HP (22 kW)
- Rated torque 88.5 ft.lb
- Noise level² 69.0 dB(A)
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
