02089EP3HCT256V-W22 WEG AC Motors
Part#:02089EP3HCT256V-W22
Manufacturer:WEG
Alt. Part#:7909018679136
Product Lifecycle:Active
Get a quick Quote!

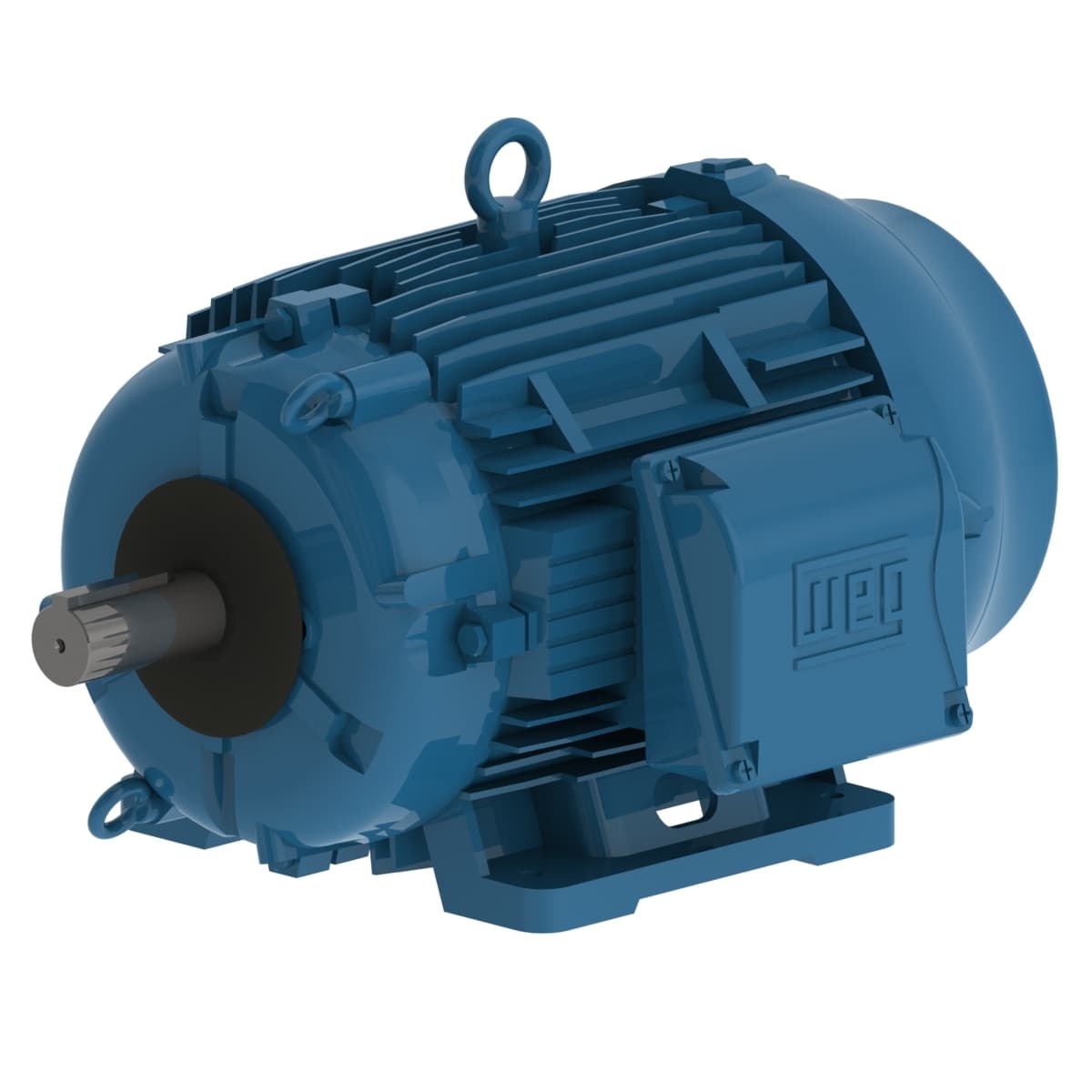

W22 Cooling Tower High Efficiency 5.0/20 HP 8/4P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02089EP3HCT256V-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5.0/20 HP
- Rated Speed1770 rpm
- Number of Poles45508 Pole
- Voltage575 V
- Flange TypeWithout
- Output 20 HP (15 kW)
- LRC 7.1x(Code J)
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 148 A
- Enclosure IC411 - TEFC
- Frame 254/6T
- No load current 9.04 A
- Standard NEMA MG-1
- Output rating 5.0/20 HP
- Starting Method Direct On Line
- Slip 1.67 %
- Rated torque 59.3 ft.lb
- Mounting F-2
- Rated speed 1770 rpm
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Noise level² 64.0 dB(A)
- Rated current 20.9 A
- Moment of inertia (J) 3.10 sq.ft.lb
- Insulation Class F
- Number of poles 8/4
- Number of Poles 8/4
- Locked rotor torque 270 %
- Breakdown torque 280 %
- Synchronous speed 900/1800 rpm
- Approx. weight³ 2.2 lb
- Locked rotor time 14s (cold) 8s (hot)
- Terminal box¹ Right position
- Rated voltage 575 V
- Frequency 60 Hz
- Service factor 1.15
- Voltage 575 V
- Flange Without
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02089EP3HCT256V-W22 Specs
1-year warranty
