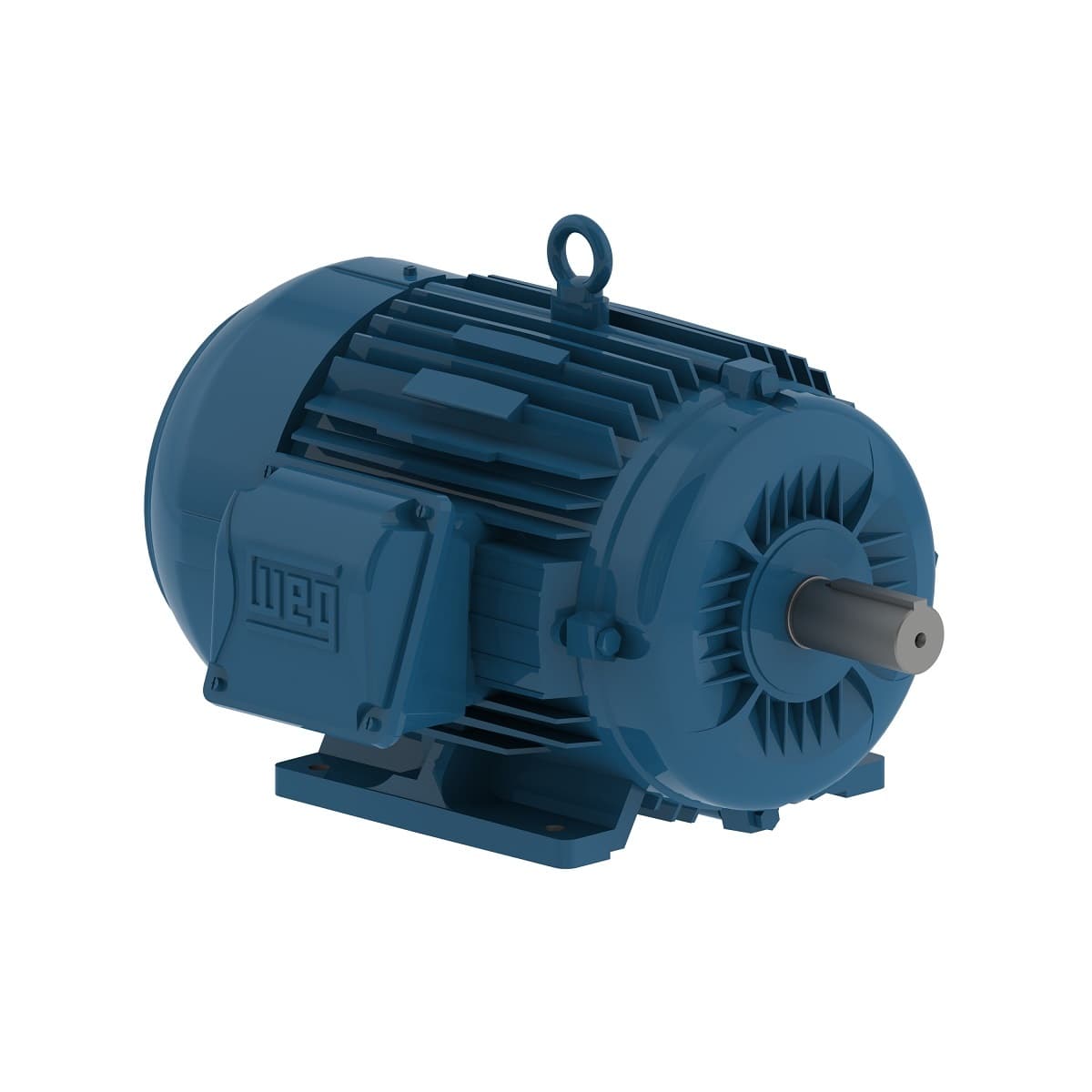

00512ET3E215T-W22 WEG AC Motors
Part#:00512ET3E215T-W22
Manufacturer:WEG
Alt. Part#:7891327195790
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 5 HP 6P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00512ET3E215T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed1170 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 1170 rpm
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Frame 213/5T
- LRC 6.8x(Code J)
- Number of poles 6
- Number of Poles 6
- Rated voltage 230/460 V
- Enclosure IC411 - TEFC
- Output 5 HP (3.7 kW)
- Design B
- Output rating 5 HP
- Moment of inertia (J) 1.47 sq.ft.lb
- Noise level² 55.0 dB(A)
- Synchronous speed 1200 rpm
- Breakdown torque 260 %
- Starting Method Direct On Line
- Approx. weight³ 172 lb
- Frequency 60 Hz
- Locked rotor torque 170 %
- Ambient temperature -20°C to +40°C
- L. R. Amperes 92.9/46.4 A
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Locked rotor time 102s (cold) 57s (hot)
- Mounting F-1
- Terminal box¹ Left position
- Service factor 1.25
- Voltage 230/460//380 V
- Slip 2.50 %
- Rated torque 22.4 ft.lb
- Standard NEMA MG-1
- Temperature rise 80 K
- Flange Without
- Rated current 13.7/6.83 A
- No load current 6.90/3.45 A
- Rotation¹ Both (CW and CCW)
