00336OS1CCD56-S WEG AC Motors
Part#:00336OS1CCD56-S
Manufacturer:WEG
Alt. Part#:7909158968268
Product Lifecycle:Active
Get a quick Quote!

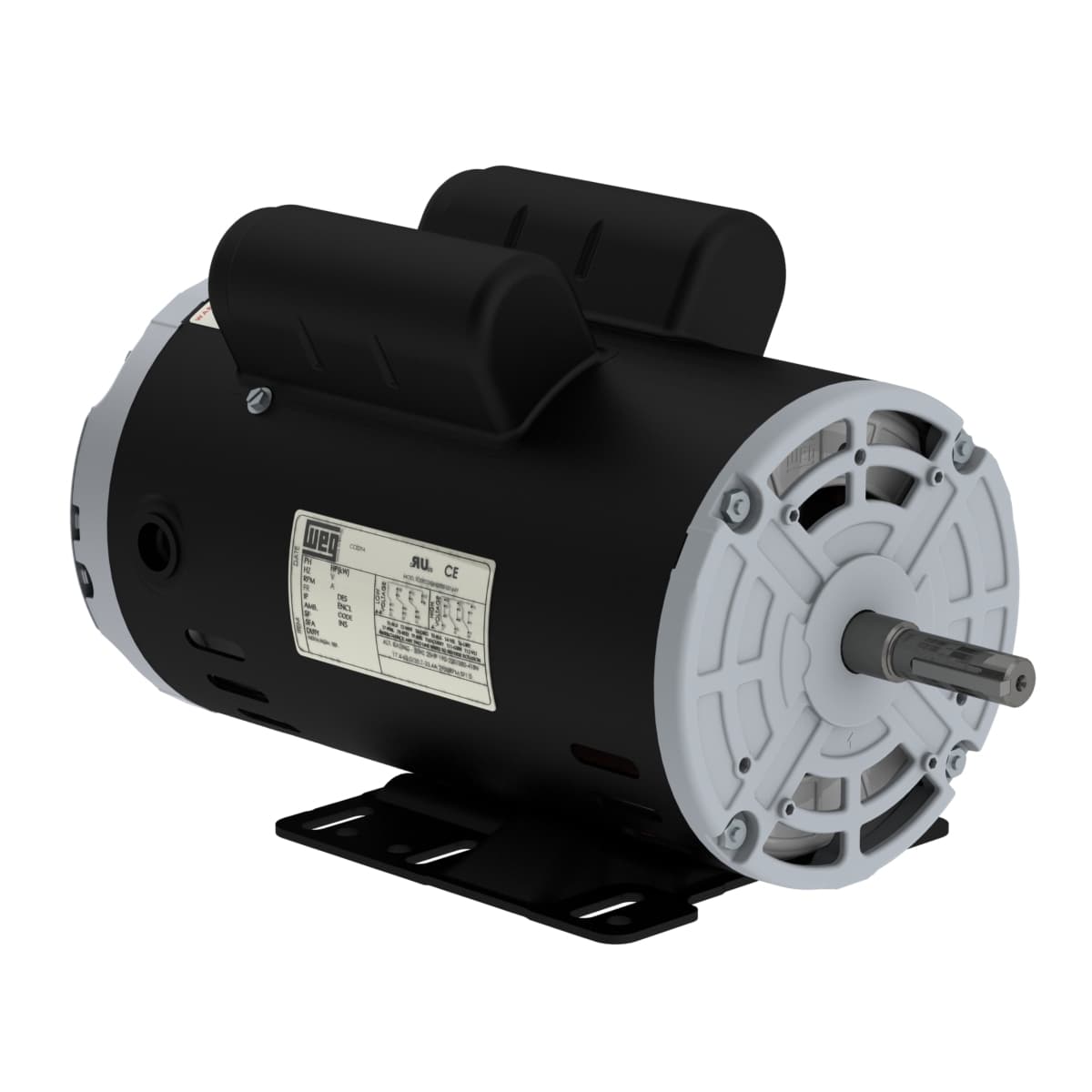

Rolled Steel Compressor Duty 3 HP 2P 56H 1Ph 208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00336OS1CCD56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3480 rpm
- Number of Poles2 Pole
- Voltage208-230 V
- Flange TypeWithout
- Number of Poles 2
- Design L
- Breakdown torque 250 %
- Output rating 3 HP
- Slip 3.33 %
- LRC 6.8x(Code H)
- Temperature rise 105 K
- Noise level² 58.0 dB(A)
- Output 3 HP (2.2 kW)
- Starting Method Direct On Line
- Approx. weight³ 38.3 lb
- Rated torque 4.53 ft.lb
- Altitude 1000 m.a.s.l.
- Rated current 13.0-12.7 A
- No load current 4.05-4.70 A
- Duty Cycle Cont.(S1)
- Voltage 208-230 V
- Terminal box¹ Without Terminal Box
- Frequency 60 Hz
- Moment of inertia (J) 0.0707 sq.ft.lb
- Mounting F-1
- Number of poles 2
- Locked rotor time 12s (cold) 7s (hot)
- Rated voltage 208-230 V
- L. R. Amperes 88.4-86.4 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Frame 56H
- Service factor 1.00 (1.00 @ 208V)
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- Rated speed 3480 rpm
- Locked rotor torque 165 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
