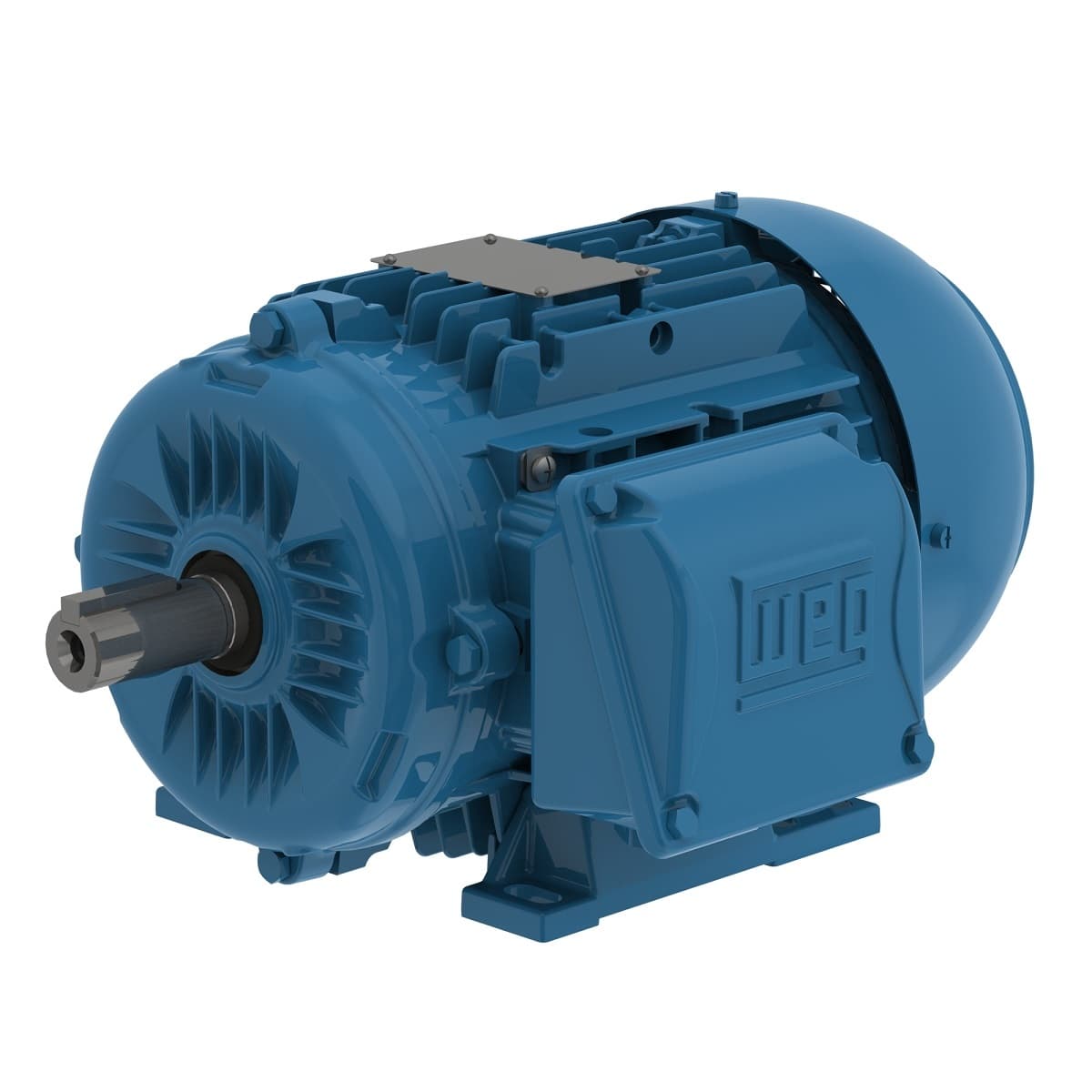

00336ET3EAL100L-W22 WEG AC Motors
Part#:00336ET3EAL100L-W22
Manufacturer:WEG
Alt. Part#:7909323280959
Product Lifecycle:Active
Get a quick Quote!
Multimounting IE3 4 HP 2P 100L 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 00336ET3EAL100L-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating4 HP
- Rated Speed2900 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Slip 3.33 %
- Locked rotor time 14s (cold) 8s (hot)
- Ambient temperature -20°C to +40°C
- Output rating 4 HP
- Frequency 50 Hz
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated voltage 380 V
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 4 HP (3 kW)
- Breakdown torque 300 %
- Approx. weight³ 57.4 lb
- L. R. Amperes 49.4 A
- Insulation Class F
- Noise level² 67.0 dB(A)
- Rated torque 7.24 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 2
- Design N
- Mounting B3L(E)
- Flange Without
- Rated current 6.02 A
- No load current 2.40 A
- Enclosure IC411 - TEFC
- Terminal box¹ Right position
- Rated speed 2900 rpm
- LRC 8.2
- Duty Cycle S1
- Number of poles 2
- Frame 100L
- Moment of inertia (J) 0.1519 sq.ft.lb
- Degree of Protection IP55
- Voltage 230/460//380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336ET3EAL100L-W22 Specs
1-year warranty
