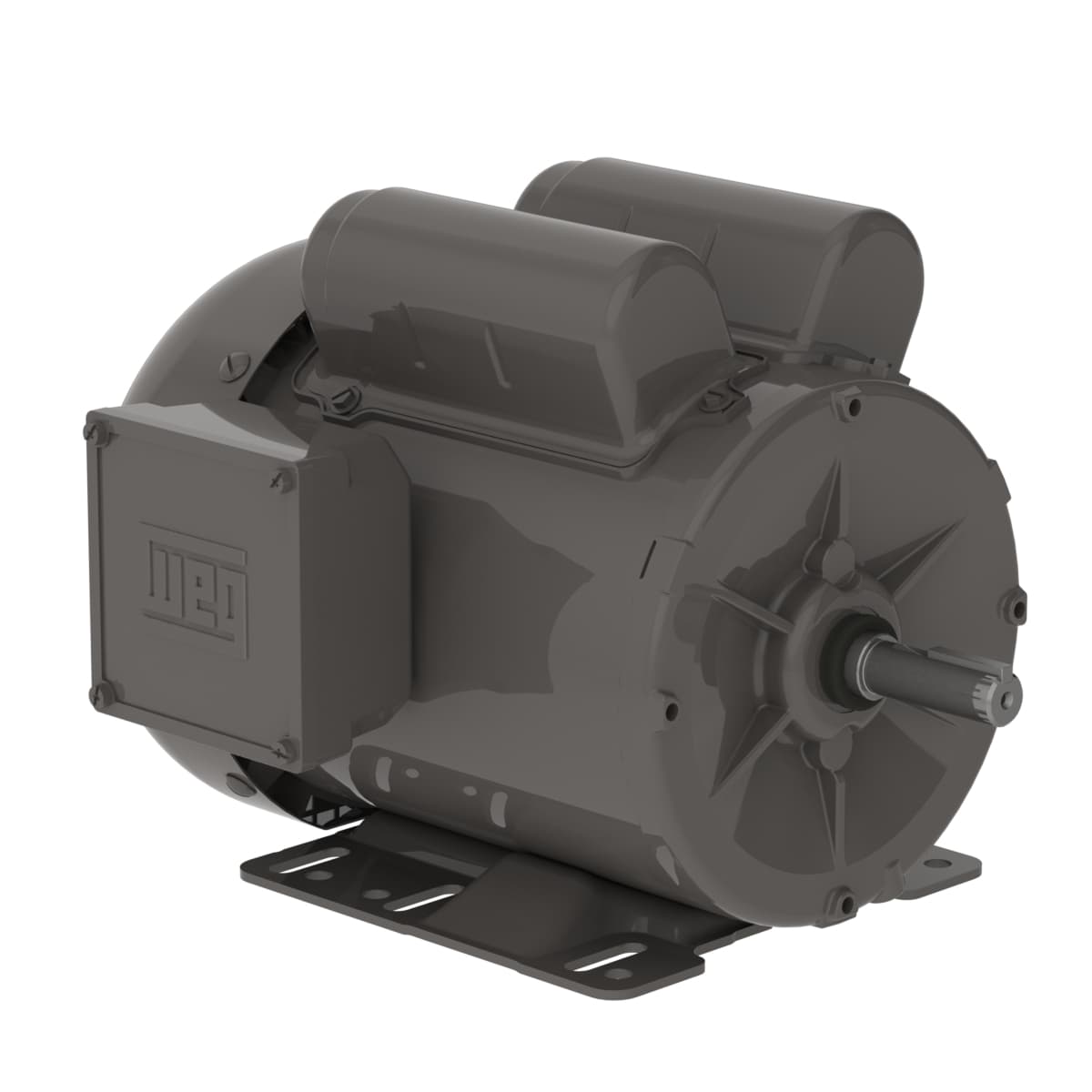

00336ES1E145T WEG AC Motors
Part#:00336ES1E145T
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
General 3 HP 2P G143/5T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00336ES1E145T WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- L. R. Amperes 119-102/51.0 A
- Service factor 1.15 (1.00 @ 208V)
- Noise level² 60.0 dB(A)
- Number of Poles 2
- Locked rotor time 10s (cold) 6s (hot)
- Insulation Class F
- Mounting F-1
- LRC 8.5x(Code J)
- Altitude 1000 m.a.s.l.
- Output rating 3 HP
- No load current 1.98-2.30/1.15 A
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Starting Method Direct On Line
- Approx. weight³ 55.5 lb
- Synchronous speed 3600 rpm
- Rated voltage 208-230/460 V
- Rated torque 4.51 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Rated current 14.0-12.0/6.00 A
- Breakdown torque 280 %
- Temperature rise 105 K
- Voltage 208-230/460 V
- Flange Without
- Frame G143/5T
- Rated speed 3490 rpm
- Output 3 HP (2.2 kW)
- Standard NEMA MG-1
- Slip 3.06 %
- Locked rotor torque 250 %
- Moment of inertia (J) 0.0949 sq.ft.lb
- Degree of Protection IP55
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336ES1E145T Specs
1-year warranty
