00336ES1E145JM-W22 WEG AC Motors
Part#:00336ES1E145JM-W22
Manufacturer:WEG
Alt. Part#:7909323721469
Product Lifecycle:Active
Get a quick Quote!

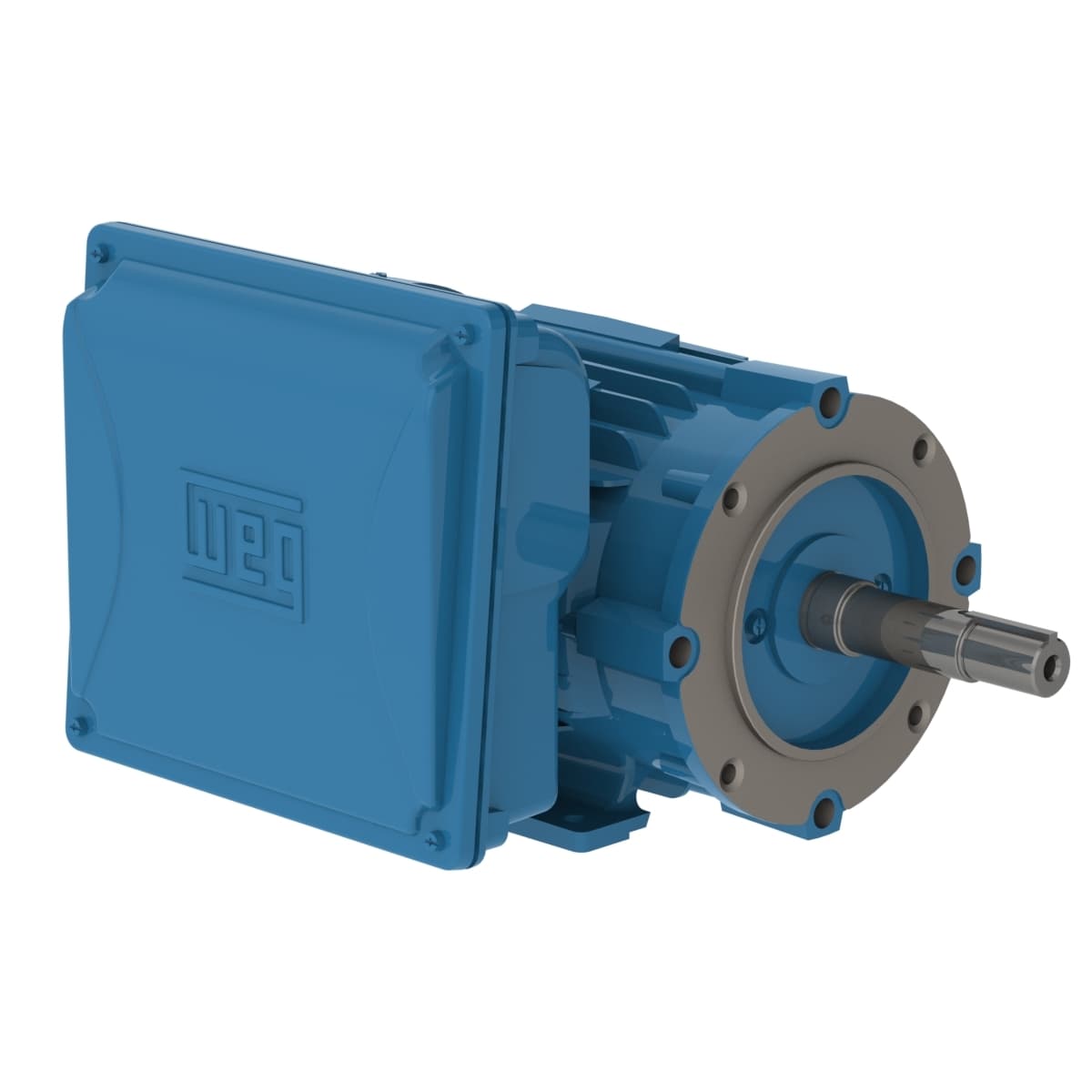

W22 JM Pump 3 HP 2P 143/5JM 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00336ES1E145JM-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeC
- Frame 143/5JM
- Locked rotor torque 220 %
- Voltage 208-230/460 V
- Slip 2.50 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Locked rotor time 12s (cold) 7s (hot)
- Enclosure IC411 - TEFC
- Output rating 3 HP
- Rated speed 3510 rpm
- Insulation Class F
- Approx. weight³ 71.6 lb
- Rated voltage 208-230/460 V
- Breakdown torque 240 %
- Degree of Protection IP55
- Flange C
- L. R. Amperes 97.9-90.0/45.0 A
- Service factor 1.15 (1.00 @ 208V)
- Mounting F-1
- Terminal box¹ Left position
- LRC 7.2x(Code H)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated current 13.6-12.5/6.25 A
- Rated torque 4.49 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- No load current 2.50-2.90/1.45 A
- Starting Method Direct On Line
- Noise level² 69.0 dB(A)
- Output 3 HP (2.2 kW)
- Moment of inertia (J) 0.0664 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336ES1E145JM-W22 Specs
