00336ES1DJP56J-S WEG AC Motors
Part#:00336ES1DJP56J-S
Manufacturer:WEG
Alt. Part#:7909522753261
Product Lifecycle:Active
Get a quick Quote!

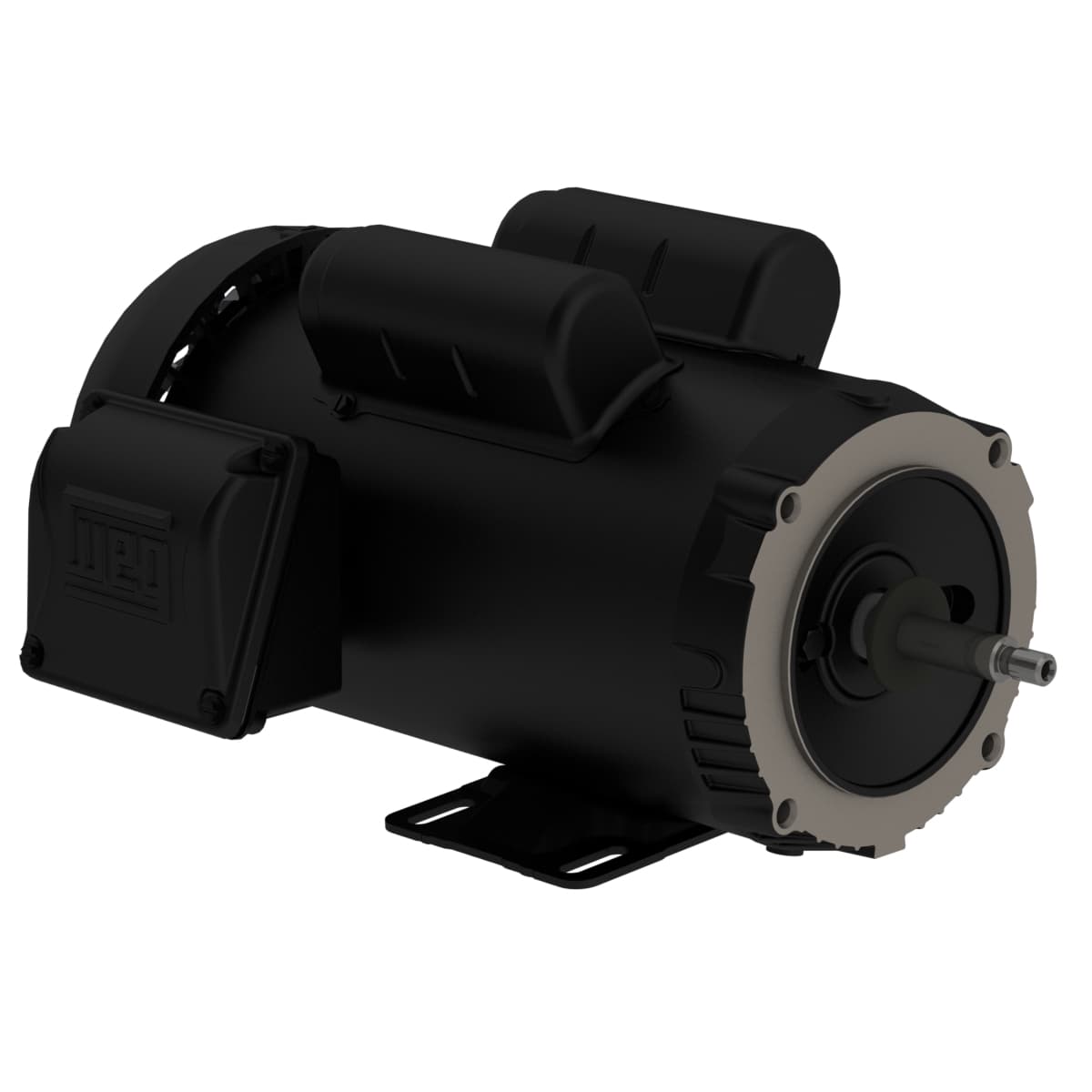

Rolled Steel Jet Pump - J type 3 HP 2P 56J 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00336ES1DJP56J-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3490 rpm
- Number of Poles2 Pole
- Voltage230 V
- Flange TypeC
- No load current 4.00 A
- Moment of inertia (J) 0.0944 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Flange C
- LRC 8.0x(Code J)
- Temperature rise 80 K
- Mounting F-1
- Terminal box¹ Left position
- Output 3 HP (2.2 kW)
- Insulation Class F
- Noise level² 68.0 dB(A)
- Synchronous speed 3600 rpm
- Rated speed 3490 rpm
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Locked rotor torque 210 %
- Breakdown torque 250 %
- Frame 56J
- Slip 3.06 %
- Duty Cycle Cont.(S1)
- Rotation¹ CCW
- Output rating 3 HP
- Rated voltage 230 V
- Locked rotor time 10s (cold) 6s (hot)
- Degree of Protection IP55
- Approx. weight³ 49.2 lb
- L. R. Amperes 102 A
- Design L
- Altitude 1000 m.a.s.l.
- Voltage 230 V
- Number of Poles 2
- Rated torque 4.51 ft.lb
- Starting Method Direct On Line
- Number of poles 2
- Rated current 12.7 A
- Service factor 1.15
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336ES1DJP56J-S Specs
