00136OT1B56CFL-S WEG AC Motors
Part#:00136OT1B56CFL-S
Manufacturer:WEG
Alt. Part#:7909265056810
Product Lifecycle:Active
Get a quick Quote!

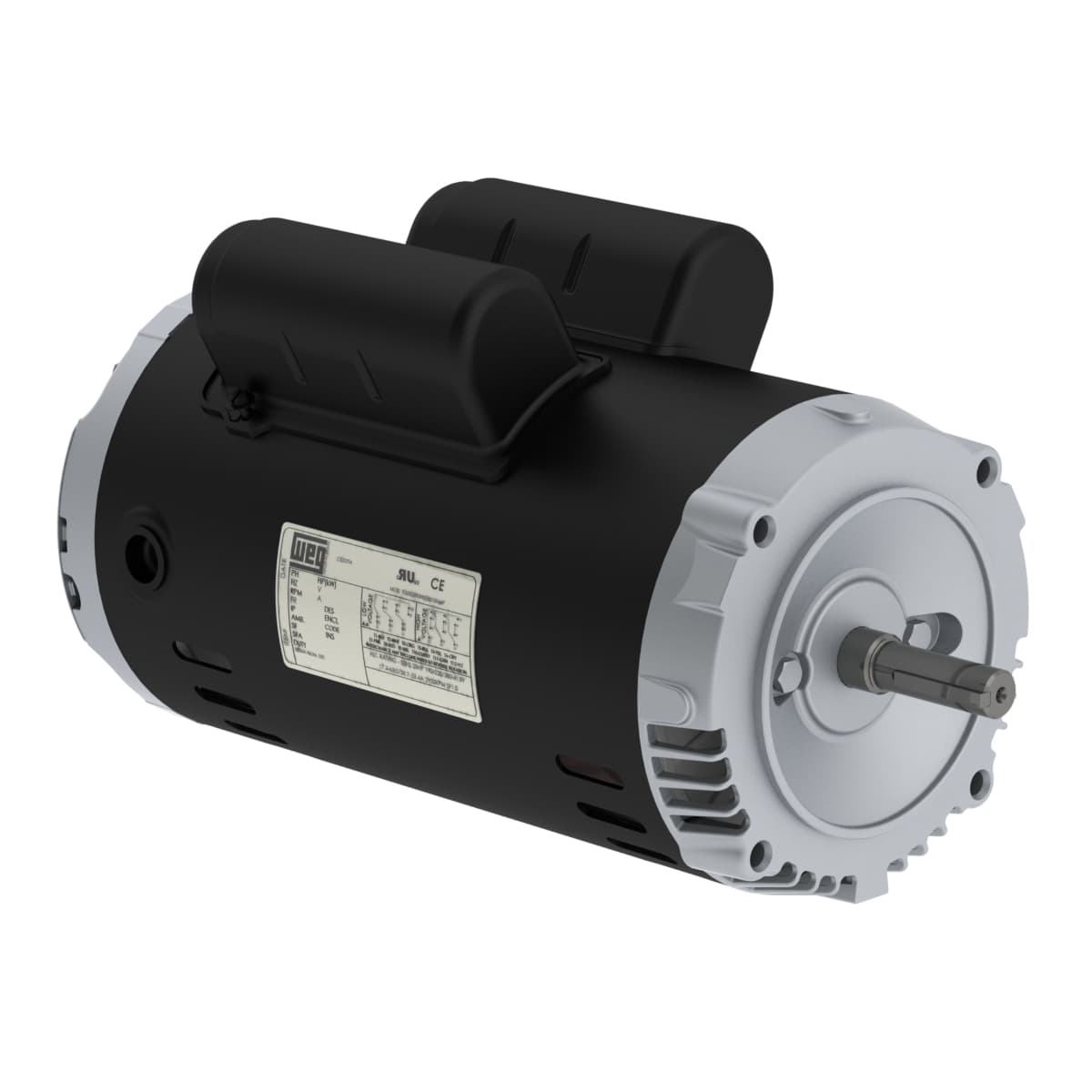

Rolled Steel 1 HP 2P 56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the 00136OT1B56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeC
- Rated speed 3510 rpm
- Locked rotor torque 290 %
- Mounting F-1
- LRC 8.4x(Code K)
- Locked rotor time 28s (cold) 16s (hot)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Without Terminal Box
- Number of Poles 2
- Breakdown torque 300 %
- Ambient temperature -20°C to +40°C
- Flange C
- L. R. Amperes 72.2/39.9-36.1 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 1 HP
- Output 1 HP (0.75 kW)
- No load current 2.60/1.12-1.30 A
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Rated current 8.60/4.75-4.30 A
- Rated torque 1.50 ft.lb
- Starting Method Direct On Line
- Voltage 115/208-230 V
- Frequency 60 Hz
- Moment of inertia (J) 0.0551 sq.ft.lb
- Approx. weight³ 30.3 lb
- Rated voltage 115/208-230 V
- Service factor 1.25 (1.00 @ 208V)
- Synchronous speed 3600 rpm
- Frame 56C
- Design N
- Noise level² 58.0 dB(A)
- Slip 2.50 %
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00136OT1B56CFL-S Specs
1-year warranty
