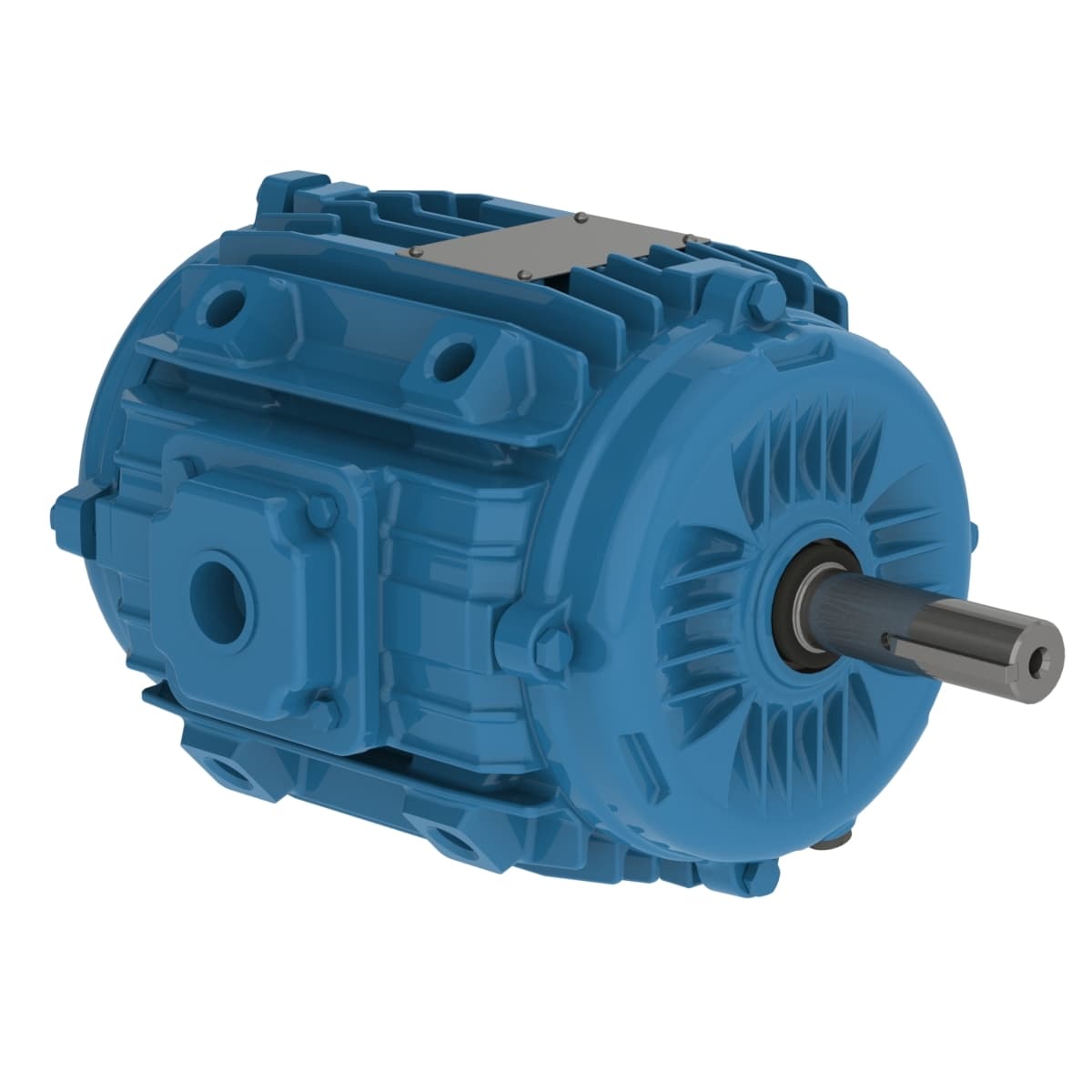

00136ET3EPM143/5Y-W2 WEG AC Motors
Part#:00136ET3EPM143/5Y-W2
Manufacturer:WEG
Alt. Part#:7909322483474
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 1 HP 2P 145YZ 3Ph 208-230/460//380 V 60//50 Hz IC418 - TEAO - Pad mounted
Check out the 00136ET3EPM143/5Y-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed3500 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- No load current 1.33-1.54/0.770 A
- Locked rotor time 36s (cold) 20s (hot)
- Number of Poles 2
- Duty Cycle Cont.(S1)
- Mounting F-1
- Output 1 HP (0.75 kW)
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Flange Without
- Rated speed 3500 rpm
- Temperature rise 80 K
- Noise level² 68.0 dB(A)
- Rated current 3.16-2.94/1.47 A
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Voltage 208-230/460//380 V
- Slip 2.78 %
- Insulation Class F
- Approx. weight³ 36.9 lb
- Output rating 1 HP
- Frame 145YZ
- LRC 8.2x(Code L)
- Degree of Protection IP55
- Standard NEMA MG-1
- L. R. Amperes 25.9-24.1/12.1 A
- Rated torque 1.50 ft.lb
- Starting Method Direct On Line
- Number of poles 2
- Frequency 60 Hz
- Breakdown torque 310 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated voltage 208-230/460 V
- Moment of inertia (J) 0.0332 sq.ft.lb
- Enclosure IC418 - TEAO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
