00136ET3EJPW56J-S WEG AC Motors
Part#:00136ET3EJPW56J-S
Manufacturer:WEG
Alt. Part#:7909322353777
Product Lifecycle:Active
Get a quick Quote!

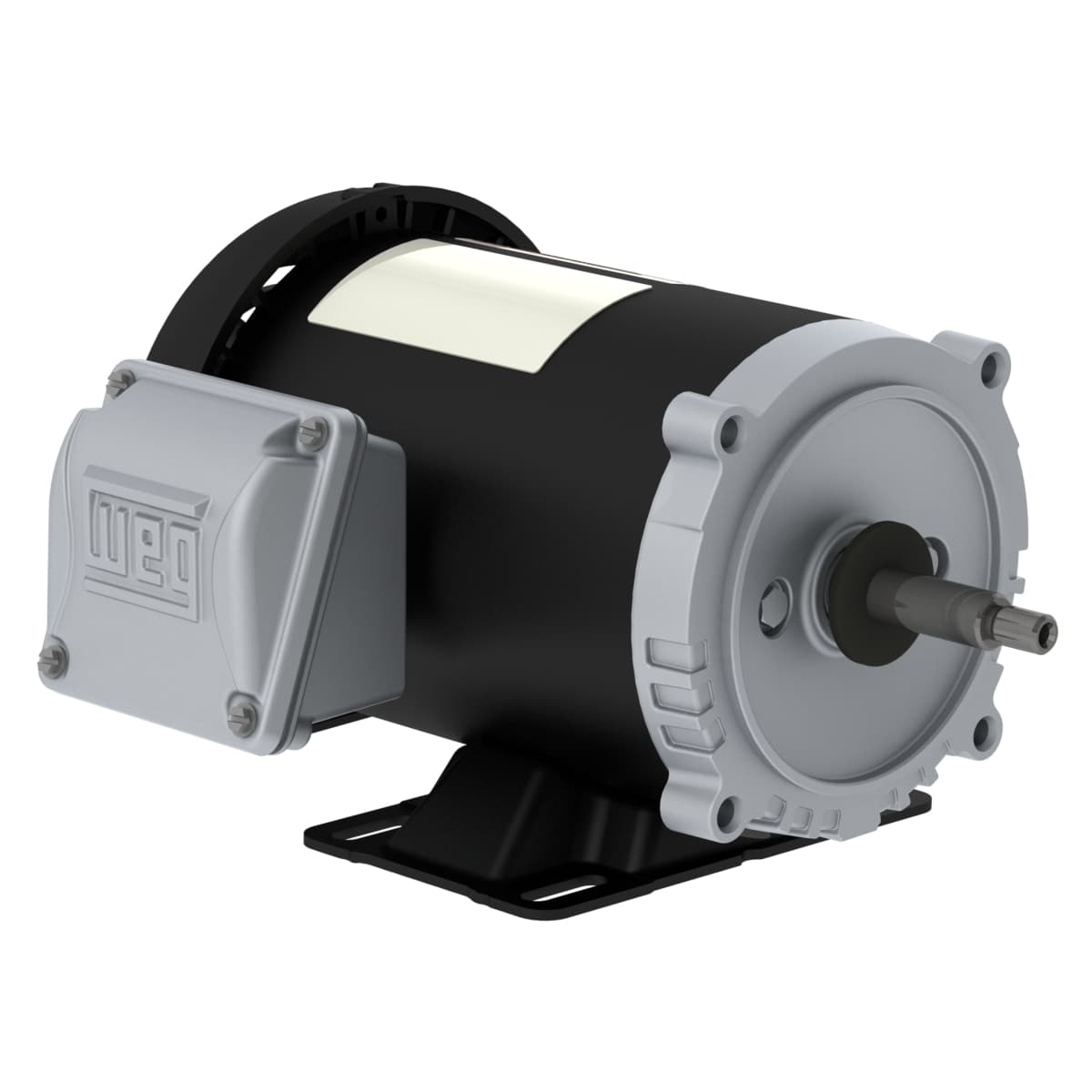

Rolled Steel Jet Pump - J type Premium Efficiency 1 HP 2P W56J 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00136ET3EJPW56J-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed3435 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frame W56J
- Breakdown torque 380 %
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Slip 4.58 %
- Locked rotor time 18s (cold) 10s (hot)
- Standard NEMA MG-1
- Flange C
- L. R. Amperes 26.4/13.2 A
- Temperature rise 80 K
- Rotation¹ CCW
- Output rating 1 HP
- Output 1 HP (0.75 kW)
- Moment of inertia (J) 0.0254 sq.ft.lb
- Approx. weight³ 22.2 lb
- No load current 1.60/0.798 A
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor torque 360 %
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Rated speed 3435 rpm
- LRC 8.8x(Code M)
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Rated voltage 230/460 V
- Rated torque 1.53 ft.lb
- Number of poles 2
- Rated current 3.00/1.50 A
- Service factor 1.15 (1.00 @ 208V)
- Noise level² 65.0 dB(A)
- Frequency 60 Hz
- Insulation Class F
- Starting Method Direct On Line
