.7536OS3HJP56J-S WEG AC Motors
Part#:.7536OS3HJP56J-S
Manufacturer:WEG
Alt. Part#:7909158536344
Product Lifecycle:Active
Get a quick Quote!

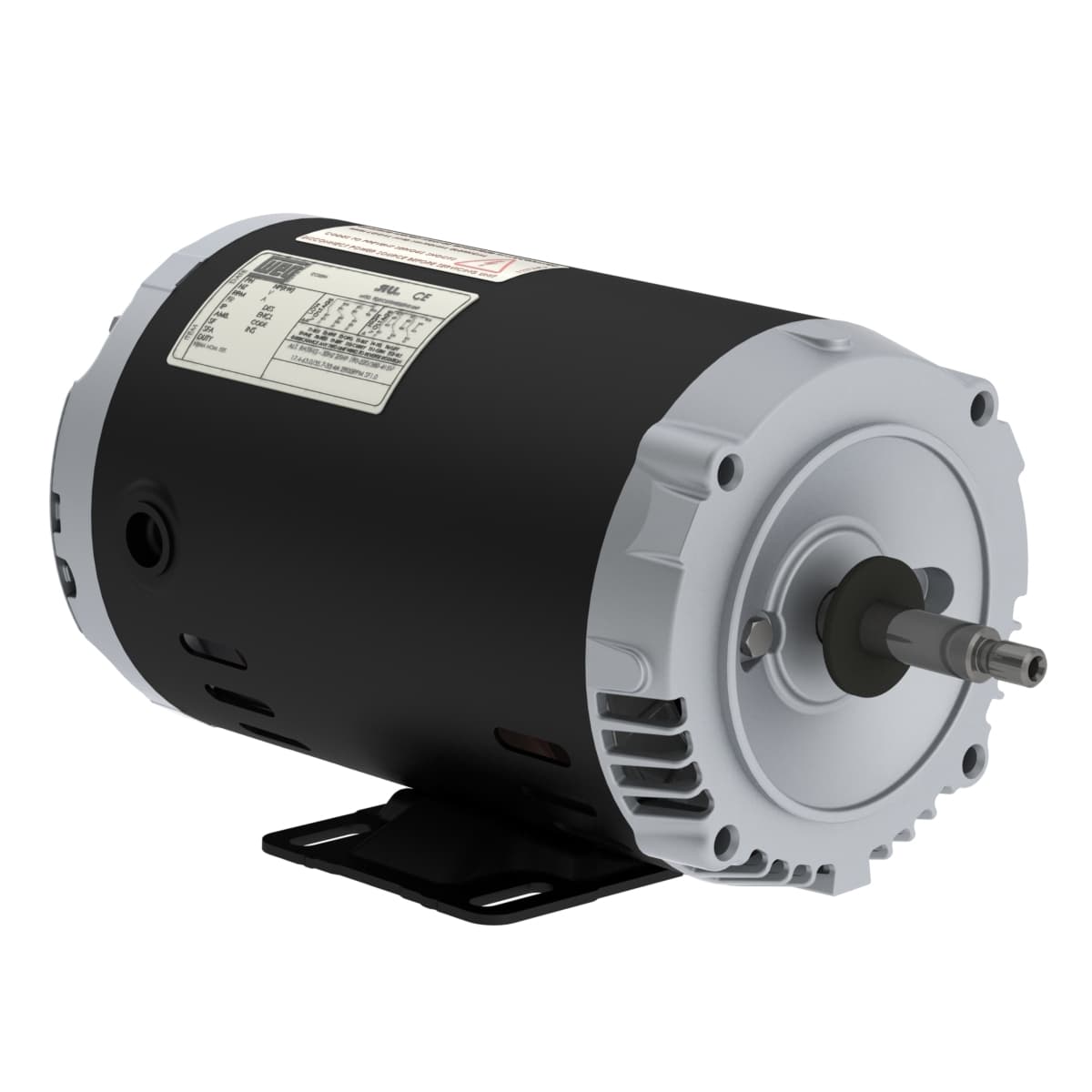

Rolled Steel Jet Pump - J type Standard Efficiency 0.75 HP 2P 56J 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the .7536OS3HJP56J-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.75 HP
- Rated Speed3475 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Number of Poles 2
- Rated torque 1.13 ft.lb
- Starting Method Direct On Line
- Output rating 0.75 HP
- Locked rotor torque 210 %
- Enclosure IC01 - ODP
- Voltage 575 V
- Output 0.75 HP (0.55 kW)
- LRC 6.2x(Code K)
- Temperature rise 80 K
- Standard NEMA MG-1
- L. R. Amperes 6.15 A
- Moment of inertia (J) 0.0453 sq.ft.lb
- Rotation¹ CCW
- Slip 3.47 %
- Locked rotor time 48s (cold) 27s (hot)
- Mounting F-1
- Terminal box¹ Without Terminal Box
- Frequency 60 Hz
- No load current 0.640 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 21.0 lb
- Rated current 0.992 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Rated speed 3475 rpm
- Service factor 1.50
- Noise level² 62.0 dB(A)
- Frame 56J
- Breakdown torque 260 %
- Number of poles 2
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .7536OS3HJP56J-S Specs
