.7518ES3E56C-S WEG AC Motors
Part#:.7518ES3E56C-S
Manufacturer:WEG
Alt. Part#:7909522440710
Product Lifecycle:Active
In-stock parts: 3
Jun 20, 2025

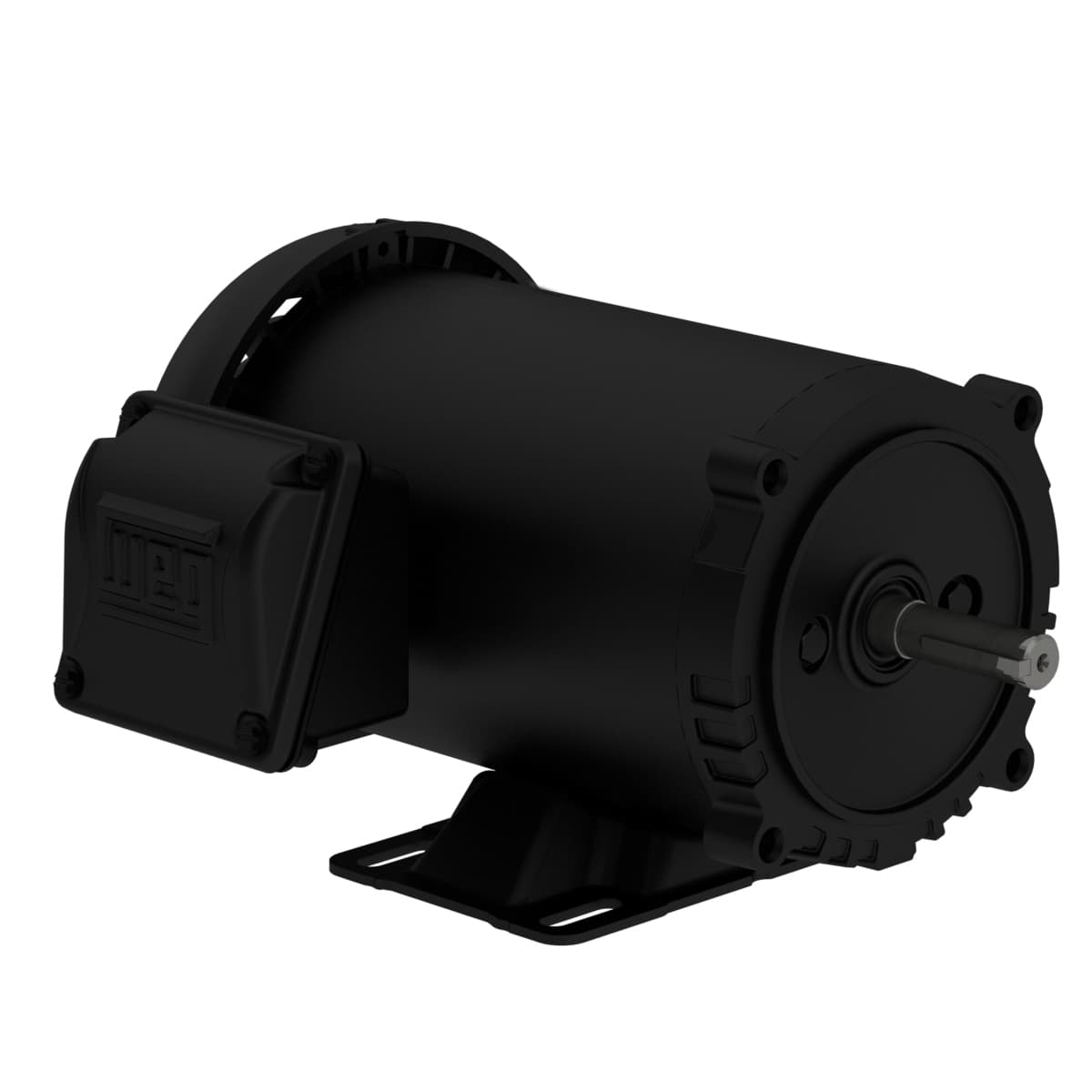

Rolled Steel Standard Efficiency 0.75 HP 4P 56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the .7518ES3E56C-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.75 HP
- Rated Speed1755 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeC
- Frequency 60 Hz
- LRC 6.9x(Code K)
- Starting Method Direct On Line
- Voltage 208-230/460//190-220/380-415 V
- Rated current 2.70-2.44/1.22 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Terminal box¹ Left position
- Number of Poles 4
- No load current 1.55-1.80/0.900 A
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Rated voltage 208-230/460 V
- Moment of inertia (J) 0.0648 sq.ft.lb
- Number of poles 4
- Rotation¹ Both (CW and CCW)
- Output 0.75 HP (0.55 kW)
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Breakdown torque 300 %
- Service factor 1.15 (1.00 @ 208V)
- Degree of Protection IP55
- Slip 2.50 %
- Locked rotor time 30s (cold) 17s (hot)
- Approx. weight³ 23.7 lb
- Rated speed 1755 rpm
- Rated torque 2.24 ft.lb
- Enclosure IC411 - TEFC
- Output rating 0.75 HP
- L. R. Amperes 18.6-16.8/8.42 A
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Frame 56C
- Locked rotor torque 240 %
- Noise level² 52.0 dB(A)
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .7518ES3E56C-S Specs
1-year warranty
