.5036OT1BW56CFL-S WEG AC Motors
Part#:.5036OT1BW56CFL-S
Manufacturer:WEG
Alt. Part#:7909265583507
Product Lifecycle:Active
Get a quick Quote!

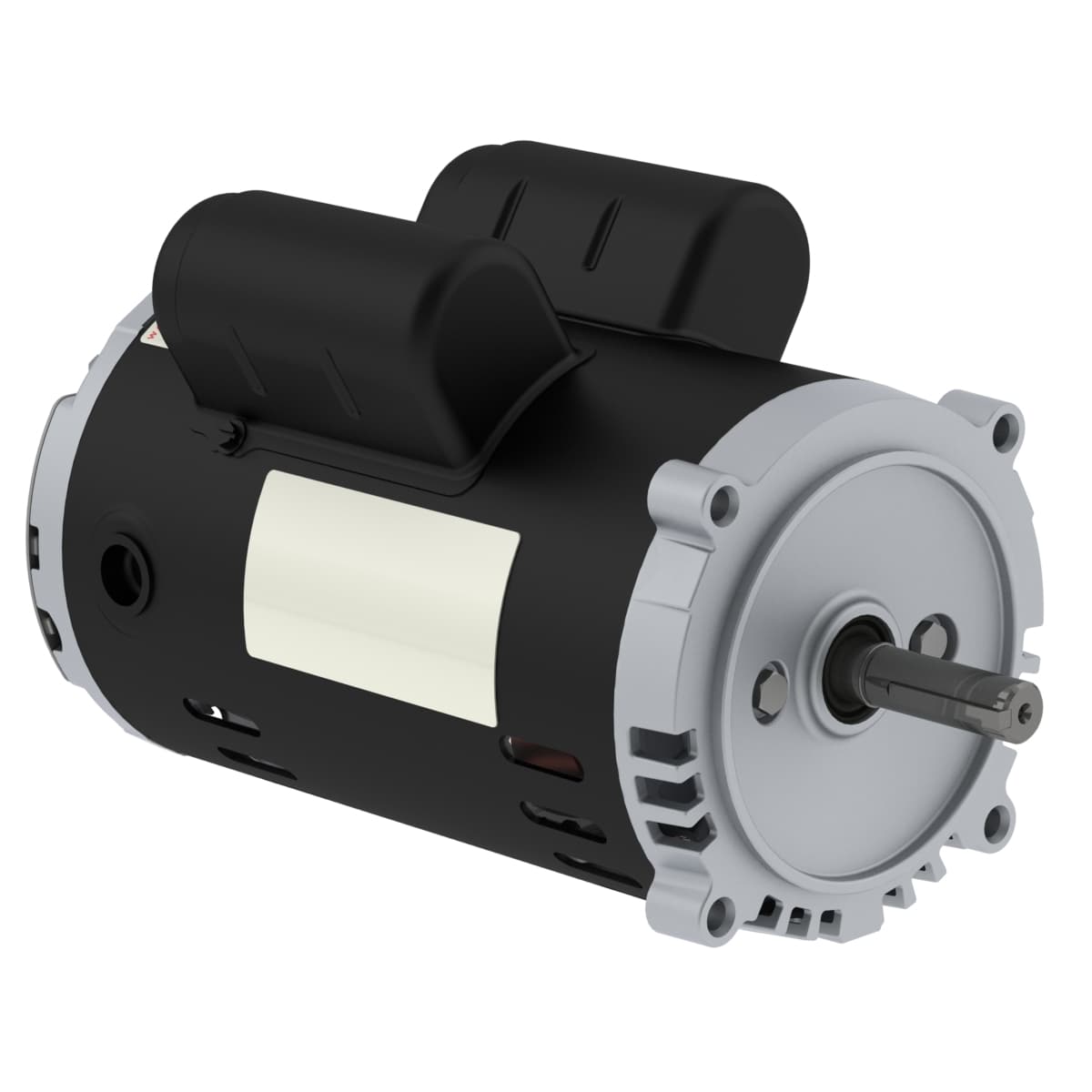

Rolled Steel 0.5 HP 2P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the .5036OT1BW56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeC
- Frequency 60 Hz
- LRC 8.8x(Code L)
- Duty Cycle Cont.(S1)
- Output rating 0.5 HP
- Rated current 4.80/2.65-2.40 A
- Breakdown torque 300 %
- Enclosure IC01 - ODP
- Terminal box¹ Without Terminal Box
- Rated torque 0.748 ft.lb
- Design N
- Mounting F-1
- Synchronous speed 3600 rpm
- Output 0.5 HP (0.37 kW)
- No load current 1.60/0.690-0.800 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 42.2/23.3-21.1 A
- Service factor 1.25 (1.00 @ 208V)
- Approx. weight³ 24.9 lb
- Slip 2.50 %
- Temperature rise 80 K
- Noise level² 56.0 dB(A)
- Number of Poles 2
- Locked rotor torque 270 %
- Ambient temperature -20°C to +40°C
- Flange C
- Rated speed 3510 rpm
- Moment of inertia (J) 0.0254 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Frame W56C
- Locked rotor time 16s (cold) 9s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated voltage 115/208-230 V
- Insulation Class F
- Voltage 115/208-230 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
