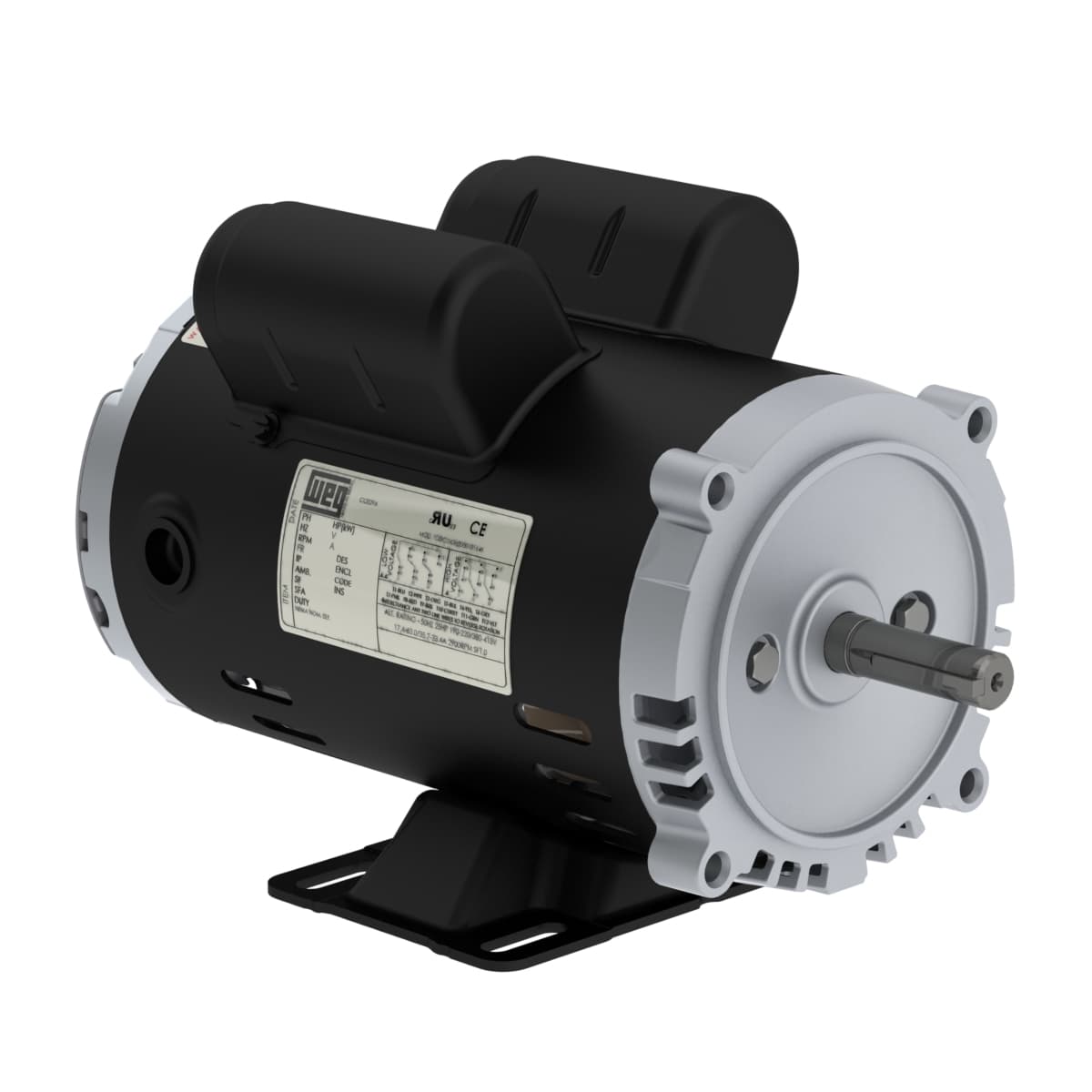

.2536OT1BW56C-S WEG AC Motors
Part#:.2536OT1BW56C-S
Manufacturer:WEG
Alt. Part#:7909492094142
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel 0.25 HP 2P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the .2536OT1BW56C-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.25 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeC
- Rated torque 0.374 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Breakdown torque 310 %
- Design N
- Service factor 1.35 (1.00 @ 208V)
- Terminal box¹ Without Terminal Box
- Frequency 60 Hz
- Temperature rise 80 K
- Mounting F-1
- L. R. Amperes 22.0/12.1-11.0 A
- Rated voltage 115/208-230 V
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Locked rotor time 32s (cold) 18s (hot)
- Duty Cycle Cont.(S1)
- Output rating 0.25 HP
- Slip 2.50 %
- Locked rotor torque 280 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 17.2 lb
- Frame W56C
- Rated speed 3510 rpm
- LRC 8.8x(Code M)
- Noise level² 56.0 dB(A)
- Flange C
- Output 0.25 HP (0.18 kW)
- Insulation Class F
- Voltage 115/208-230 V
- Number of Poles 2
- No load current 1.00/0.431-0.500 A
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- Rated current 2.50/1.38-1.25 A
- Moment of inertia (J) 0.0211 sq.ft.lb
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .2536OT1BW56C-S Specs
1-year warranty
