.2518ES1BW56C-S WEG AC Motors
Part#:.2518ES1BW56C-S
Manufacturer:WEG
Alt. Part#:7909322588643
Product Lifecycle:Active
Get a quick Quote!

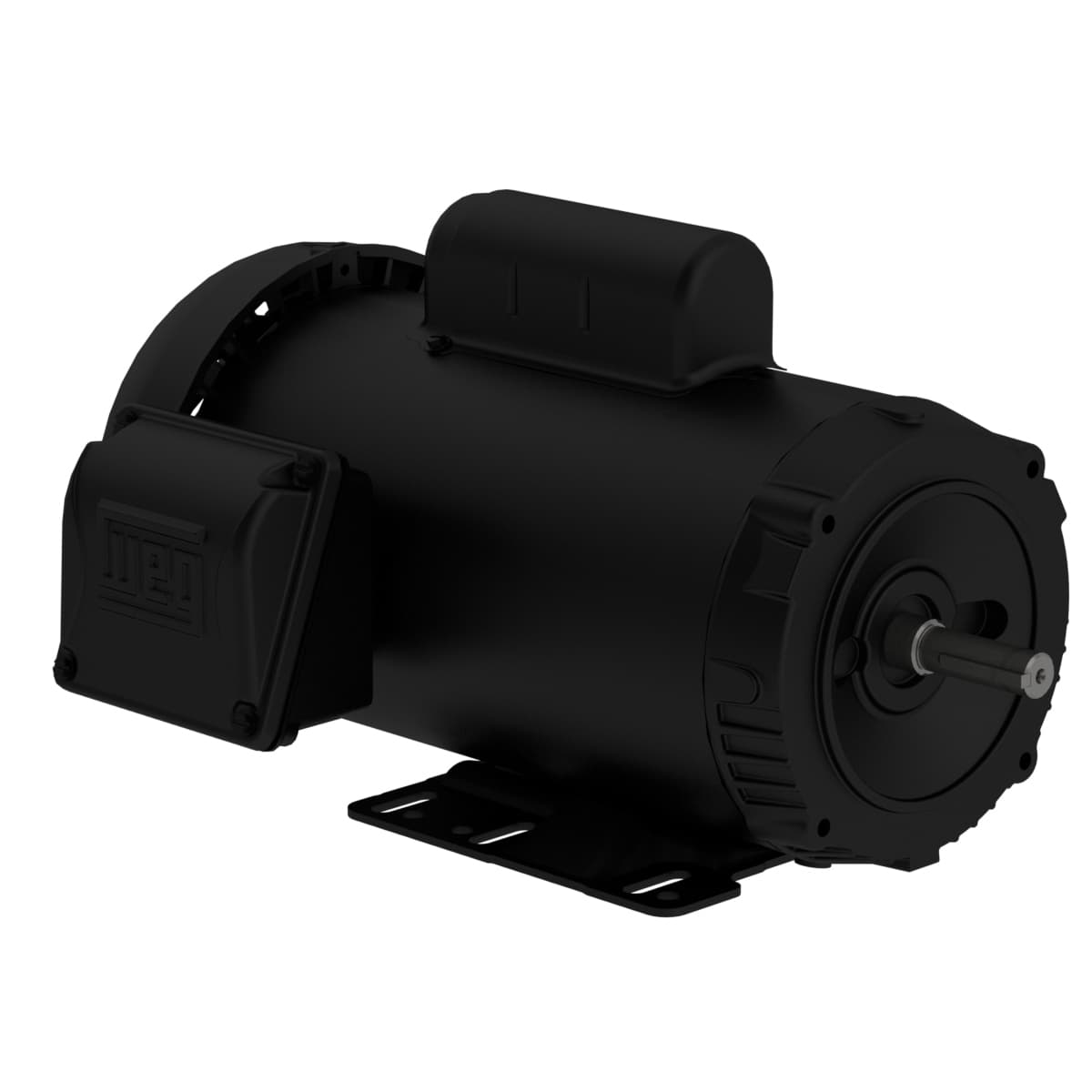

Rolled Steel 0.25 HP 4P W56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the .2518ES1BW56C-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.25 HP
- Rated Speed1735 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeC
- Rated speed 1735 rpm
- Design N
- Mounting F-1
- Output rating 0.25 HP
- Frame W56C
- No load current 4.00/1.72-2.00 A
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Output 0.25 HP (0.18 kW)
- Temperature rise 80 K
- Noise level² 52.0 dB(A)
- Number of Poles 4
- Breakdown torque 280 %
- Starting Method Direct On Line
- Number of poles 4
- Slip 3.61 %
- Moment of inertia (J) 0.0318 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- L. R. Amperes 24.4/13.5-12.2 A
- Locked rotor torque 310 %
- Voltage 115/208-230 V
- Rated current 4.60/2.54-2.30 A
- Locked rotor time 27s (cold) 15s (hot)
- Altitude 1000 m.a.s.l.
- Flange C
- Rated voltage 115/208-230 V
- Rated torque 0.757 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 5.3x(Code N)
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 17.0 lb
