LC2D18BL Schneider Electric Industrial Automation Components

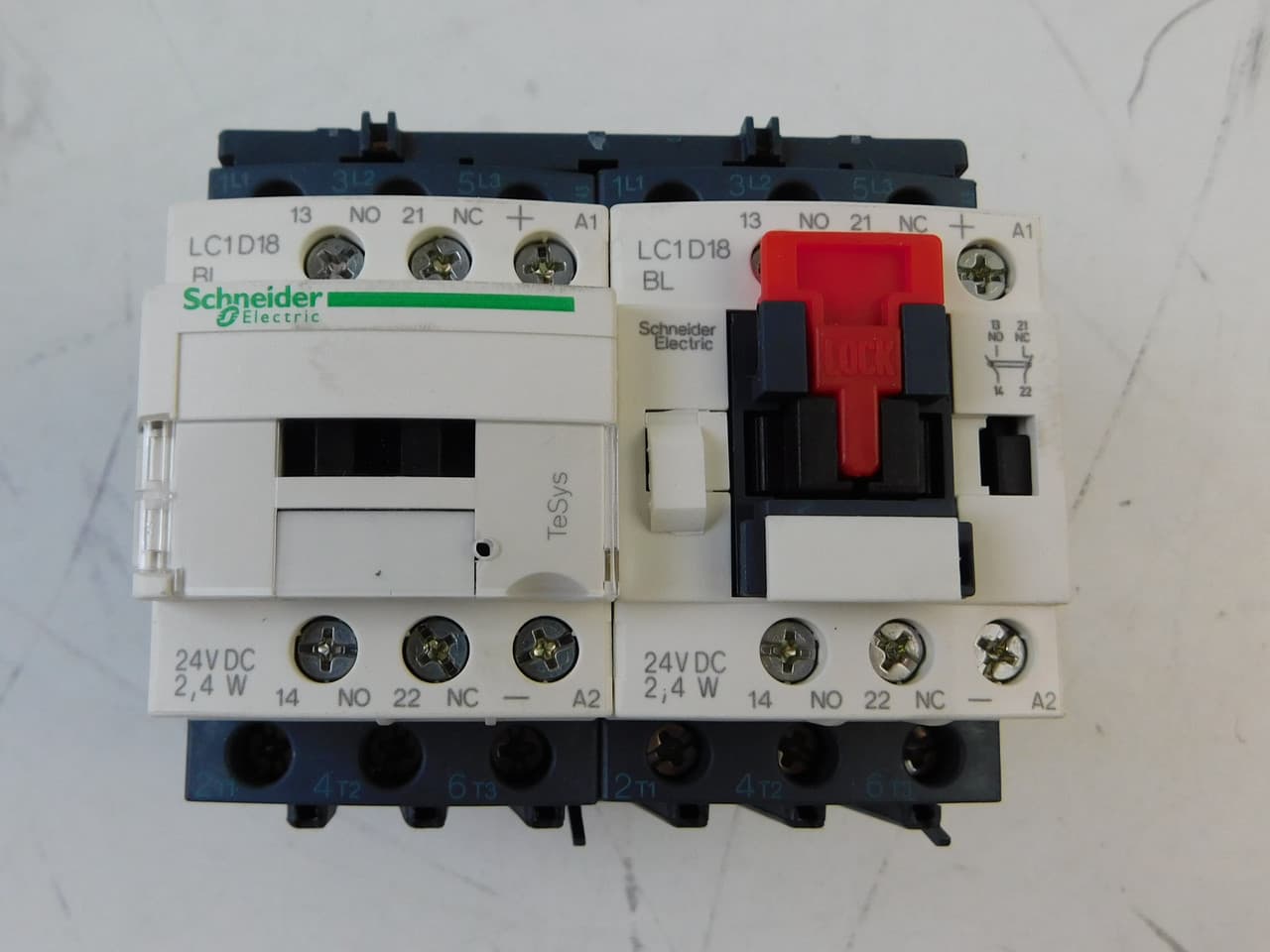

Schneider Electric LC2D18BL Schneider Electric LC2D18BL is a pre-assembled reversing magnetic contactor from the Deca sub-range, designed with a low-consumption coil that consumes less than 2.4W. It features a mechanical interlock and screw connections for secure installation. This contactor has 2 x 3-poles (2x3P; 2x3NO) and is rated for a current of 32A under AC-1 conditions and 18A at 440Vac under AC-3 conditions. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 19.2-30Vdc, with a nominal 24Vdc. The rated operating voltage (Ue) is up to 690 V. It includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+1NC instantaneous auxiliary contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 4kW at 220-230Vac to 10kW at 660-690Vac under AC-3 conditions. The rated power in horsepower (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase, according to UL/CSA standards. The phase-to-phase rated voltage (AC) is 690 V.
Schneider Electric

Part#:LC2D18BL

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric LC2D18BL is a pre-assembled reversing magnetic contactor from the Deca sub-range, designed with a low-consumption coil that consumes less than 2.4W. It features a mechanical interlock and screw connections for secure installation. This contactor has 2 x 3-poles (2x3P; 2x3NO) and is rated for a current of 32A under AC-1 conditions and 18A at 440Vac under AC-3 conditions. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 19.2-30Vdc, with a nominal 24Vdc. The rated operating voltage (Ue) is up to 690 V. It includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+1NC instantaneous auxiliary contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 4kW at 220-230Vac to 10kW at 660-690Vac under AC-3 conditions. The rated power in horsepower (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase, according to UL/CSA standards. The phase-to-phase rated voltage (AC) is 690 V.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the LC2D18BL Schneider Electric price in the box on the right side or send a quick quote.

Product Details

  • UPC:
    389110541673
  • Enclosure:
    IP20
  • Approval:
    UL
  • Series:
    LC2D
  • Amps:
    18 A at 440 Volt AC (AC-3)
  • Shipping Width:
    4.00 In.
  • Power/Voltage:
    1 HP at 115 Volt AC 60 Hertz 1-Phase
  • Coil Voltage:
    24 VDC
  • Type:
    Reversing
  • Shipping Height:
    5.00 In.
  • Mounting:
    Rail
  • Construction Standard:
    IEC
  • Shipping Length:
    6.00 In.
  • Poles:
    3
  • Shipping Weight:
    2.55 lbs.
  • Auxiliary Contact:
    1NO-1NC

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents LC2D18BL Specs

LC2D18BL DataSheet.pdf
LC2D18BL InstallationOperator.pdf
