LC1F265M7 Schneider Electric Electronic Components
Part#:LC1F265M7
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

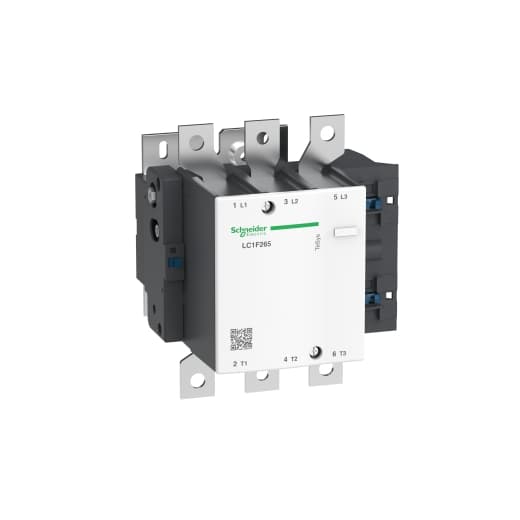

Schneider Electric LC1F265M7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration and supports ring-lugs/bar connections. The contactor is rated for currents of 350A under AC-1 conditions and 265A at 440Vac under AC-3 conditions. It operates with a control voltage (AC) range of 187-242Vac (220Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model does not include normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltage (Uimp) up to 8 kV and supports rated active power (kW) of 75kW at 220-230Vac, 132kW at 380-400Vac, 140kW at both 415Vac and 440Vac, 160kW at both 500Vac and 660-690Vac, and 147kW at 1000Vac, all under AC-3 conditions. The mechanical durability of the LC1F265M7, at no load, is rated for 10,000,000 operations, and it is designed for phase-to-phase rated voltage (AC) applications up to 1000 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1F265M7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Poles Description 3P
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Mounting Support Plate
- Heat Dissipation 8 W
- Compatibility Code LC1F
- Product Name TeSys F
- [Ith] Conventional Free Air Thermal Current 350 A 104 °F (40 °C)
- Power Pole Contact Composition 3 NO
- Motor Starter Type Direct on-line contactor
- Average Impedance 0.3 mOhm - Ith 350 A 50 Hz
- Hold-In Power Consumption In VA 10 VA 40...400 Hz 0.9 68 °F (20 °C))
- Range TeSys
- Maximum Operating Rate 2400 cyc/h 131 °F (55 °C)
- Product Or Component Type Contactor
- Overvoltage Category III
- [Uc] Control Circuit Voltage 220 V AC 40...400 Hz
- Device Short Name LC1F
- Rated Breaking Capacity 2120 A IEC 60947-4-1
- Mechanical Durability 10 Mcycles
- Contactor Coil Voltage 220 V AC standard
- Inrush Power In VA 650 VA 40...400 Hz 0.9 68 °F (20 °C))
- Power Dissipation Per Pole 37 W AC-1 21 W AC-3
- Control Circuit Voltage Limits Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 40...400 Hz 131 °F (55 °C))
- [Ie] Rated Operational Current 350 A 104 °F (40 °C)) <= 440 V AC AC-1 265 A 131 °F (55 °C)) <= 440 V AC AC-3
- Contactor Application Motor control Resistive load
- Associated Fuse Rating 315 A aM <= 440 V 400 A gG <= 440 V
- [Ue] Rated Operational Voltage <= 1000 V AC 50/60 Hz <= 460 V DC
- Operating Time 40...65 ms closing 100...170 ms opening
- Tightening Torque Control circuit 10.62 lbf.in (1.2 N.m) Power circuit 309.78 lbf.in (35 N.m)
- [Ui] Rated Insulation Voltage 1000 V IEC 60947-4-1 1500 V VDE 0110 group C
- Utilisation Category AC-4 AC-1 AC-3
- Connections - Terminals Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
- Motor Power Range 55…100 kW 200…240 V 3 phase 110…220 kW 480…500 V 3 phase 110…220 kW 380…440 V 3 phase
- Standards JIS C8201-4-1 IEC 60947-4-1 EN 60947-1 IEC 60947-1 EN 60947-4-1
- [Icw] Rated Short-Time Withstand Current 2200 A 104 °F (40 °C) - 10 s 1230 A 104 °F (40 °C) - 30 s 950 A 104 °F (40 °C) - 1 min 620 A 104 °F (40 °C) - 3 min 480 A 104 °F (40 °C) - 10 min
- Motor Power Kw 132 kW 380...400 V AC 50/60 Hz AC-3) 140 kW 415 V AC 50/60 Hz AC-3) 140 kW 440 V AC 50/60 Hz AC-3) 160 kW 500 V AC 50/60 Hz AC-3) 160 kW 660...690 V AC 50/60 Hz AC-3) 147 kW 1000 V AC 50/60 Hz AC-3) 75 kW 220...230 V AC 50/60
- Product Certifications RINA RMRoS CSA CB UL BV ABS LROS (Lloyds register of shipping) DNV UKCA
