EDB24060 Schneider Electric Industrial Automation Components
Part#:EDB24060
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

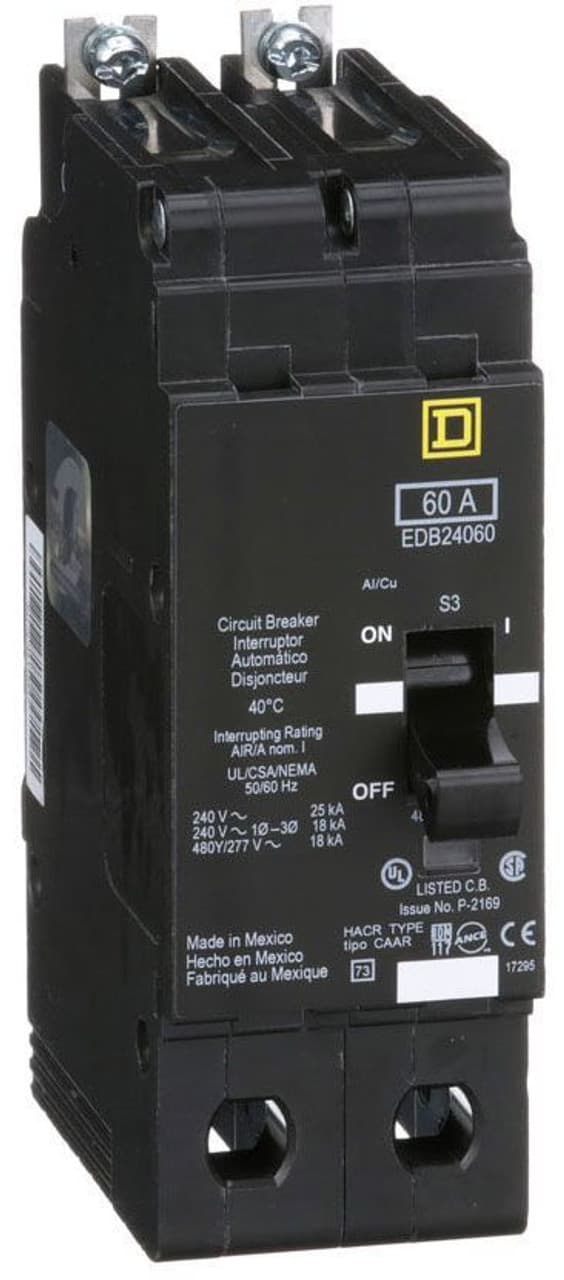

Square D by Schneider Electric EDB24060 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB serves as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It offers short-circuit and overload protection functions, utilizing an aluminium lugs connection. The EDB24060 is rated for a current of 60A and is a 2 Pole device, accommodating a cross-section of 12-2/0AWG. It has a short circuit breaking rating of 25kA at 120Vac and 240Vac, and 18kA at 480Y/277Vac. The trip unit is of a thermal-magnetic type with protection settings featuring a trip unit rating of 1800A.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the EDB24060 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Trip Unit Rating 2300 A
- Number Of Spaces Required 3
- Mounting Mode Bolt-on
- Width 3.92 in (99.57 mm)
- Local Signalling Trip indicator
- Height 5.66 in (143.76 mm)
- Maximum Operating Voltage 480Y/277 V AC
- Range Of Product 125 A Frame EDB-EGB-EJB
- Circuit Breaker Application HACR rated
- Trip Unit Technology Thermal-magnetic
- Product Or Component Type Miniature circuit-breaker
- Electrical Connection Lugs aluminium
- Breaking Capacity Code D
- Number Of Poles 3
- Module Type E-Frame
- Product Destination NF panelboard
- Device Short Name EDB
- Depth 4.05 in (102.87 mm)
- Holding Current 1000 A
- Line Rated Current 100 A
- Number Of Spaces 3
- Net Weight 4 lb(US) (1.81 kg)
- UPC: 78590187909
- TS PIK: 109594539
- Shipping Length: 10.00 In.
- Shipping Weight: 2.50 lbs.
- Shipping Height: 4.00 In.
- Shipping Width: 6.00 In.
- Protection Type Overload Short-circuit
- Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
- AWG Gauge AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
- Breaking Capacity 18 kA 277 V AC 25 kA 240 V AC 18 kA 480Y/277 V AC 25 kA 120 V AC 25 kA 120/240 V AC
