D224NRB Schneider Electric Industrial Automation Components

Schneider Electric D224NRB Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

Schneider Electric

Part#:D224NRB

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

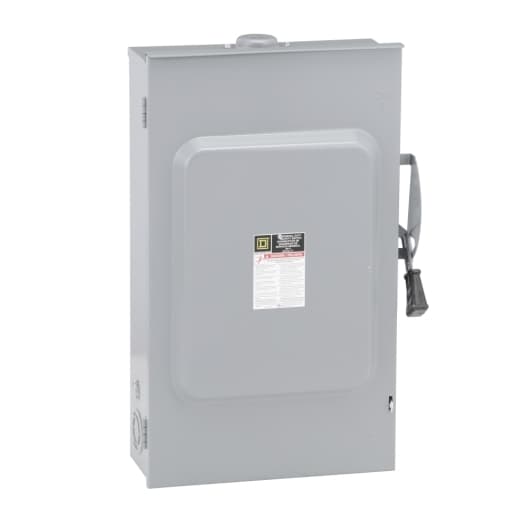

Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the D224NRB Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Depth
8.5 in (215.90 mm)
Current Rating
200 A
Fuse Type
H, K or R
Device Application
Residential
Mounting Type
Surface
Number Of Poles
2
Tightening Torque
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil)
Disconnect Type
Fusible disconnect switch
Wire Size
AWG 6...250 kcmil aluminium/copper
Net Weight
53.51 lb(US) (24.27 kg)
Factory Installed Neutral
Neutral (factory installed)
Electrical Connection
Lugs
Phase
3 phase
Product
Single Throw Safety Switch
Duty Rating
General duty
Enclosure Rating NEMA
NEMA 3R
Width
19 in (482.60 mm)
Height
29.25 in (742.95 mm)
Voltage Rating
240 V AC
Short Circuit Current Rating
100 kA maximum depending on fuse H, K or R

Wiring Configuration

3-wire

Maximum Horse Power Rating

15 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 25 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 60 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents D224NRB Specs

D224NRB Instruction Sheet-1631035015006.pdf

D224NRB Catalog-1631035015013.pdf

D224NRB Product Datasheet-1631035015021.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Schneider Electric

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Schneider Electric Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Schneider Electric Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Schneider Electric, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Relevant products

LC1D806BD Part Image. Manufactured by Schneider Electric.

LC1D806BD

Verified stock: 0

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

MH30703P17F2200

Verified stock: 0

Schneider Electric MH30703P17F2200 is an AC servo motor characterized by a 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 16ppr SinCos encoder, a parallel key shaft, a holding brake, and triple motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection type is a rotatable right-angled connector, and it supports a supply voltage range of 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This part falls under the servo motors sub-range, offers a degree of protection of IP65, and utilizes the HIPERFACE communication protocol. It has a rotational speed of 5000rpm, a stall torque of 3.4Nm, a rated active power of 1.3kW or 1300W, a moment of inertia of 4kg.cm2, a rated power of 1.8HP, a nominal torque of 2.3Nm, and a maximum torque of 10.2Nm.

Schneider Electric

MH30702P06F2200

Verified stock: 0

Schneider Electric MH30702P06F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and designed for operation within an ambient air temperature range of -20 to +40°C. This motor features an absolute single-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and double motor stacks that are optimized for torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for connectivity and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. As part of the Servo motors sub-range, it offers a degree of protection of IP65 and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 5500rpm, a stall torque of 2.5Nm, and is rated at 1.2kW (1200W) or 1.6HP in terms of active and rated power, respectively. It has a moment of inertia of 3.3kg.cm2, with a nominal torque of 1.9Nm and a maximum torque capability of 7.4Nm.

Schneider Electric

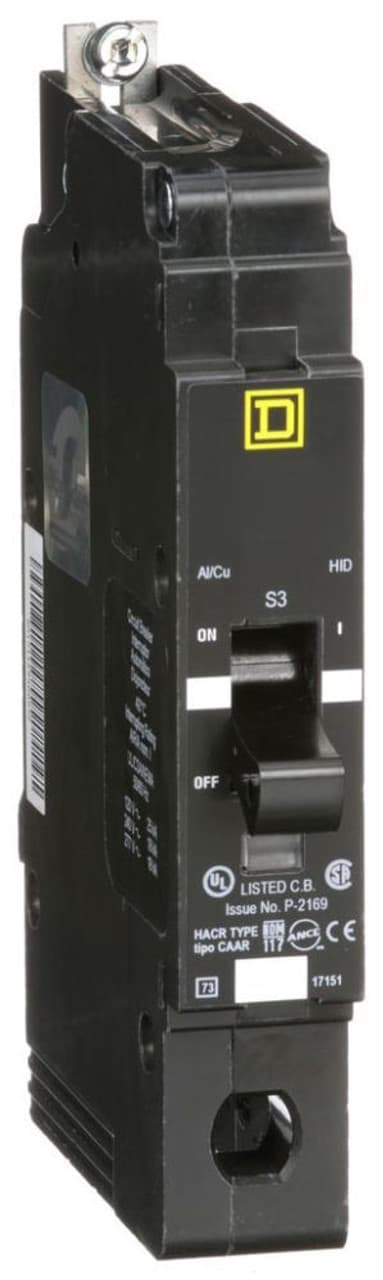

EDB14030 Part Image. Manufactured by Schneider Electric.
