BJL26015 Schneider Electric Industrial Automation Components

Name: BJL26015
Brand: Schneider Electric

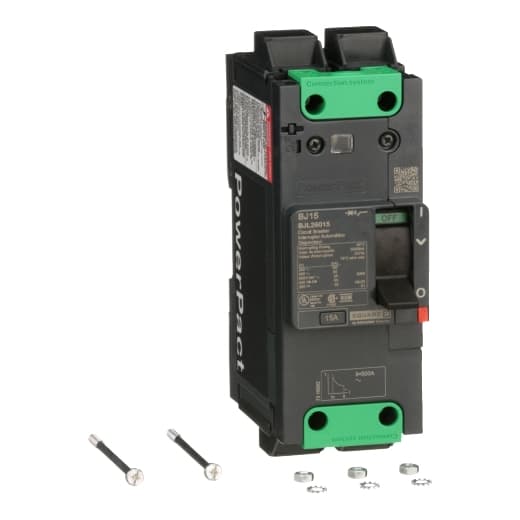

Schneider Electric BJL26015 Square D by Schneider Electric BJL26015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 15A 600Y/347Vac 25kA design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes Everlink (Creep compensating) lugs for connections on both line and load sides, offering a degree of protection of IP40. The rated current is 15A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Its protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 15 AT. The electrical durability with load is rated at 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies, with 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, and 25kA at 600Y/347Vac under UL489 standards, and 50kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

Part#:BJL26015

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Square D by Schneider Electric BJL26015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 15A 600Y/347Vac 25kA design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes Everlink (Creep compensating) lugs for connections on both line and load sides, offering a degree of protection of IP40. The rated current is 15A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Its protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 15 AT. The electrical durability with load is rated at 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies, with 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, and 25kA at 600Y/347Vac under UL489 standards, and 50kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the BJL26015 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Control Type
Toggle
Suitability For Isolation
Yes IEC 60947-2
Depth
3.15 in (80 mm)
Breaking Capacity Code
J
Mechanical Durability
20000 cycles IEC 947-1 Annex K ed 5.2
Net Weight
1.70 lb(US) (0.769 kg)
Color
Grey (RAL 7016)
Range
PowerPact
[Ui] Rated Insulation Voltage
800 V IEC 60947-2
Utilisation Category
Category A
Number Of Poles
2P
Trip Unit Technology
Thermal-magnetic
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz UL 489
Device Application
Distribution
Line Rated Current
15 A
Connection Pitch
1.06 in (27 mm)
Power Wire Stripping Length
0.79 in (20 mm)
Product Name
PowerPact B
Continuous Current Rating
80 %
9 Mm Pitches
6

Device Short Name

BJ 015

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Height

5.39 in (137 mm)

Product Or Component Type

Circuit breaker

Electrical Durability

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Width

2.13 in (54 mm)

Quantity Per Set

Set of 1

Local Signalling

for presence of auxiliary contacts flag (green)

AWG Gauge

AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Mounting Mode

Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)

Electrical Connection

Everlink lug line Everlink lug load

Tightening Torque

44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)

Number Of Slots

1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)

[Ics] Rated Service Breaking Capacity

100 kA 220...240 V AC 50/60 Hz IEC 60947-2 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 65 kA 440 V AC 50/60 Hz IEC 60947-2

Breaking Capacity

100 kA 208Y/120 V AC 50/60 Hz UL 489 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480/277 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600Y/347 V AC 50/60 Hz UL 489 50 kA 250 V DC UL 489

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Relevant products

BJL26040LU

Verified stock: 0

Square D by Schneider Electric BJL26040LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 40A 600Y/347Vac design with a 25kA rating and lugs with control wire on the end rated at 80%. It has an Everlink (Creep compensating) connection type with lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB offers an IP40 degree of protection, a rated current of 40A, and a rated voltage of 600Vac 600Y/347Vac. It is designed for 20000 operations of mechanical durability at no load and can be mounted on a DIN rail or as an individual unit on a plate. The device has 2 poles (2P), dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and offers protection settings including over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage for DC applications is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Its protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 40 AT. The electrical durability with load is rated for 10000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, offering 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BJL26125LU

Verified stock: 0

Square D by Schneider Electric BJL26125LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 125 TMD 2P design. It has a rated current of 125A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. It offers a degree of protection of IP40 and is designed for mounting either fixed on DIN rail or as an individual unit mount on plate. This 2-pole (2P) circuit breaker has a net height of 137 mm, a net depth of 80 mm, and a net width of 54 mm. It is categorized under utilisation category A. The protection settings include over-current fixed at 125A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. It features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 125 AT. The electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a mechanical durability of 20,000 operations at no load. The frame current rating is 125 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, including 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, and 25kA at 600Y/347Vac under UL489 standards, with a 50kA rating at 250Vdc. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BJL26110

Verified stock: 0

Square D by Schneider Electric BJL26110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 125 TMD 2P 110A design for 600Y/347Vac with a 25kA short circuit breaking rating and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV, connection type of Everlink lugs, and offers a degree of protection of IP40. The rated current is 110A, with a rated voltage (AC) of 600Vac 600Y/347Vac, and it has a mechanical durability of 20000 operations. This MCCB can be mounted on a DIN rail or as an individual unit on a plate, features 2 poles (2P), and has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A, with protection settings including over-current fixed at 110A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V, and a rated operating voltage (Ue) of 690 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 110 AT. Its electrical durability with load is rated for 10000 operations at 440Vac; In, and it has a frame current rating of 125 AF. The operating mode is toggle (manual), and the trip unit type is Thermal-Magnetic (fixed) without a display.

Schneider Electric

BJL26045

Verified stock: 0

Square D by Schneider Electric BJL26045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 45A design for 600Y/347Vac with a 25kA short circuit breaking rating and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV, IP40 degree of protection, and supports a rated current of 45A with a rated voltage (AC) of 600Vac 600Y/347Vac. This MCCB offers mechanical durability of 20,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It features 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A, and it includes protection settings for over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 45 AT. Its electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and the trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BJL26020LU

Verified stock: 0

Square D by Schneider Electric BJL26020LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 20A 600Y/347Vac 25kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB has a rated impulse voltage (Uimp) of 8 kV, offers IP40 protection, and supports a rated current of 20A with a rated voltage (AC) of 600Vac 600Y/347Vac. It is designed for fixed mounting on a DIN rail or as an individual unit mount on a plate, featuring 2 poles (2P) and dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The BJL26020LU operates with a rated insulation voltage (Ui) of 800 V, a rated operating voltage (Ue) of 690 V, and includes thermal and magnetic protection functions for over-current and short-circuit conditions, with a trip current rating of 20 AT. Its mechanical durability is rated at 20,000 operations at no load, and its electrical durability at 10,000 operations with load (440Vac; In). The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac for UL489 standards, and 50kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BJL26030LU

Verified stock: 0

Square D by Schneider Electric BJL26030LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 30A 600Y/347Vac 25kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and a rated current of 30A. It operates at a rated voltage (AC) of 600Vac 600Y/347Vac, with a mechanical durability of 20,000 operations when not under load. The BJL26030LU can be mounted on a DIN rail or individually mounted on a plate, features 2 poles (2P), and has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A, with protection settings including over-current fixed at 30A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Its protection functions encompass thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 30 AT. The electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and the short circuit breaking rating includes 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BJL26035LU

Verified stock: 0

Square D by Schneider Electric BJL26035LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 35A 600Y/347Vac 25kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB offers a degree of protection of IP40 and has a rated current of 35A with a rated voltage of 600Vac 600Y/347Vac. It is designed for fixed mounting on DIN rail or individual unit mount on a plate and has 2 poles (2P). The net dimensions are 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features over-current protection fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage for DC applications is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 35 AT. The electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BJL26050

Verified stock: 0

Square D by Schneider Electric BJL26050 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 50A 600Y/347Vac 25kA design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes Everlink (Creep compensating) lugs for connections on both line and load sides, offering a degree of protection of IP40. The rated current is 50A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 2-pole (2P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features protection settings for over-current fixed at 50A, short-circuit hold current fixed at 480A, and short-circuit trip current fixed at 720A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. Protection functions include thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 50 AT. Its electrical durability with load is rated at 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric
