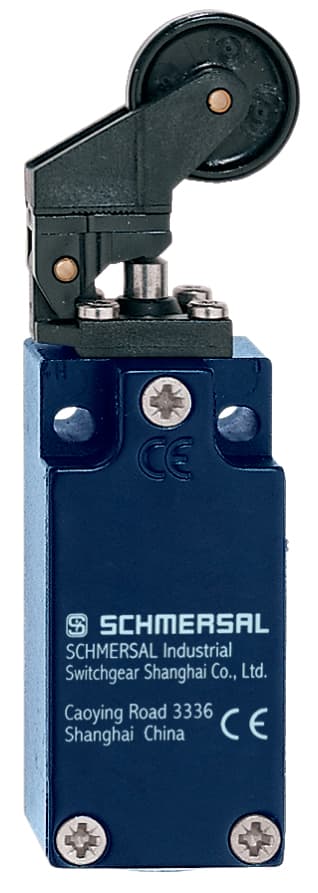

ZK4 235-02Z Schmersal Electronic Components
Part#:ZK4 235-02Z
Manufacturer:Schmersal
Alt. Part#:101149553
Product Lifecycle:Active
Get a quick Quote!
Position switch; 235; Snap action with constant contact pressure up to switching point; 1 Cable entry M 20 x 1.5; Metal enclosure; Wide range of alternative actuators; Good resistance to oil and petroleum spirit; 30 mm x 63,5 mm x 30 mm; Actuator heads ca
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the ZK4 235-02Z Schmersal price in the box on the right side or send a quick quote.
Product Details
- Housing construction form Norm construction design
- Positive break force, minimum 16 N
- Height of sensor 107 mm
- Gross weight 159 g
- Actuating speed, minimum 56 mm/min
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Mechanical life, minimum 20,000,000 Operations
- Ambient temperature, minimum -30 °C
- Length of sensor 30 mm
- Material of the contacts, electrical Silver
- Number of safety contacts 2
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Rated insulation voltage Ui 250 V
- Switching principle Snap switch element
- Enclosure material Zinc die-cast, paint finish
- Cable section, minimum 0.75 mm²
- Width of sensor 32 mm
- Switchover time, maximum 5.5 ms
- Safety functions Yes
- Actuating speed, maximum 1 m/s
- Ambient temperature, maximum +80 °C
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Terminal Connector Screw terminals M20 x 1.5
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Utilisation category AC-15 4 A
- Switching frequency 5,000 /h
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Thermal test current 10 A
- Bounce duration, maximum 3 ms
- Switching element Opener (NC)
- Actuating element Angle roller lever
- Actuating force, minimum 6 N
- Cable section, maximum 2.5 mm²
- Rated impulse withstand voltage Uimp 6 kV
- Utilisation category DC-13 1 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents ZK4 235-02Z Specs
