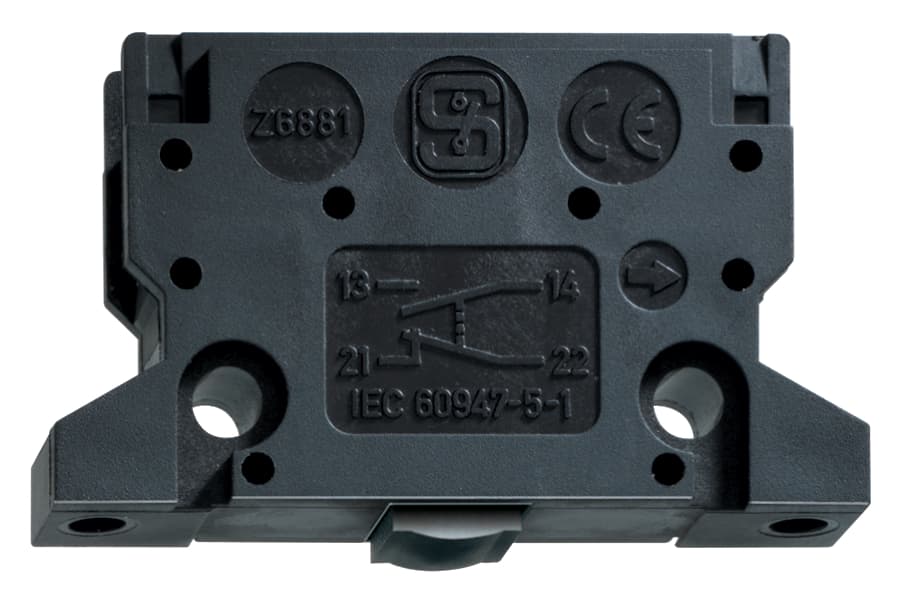

Z 6881-11-1-80R-I Schmersal Electronic Components
Part#:Z 6881-11-1-80R-I
Manufacturer:Schmersal
Alt. Part#:101167941
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
Micro switches; screw or spade terminals; Thermoplastic enclosure
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the Z 6881-11-1-80R-I Schmersal price in the box on the right side or send a quick quote.
Product Details
- Actuating force 12 N
- Ambient temperature, minimum -30 °C
- Ambient temperature, maximum +85 °C
- Switching principle Snap action
- Enclosure material Glass-fibre, reinforced thermoplastic
- Mechanical life, minimum 1,000,000 Operations
- Degree of protection IP40
- Material of the actuator Thermoplastic
- Actuating speed, minimum 1 mm/min
- Switchover time, maximum 5 ms
- Contact opening > 2 x 1.25 mm
- Cable section, maximum 2 x 1.5 mm²
- Bounce duration, maximum 3 ms
- Utilisation category DC-13 6 A
- Material of the contacts, electrical Gold-plated silver
- Actuating speed 1 mm/min
- Rated impulse withstand voltage Uimp 4 kV
- Thermal test current 10 A
- Standards IEC/EN 60947-5-1
- Number of shutters 1
- Degree of protection of clips or terminals IP00 (without connector)
- Utilisation category AC-15 2.5 A
- Gross weight 45 g
- Number of openers 1
- Rated insulation voltage Ui 250 V
- Terminal (mechanical) Screw connection
- Repeat accuracy of switching points 0.02
- Degree of pollution to VDE 0100 3
- Switching frequency 10,000 /h
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents Z 6881-11-1-80R-I Specs
1-year warranty
