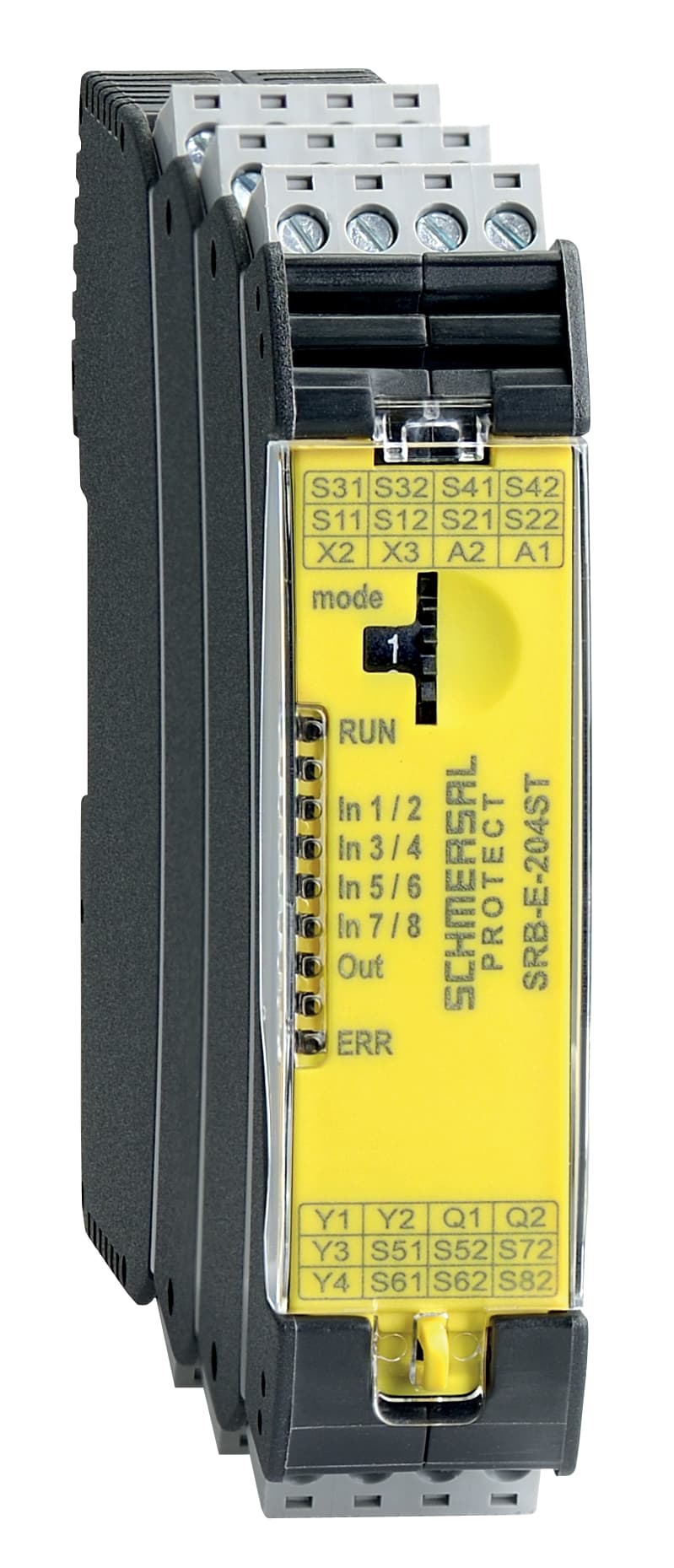

SRB-E-204ST Schmersal Safety Controllers
Part#:SRB-E-204ST
Manufacturer:Schmersal
Alt. Part#:103009973
Product Lifecycle:Active
Get a quick Quote!
SRB-E-204ST Schmersal - Input expanders; Multifunctional; Plug-in screw terminals with coding; STOP 0 Function; Monitoring of 4 sensors; Start button / Auto-start; 2 Safety outputs; 4 Signalling outputs
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Controllers that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB-E-204ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 150 g
- Feedback circuit Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Restistance to shock 30 g / 11 ms
- Pull-in delay at RESET, typically 150 ms
- EMC rating EMC-Directive
- Climatic stress EN 60068-2-78
- Wire breakage detection Yes
- Number of LEDs 7
- Number of fail-safe outputs, Stop 0 2
- Depth 115 mm
- Stop-Category 0
- Removable Terminals Yes
- Start input Yes
- Integral System Diagnostics, status Yes
- Electronic Fuse Yes
- Automatic reset function Yes
- Number of shutters 4
- Cable section, maximum 2.5 mm²
- Height 98 mm
- Rated impulse withstand voltage Uimp 0.8 kV
- Pull-in delay at automatic start, maximum, typically 150 ms
- Current, Utilisation category DC12 0.1 A
- Standards EN ISO 13849-1, EN 60947-5-1, EN 60204-1
- Earth connection detection Yes
- Number of signalling outputs 4
- Degree of protection of the enclosure IP40
- Storage and transport temperature, minimum -40 °C
- Operating current 125 mA
- Voltage drop Ud, maximum 0.5 V
- Short-circuit recognition Yes
- Reset edge detection Yes
- Tightening torque of Clips 0.5 Nm
- Storage and transport temperature, maximum +85 °C
- Rated operating voltage 24 VDC -20%/+20%, residual ripple max. 10%
- Drop-out delay in case of power failure, typically 10 ms
- Conduction resistance, maximum 40 Ω
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Integral System Diagnostics, error code Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Width 22.5 mm
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Electrical power consumption 3 W
- Terminal Connector Screw connection, plug-in, rigid or flexible
- Ambient temperature, maximum +60 °C
- Switching frequency, maximum 1 Hz
- Current leakage Ir 1 mA
- Cable section, minimum 0.25 mm²
- Degree of protection of clips or terminals IP20
- Overvoltage category III
- Drop-out delay in case of emergency, typically 10 ms
- Voltage, Utilisation category DC13 24 VDC
- Rated control voltage at DC, maximum 28.8 VDC
- Voltage, Utilisation category DC12 24 VDC
- Number of openers 8
- Degree of pollution to IEC/EN 60664-1 2
- Rated AC voltage for controls at DC minimum 19.2 VDC
- Current, Utilisation category DC13 2 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SRB-E-204ST Description
SRB-E-204ST Schmersal - Input expanders; Multifunctional; Plug-in screw terminals with coding; STOP 0 Function; Monitoring of 4 sensors; Start button / Auto-start; 2 Safety outputs; 4 Signalling outputs
Related documents SRB-E-204ST Specs
