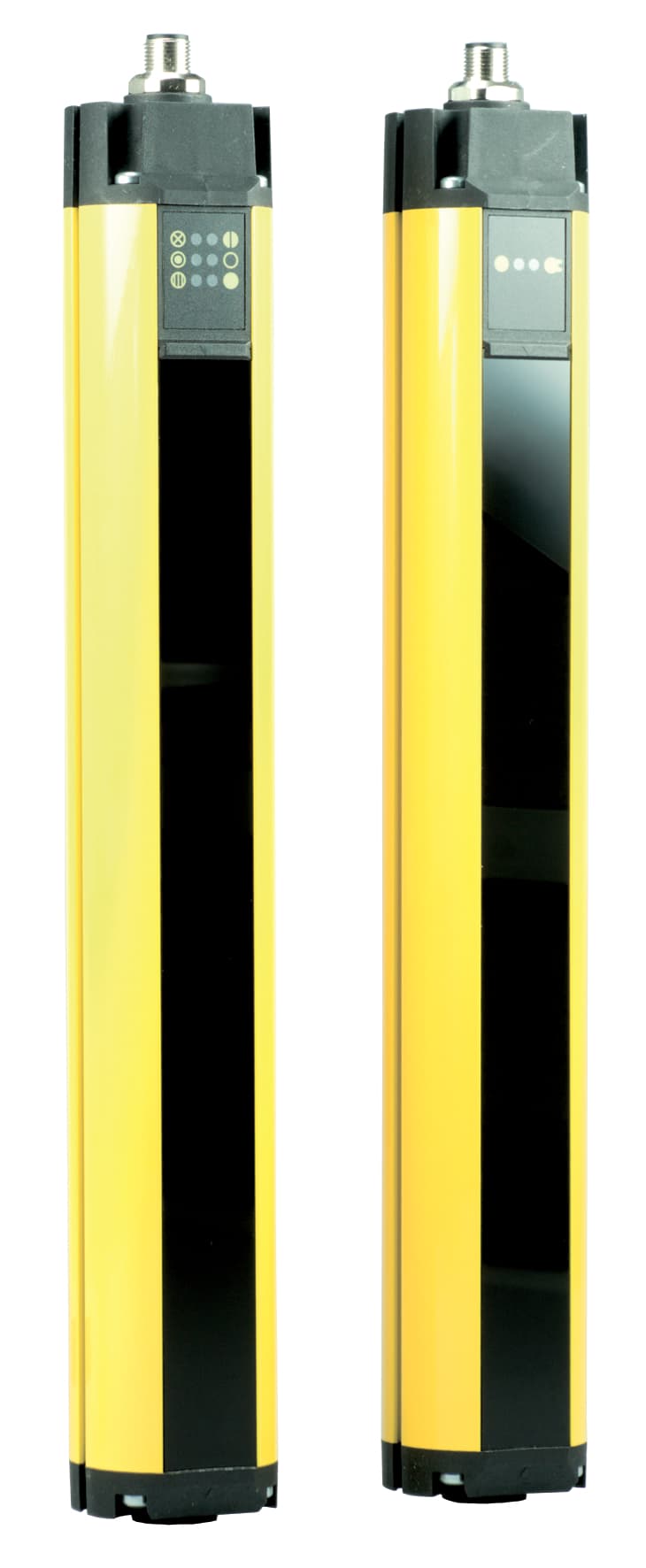

SLC 420-E/R0890-30-RFBM Schmersal Safety Light Curtains
Part#:SLC 420-E/R0890-30-RFBM
Manufacturer:Schmersal
Alt. Part#:101206706
Product Lifecycle:Discontinued
Get a quick Quote!
Safety light curtains, Safety light grids; Safety light curtains; Protection class IP67; Safety type 4 in accordance with IEC 61496-1; Resolution 14, 30 and 50 mm; Protection field height from 170 mm … 1770 mm
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLC 420-E/R0890-30-RFBM Schmersal price in the box on the right side or send a quick quote.
Product Details
- Integral System Diagnostics, status Yes
- Reaction time, maximum 10 ms
- Range, protection field, minimum 300 mm
- Ambient temperature, minimum -10 °C
- Electrical power consumption of the transmitter 4 W
- Hide function Yes
- Terminal Connector Connector
- Storage and transport temperature, maximum +70 °C
- Cascadable Yes
- Range, protection field, maximum 10,000 mm
- Length of the connectable cable, maximum 100 m
- Voltage type DC (direct current)
- Versions p-type
- Gross weight 3,970 g
- Enclosure material Aluminium
- Detection ability for test bodies at v = 1.6 m/s 30 mm
- Degree of protection IP67 to EN 60529
- Switching voltage OSSD, HIGH signal 24 V
- Standards IEC/EN 61496-1/-2
- Number of beams 44
- Wave length of the sensor 880 nm
- Diameter of sensor 49 mm
- Protection rating III
- Output current, (fail-safe output), maximum 0.5 A
- Integral System Diagnostics Yes
- Number of fail-safe digital outputs 2
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Storage and transport temperature, minimum -25 °C
- Beam coding available Yes
- Height of the protection field 890 mm
- Height of sensor 975 mm
- Electrical power consumption of the receiver 8 W
- Master- or Slave-function master
- Restart interlock (manual reset) Yes
- Terminal connector, Recipient Connector plug M12, 8-pole
- Ambient temperature, maximum +50 °C
- Cable length (Master/Slave), maximum 3 m
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SLC 420-E/R0890-30-RFBM Specs
