NDLP30RT Schmersal Indicator Lights
Part#:NDLP30RT
Manufacturer:Schmersal
Alt. Part#:103005366
Product Lifecycle:Active
Get a quick Quote!

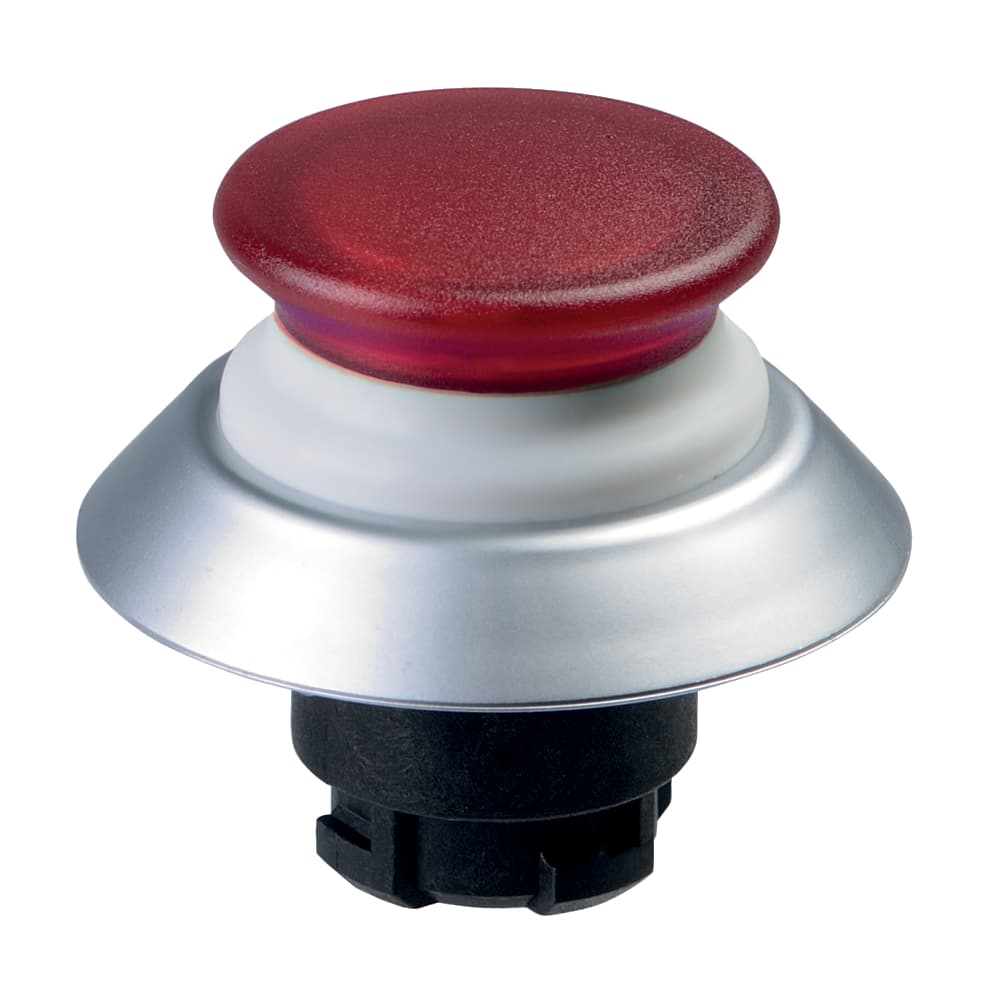

NDLP30RT Schmersal - Illuminated Mushroom Button from N Series (IP69K)
About the manufacturer: Schmersal is one of the manufacturers that offers Indicator Lights that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDLP30RT Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards EN 60947-5-1, IEC/EN 60947-1
- Design Round
- Fully insulated Yes
- Height 20 mm
- Colour of the operating element Red
- Gross weight 36 g
- Mounting Mounting flange EFM
- Ambient temperature, minimum -25 °C
- Sealing type Membrane, Lip gaskets
- Probing possible Yes
- Thickness of the front panel, maximum 6 mm
- Colour of the bellows White
- Actuating stroke 5 mm
- Thickness, of the front panel, minimum 1.5 mm
- Material of the front ring ABS, chrome-plated
- Illuminable Yes
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Material of the bellows Silicone
- Versions round, Mushroom button
- diameters for the actuating heads 30 mm
- Degree of protection IP67, IP69K
- Material of the operators Plastic
- Mounting flange Yes
- Diameter hole 22.3 mm
- Ambient temperature, maximum +80 °C
- Colour of the front ring Silver
- Tightening torque of the screw 0.6 Nm
- Spacing 50 x 50 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
NDLP30RT Description
NDLP30RT Schmersal - Illuminated Mushroom Button from N Series (IP69K)
