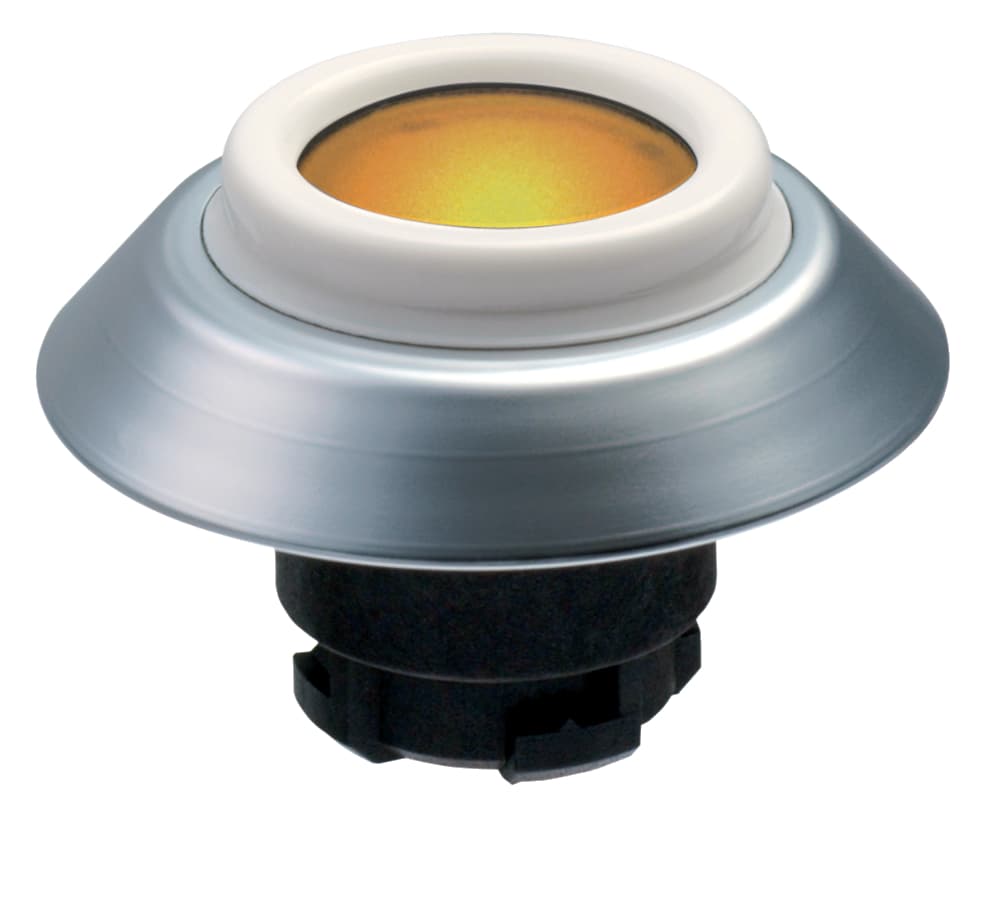

NDLBL/918D Schmersal Pushbuttons
Part#:NDLBL/918D
Manufacturer:Schmersal
Alt. Part#:101192321
Product Lifecycle:Active
Get a quick Quote!
Command and signalling devices; "N" program
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDLBL/918D Schmersal price in the box on the right side or send a quick quote.
Product Details
- Versions Embeddable button - Front plate mounting
- Gross weight 30 g
- Illuminable Yes
- Mounting flange Yes
- Colour of the front ring Silver
- Unlocking without
- Probing possible Yes
- Fully insulated Yes
- Actuating stroke 5 mm
- Mounting Mounting flange ELM
- Tightening torque of the screw 0.6 Nm
- Height 11 mm
- Diameter total 44.5 mm
- Diameter of the front ring 44.5 mm
- Diameter of touch surface 27 mm
- Diameter hole 22.3 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Thickness, of the front panel, minimum 1.5 mm
- Thickness of the front panel, maximum 6 mm
- Spacing 50 x 50 mm
- Degree of protection IP67, IP69K
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +80 °C
- Colour of the bellows White
- Material of the operators ABS
- Colour of the operating element Blue
- Material of the front ring ABS, chrome-plated
- Sealing type Membrane, Lip gaskets
- Design Round
- Standards EN 60947-5-1, IEC/EN 60947-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents NDLBL/918D Specs
