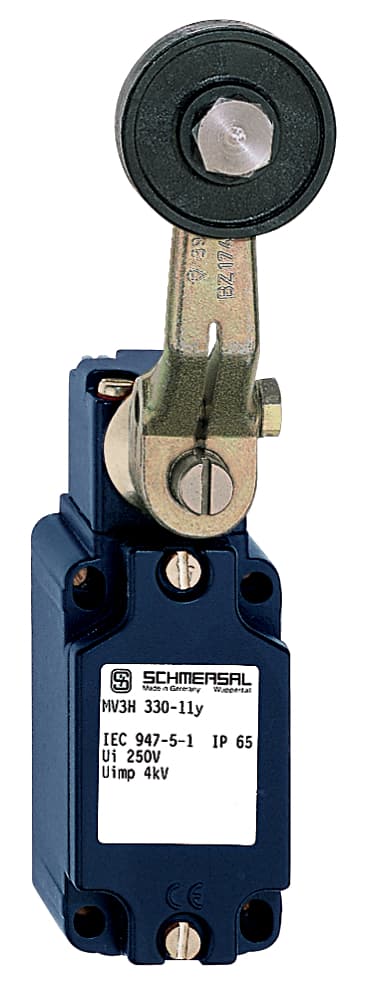

MV3H 330-11Y-RMS-1164 Schmersal Electronic Components
Part#:MV3H 330-11Y-RMS-1164
Manufacturer:Schmersal
Alt. Part#:101116204
Product Lifecycle:Active
Get a quick Quote!
Position switch; light position switches; interlocked shaft and Swivel lever; with brass roller; Metal enclosure; Long life; 40 mm x 76 mm x 40 mm ( basic component); Suitable for low actuating speeds; 1 Cable entry M 20 x 1.5; free of silicon; proved in
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the MV3H 330-11Y-RMS-1164 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure coating material painted
- Actuating torque 0.5 Nm
- Cable section, minimum 1.5 mm²
- Diameter of Castor 37 mm
- Switching element NO contact, NC contact
- Standards EN 60947-5-1
- Repeat accuracy of switching points 0.02
- Length of sensor 40 mm
- Rated impulse withstand voltage Uimp 4 kV
- Enclosure material Light-alloy diecast, paint finish
- Actuating speed, minimum 1 mm/min
- Width of sensor 40 mm
- Utilisation category AC-15 2.5 A
- Slide form Castor
- Terminal Connector Screw connection
- Width of Castor 9 mm
- Thermal test current 6 A
- Material of the contacts, electrical Silver
- Contact opening 2 x 0.5 mm
- Cable section, maximum 2.5 mm²
- Restistance to shock 50 g / 6 ms
- Roller material Plastic
- Number of openers 1
- Height of sensor 175 mm
- Degree of protection IP65 to EN 60529
- Gross weight 380 g
- Actuating element Roller lever
- Wire cross-section 13 AWG
- Ambient temperature, minimum -30 °C
- Note (Switching element) galvanically separated contact bridges
- Active principle mechanical
- Number of shutters 1
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Ambient temperature, maximum +90 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
