6212120 Rittal Electronic Components

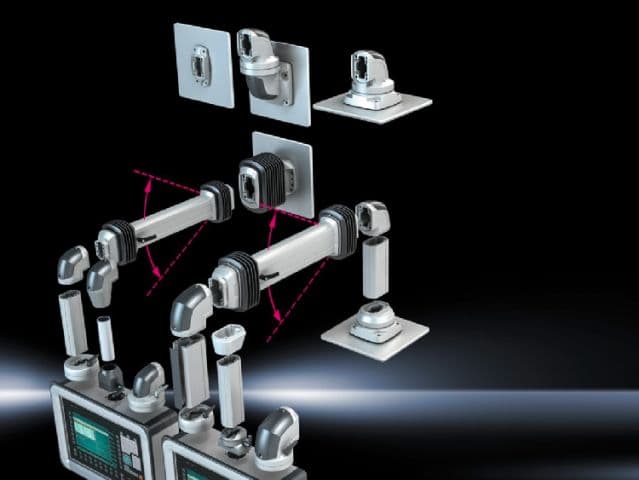

Rittal 6212120 CP support section height-adjustable, CP120/120, for weight range 10-60 kg
Rittal

Part#:6212120

Manufacturer:Rittal

Product Lifecycle:Active

Get a quick Quote!

CP support section height-adjustable, CP120/120, for weight range 10-60 kg

About the manufacturer: Rittal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Rittal is renowned for producing high-quality industrial and IT enclosures, racks, and accessories, along with efficient power management and climate control systems for a range of applications including industrial, data center, outdoor, and hybrid environments.

Check out the 6212120 Rittal price in the box on the right side or send a quick quote.

Product Details

  • Applications
    For tall and short operators, For sitting or standing workstations
  • General color
    RAL 7035
  • Protection category IP to IEC 60 529
    IP 54
  • Wall/machine side
    CP 120
  • Product description
    CP support section height-adjustable, CP120/120, for weight range 10-60 kg
  • Supply includes
    Assembly components
  • Weight range
    10 kg...60 kg
  • Customs tariff number
    73269060
  • Technical specifications
    Cable trough: 43 x 21 mm (W x H), max. connector gland: 59 x 17 mm (W x H), Offers enhanced ergonomics through 600 mm (± 300 mm) adjustment range
  • Note on Model No.:
    Weight range applies to configured housing and vertical support section.
  • Weight/packaging unit
    14.2 kg ( 31.3lb. )
  • Benefits
    Support arm holds in every position, Additional fixing via clamping levers possible, Precise adjustment to the trailing load through an adjusting screw on the front of the support profile, Adjusting screw can be accessed without dismantling any components
  • Color
    RAL 7035
  • Length
    790 mm ( 31" )
  • Material
    Hinge: Cast aluminum, Concertina section: Plastic
  • Packaging unit
    1 pc(s)
  • ETIM 7.0
    EC000882
  • enclosure side
    CP 120
  • EAN
    4028177924345
  • eCl@ss 6.0/6.1
    27189261
  • Note
    In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure., Maximum cross-section for cable
  • ETIM 6.0
    EC000882
  • eCl@ss 8.0/8.1
    27400556

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents 6212120 Specs

6212120 Technical_details_EN.pdf
